CHARACTERISTICS & SPECIFICATIONS

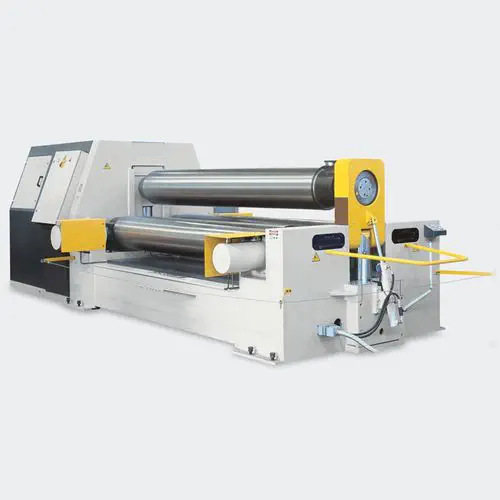

     DESCRIPTION

• High efficiency on heavy plate bending operation
• Reduced overall dimensions and easiness of transportation on medium and big machines
• Having the two bottom rolls horizontally moving, means also a lower working height which requires a smaller foundation pit and less anchoring load (in the smallest models you dont need foundation)
• During production (pre-bending and bending phases), the plate keeps always its horizontal position, so material moves more easily
• The solid construction and the particular geometry of the 3R UHS enable it to be used as a pressbrake bending machine
• The 3R UHS machine can fulfill the best pre-bending on every required diameter
• The possibility to reduce centre-distance between lower rolls realizes a better pre-bending during bending of tubes with small diameter and thickness
• Another important feature of the 3R UHS machine is the operating system of the top forming roll. In fact, the top forming roll can be used as a traditional press brake allowing perfect rerolling and calibration operations of the produced tubes
• In the same way it is also possible to obtain cones with heavy thickness by bending in several strokes the plate
• With some 3 and 4 rolls pyramidal machines it is necessary to tilt the top roll to allow the produced tube removal. On the 3R UHS machine this is not necessary and therefore it is much easier to remove the finished tube
• Large working stroke allows to get best bending result
• Can bend thicker plates compared to equivalent 3 or 4 roll machines
• SAE 1050 (CK 45-50) forged or hot rolled, induction hardened and polished steel rolls
• Double Speed Working system
• Conical Bending device
• Electronic balancing system
