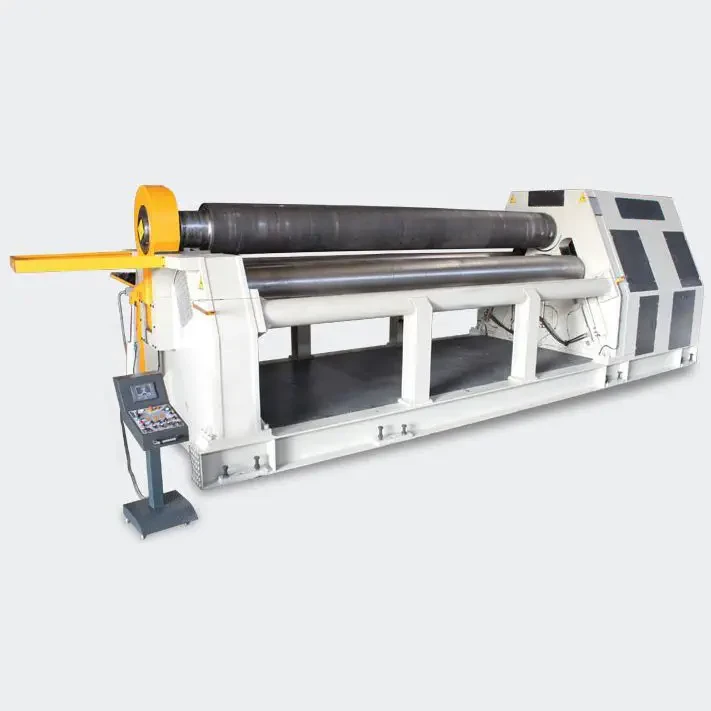

4-Roller Plate Bending Machine 30-320
CHARACTERISTICS & SPECIFICATIONS
| NUMBER OF ROLLERS | : | 4-roller |
| OPERATION | : | Hydraulic |
| SHEET THICKNESS | : | Min.: 8 mm (0.3 in) | Max.: 85 mm (3.3 in) |
| SHEET WIDTH | : | 3 m (9’10”) |
| OTHER CHARACTERISTICS | : | CNC, 2-speed |
DESCRIPTION
- Very suitable for medium and heavy plates or stainless steel bending

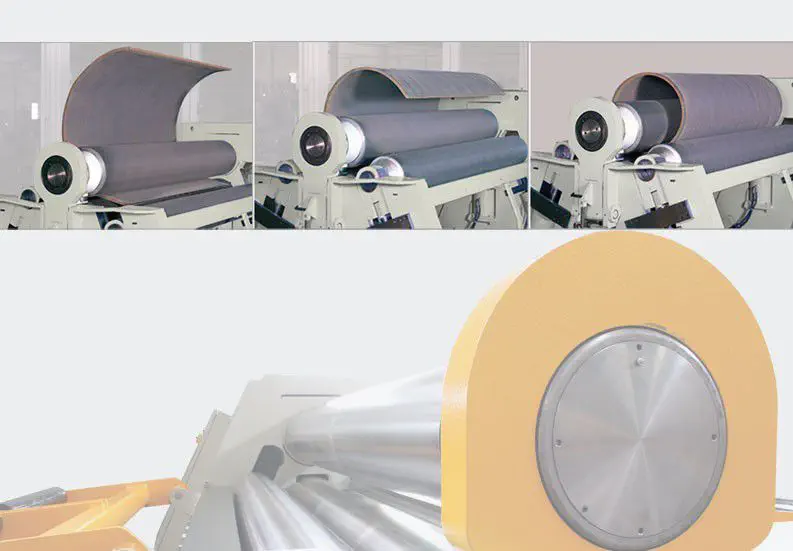

- Ferrules in full circle, elliptical or varying radiuses can be done easily
- Pinch roll and lateral rolls move pyramidal linear with hydraulic pistons
- Overload Protection
- Top Roll and Lateral Rolls are powered by hydromotor and planetary gearbox (3 roll driven system)
- Three digital readouts for easy roll positioning

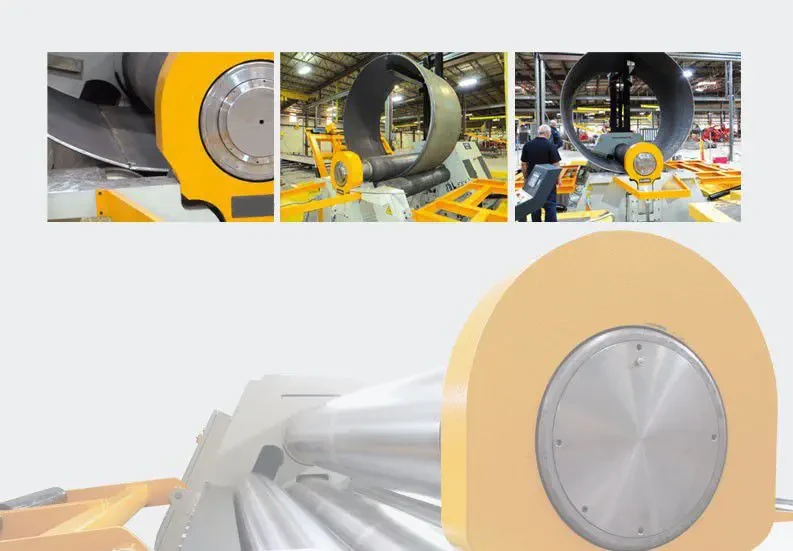

- Hydraulic tiltable Drop-End for easy removal of finished ferrule

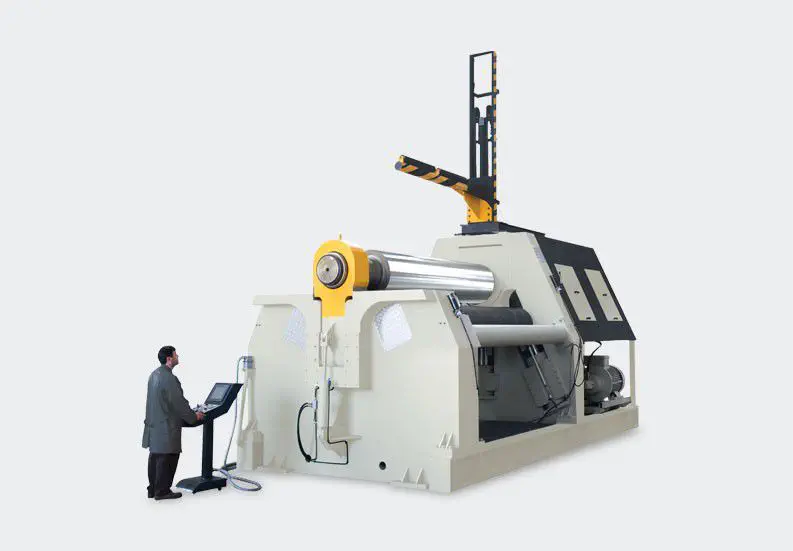

- Easy operation with mobile control panel
- Welded Steel frames

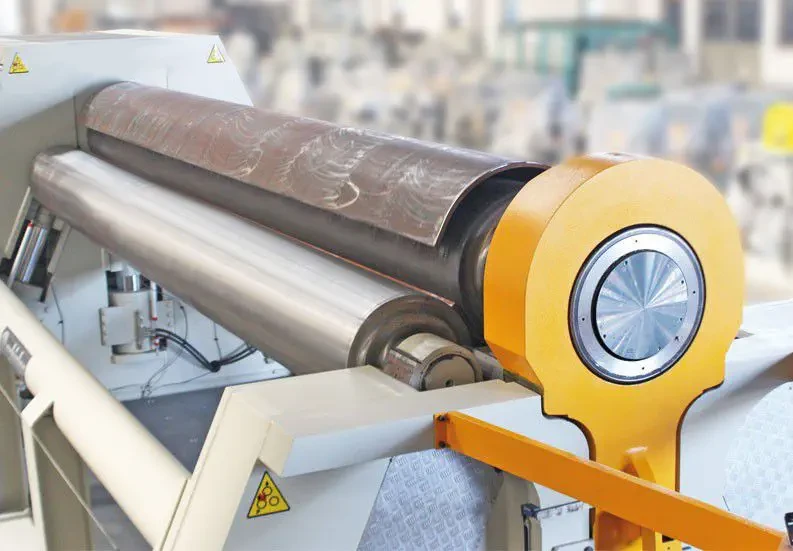

- SAE 1050 (CK 45-50) forged or hot rolled, induction hardened and polished Steel rolls
- Conical bending device
- Central lubrication system
- Double speed working system
- Linear guide system. Pistons use oil power for bending material
OPTIONAL EQUIPMENTS
- Automation with NC and CNC control
- Overhead crane for large diameters
- Hydraulic lateral side supports for large diameters
- Hydraulic plate ejector
- Ground rolls for special jobs
- Infinitely variable speed system
- Electronical balancing system for parallel movement of the rolls (0280-320-350-380-400-460)
- Optional Accumulator System for rotating the welded parts
