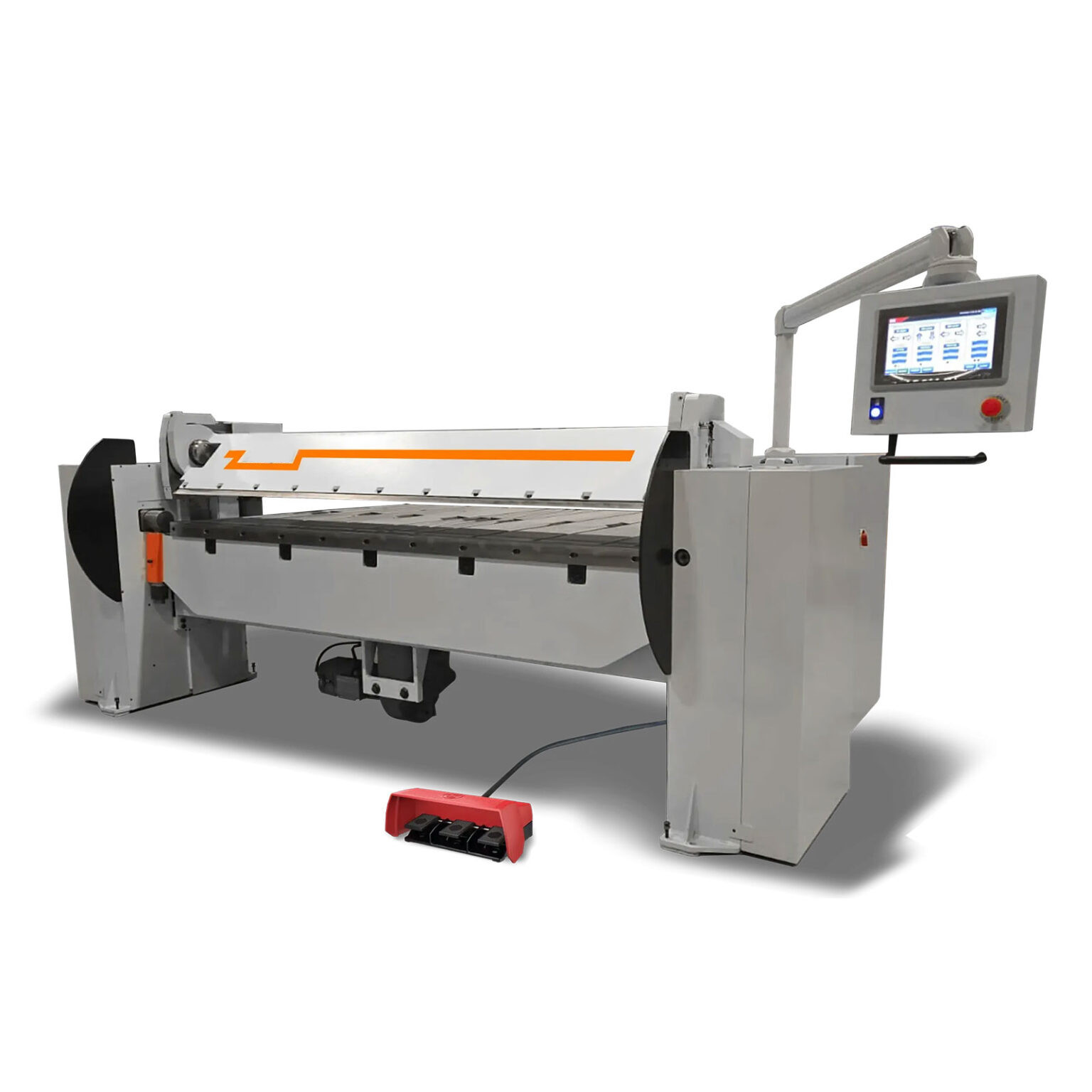

Combi Beam CNC Folder
PRECISION, DURABILITY & EFFICIENCY
| RIGID FRAME | : | Rigid welded and assembled frame enables long lifecyle & accuracy. |
| COMBI BEAM | : | Fast COMBI Beam Rotates in less than 10 seconds (only on C Models). |
| BACKGAUGE | : | Fast 3 Level Enabled Servo Backgauges; backgauge finger that closes up to 5mm enables narrow bendings; servo backgauge to serve 600mm distance in less than 2 seconds. |
| OPERATING & TOOLS | : | 3 Foot operating pedal for easy use; easy tool change system for segmented top blades (only on C Models). |
| CLAMPING MOTOR | : | Centralized Clamping Motor gives assured equal tork and strength on both sides. |
BENEFITS
- Rotating combi beam solution with segmented box tools
- Strong structure for high quality bends
- Time-saving through 1-man operation
- Minimal maintenance effort
- Easy software for fast programming
CONTROLS
- LBL: Line by line programming 12 ” touchscreen
- 2D graphic CNC software: 15 ” touchscreen
STANDARD EQUIPMENT
The following equipment is possible depending on the version (working length/control):
- GOAT FEET Segmented Tools + Sharp rail 30° R 1 mm offset on Upper Beam
- Motorized backgauge 3 – 1000mm
- Insert rail 7/10 mm
- Insert rail 25 mm
- Fotpedal 3 pedal
- Ball transfers in backgauge table
ADD-ONS – OPTIMISE YOUR MACHINE
The following add-ons are possible depending on the version (working length/control):
- Combi beam with segmented box tools
- 5 – 1550 mm motorized backgauge with 3 stations (under 3 sec for positioning)
- 2D Graphic software
- Motorized folding beam adjustment
- Squaring arm on backgauge side
- U shape backgauge L shape backgauge
- Radius rails
TECHNICAL DATA
| MODEL | C2625 | C3220 | C4115 |
| WORKING LENGTH (mm) | 2600 | 3200 | 4100 |
| Steel (400N/mm²) (mm) | 2,50 | 2,00 | 1,50 |
| Stainless steel (600N/mm²) (mm) | 1,75 | 1,25 | 0,90 |
| Cooper (300N/mm²) (mm) | 2,50 | 2,00 | 1,50 |
| Aluminium (250N/mm²) (mm) | 3,50 | 2,00 | 1,50 |
| Zinc (150N/mm²) (mm) | 3,50 | 3,00 | 1,00 |
| Length (mm) | 3820 | 4420 | 5320 |
| Depth (mm) | 2270 | 2270 | 2270 |
| Overall height (mm) | 1810 | 1810 | 1810 |
| WEIGHT (kg) | 3170 | 3500 | 4210 |
| CLAMPING BEAMS Opening height (mm) | 140 | 140 | 140 |
Safety buttons on each side of the frames to reach from any side
Segmented High Quality special tools
Large table also with U or L Shape configuration options enabled

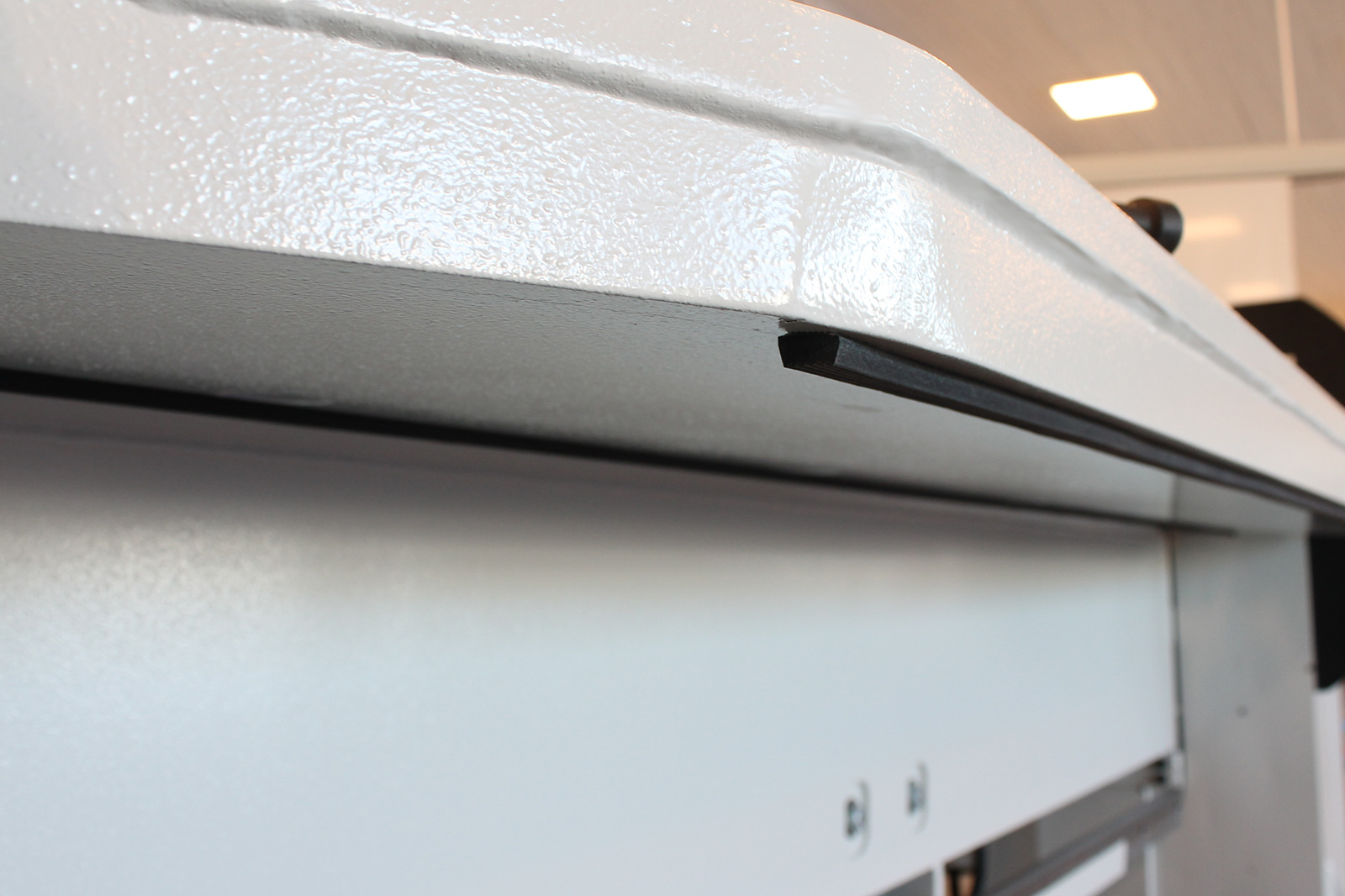

Quick lock for Bottom Blade & Easy manual crowning setting
Standard safe guards on sides of bending area to protect operator
Easy adjustment of lower beam height and setback
Easily moving acrobat arm for controller with 1200mm radius enables to work in the back
3 Pedals standard foot controls enabled
