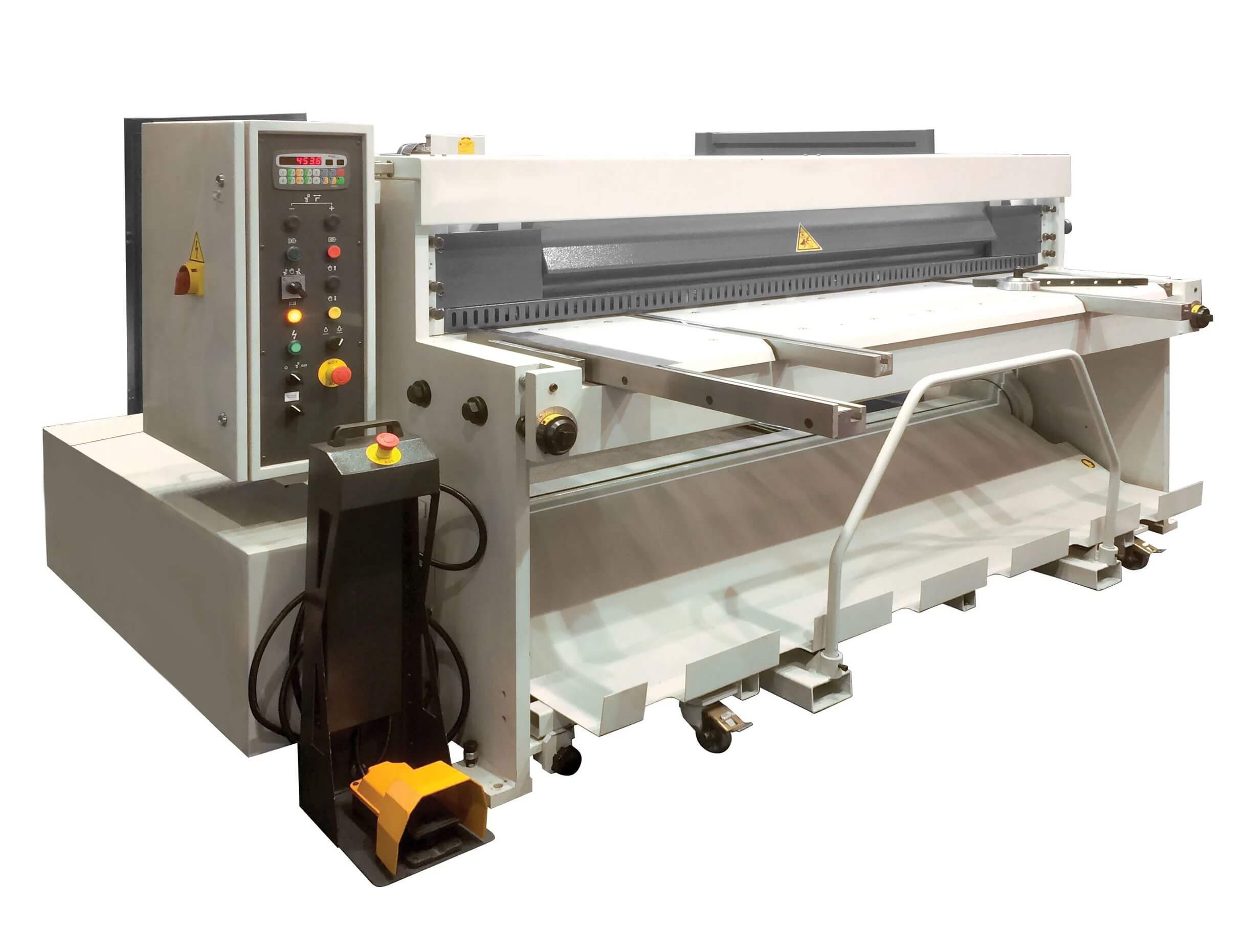

Fast Type Mechanical Shears

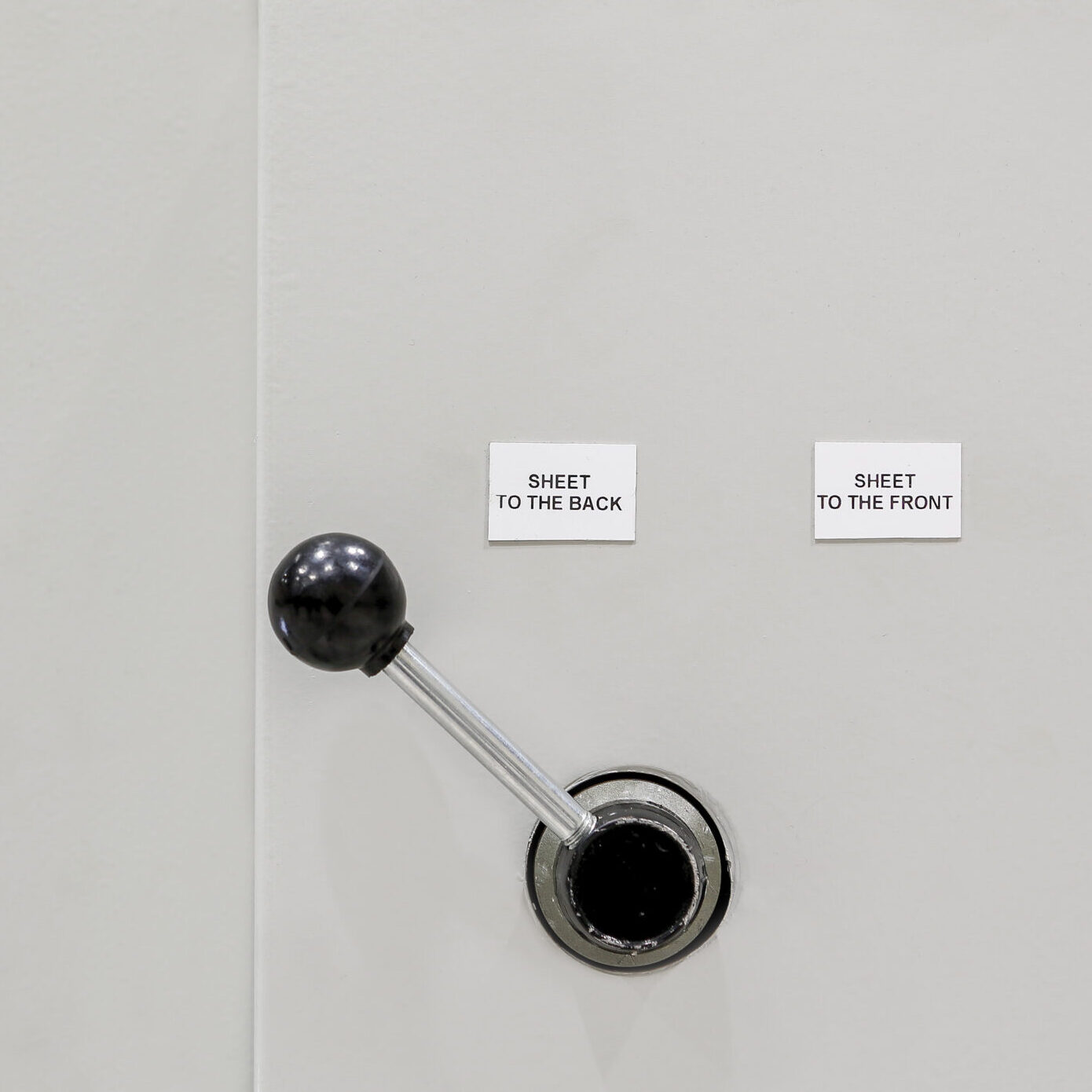

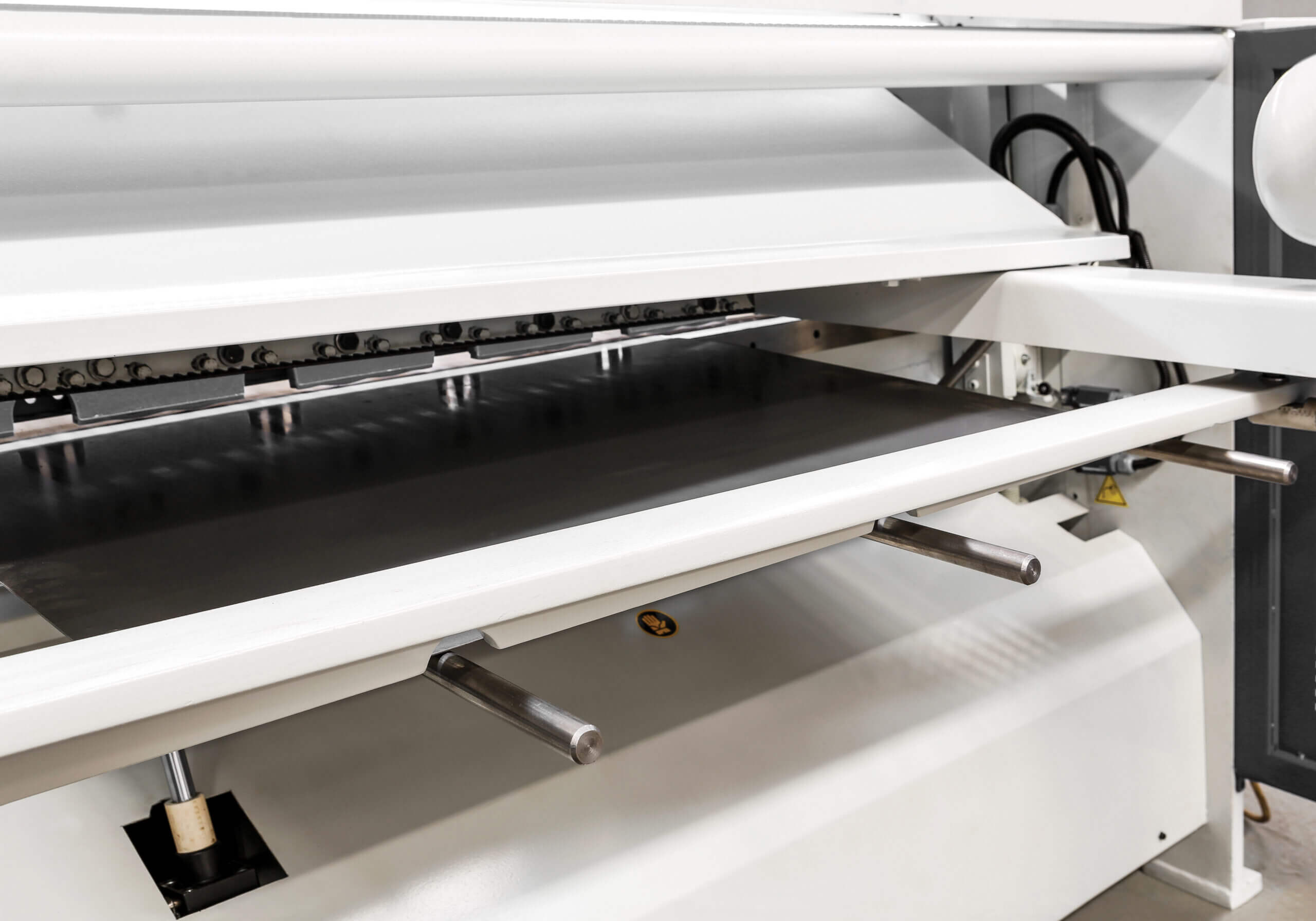

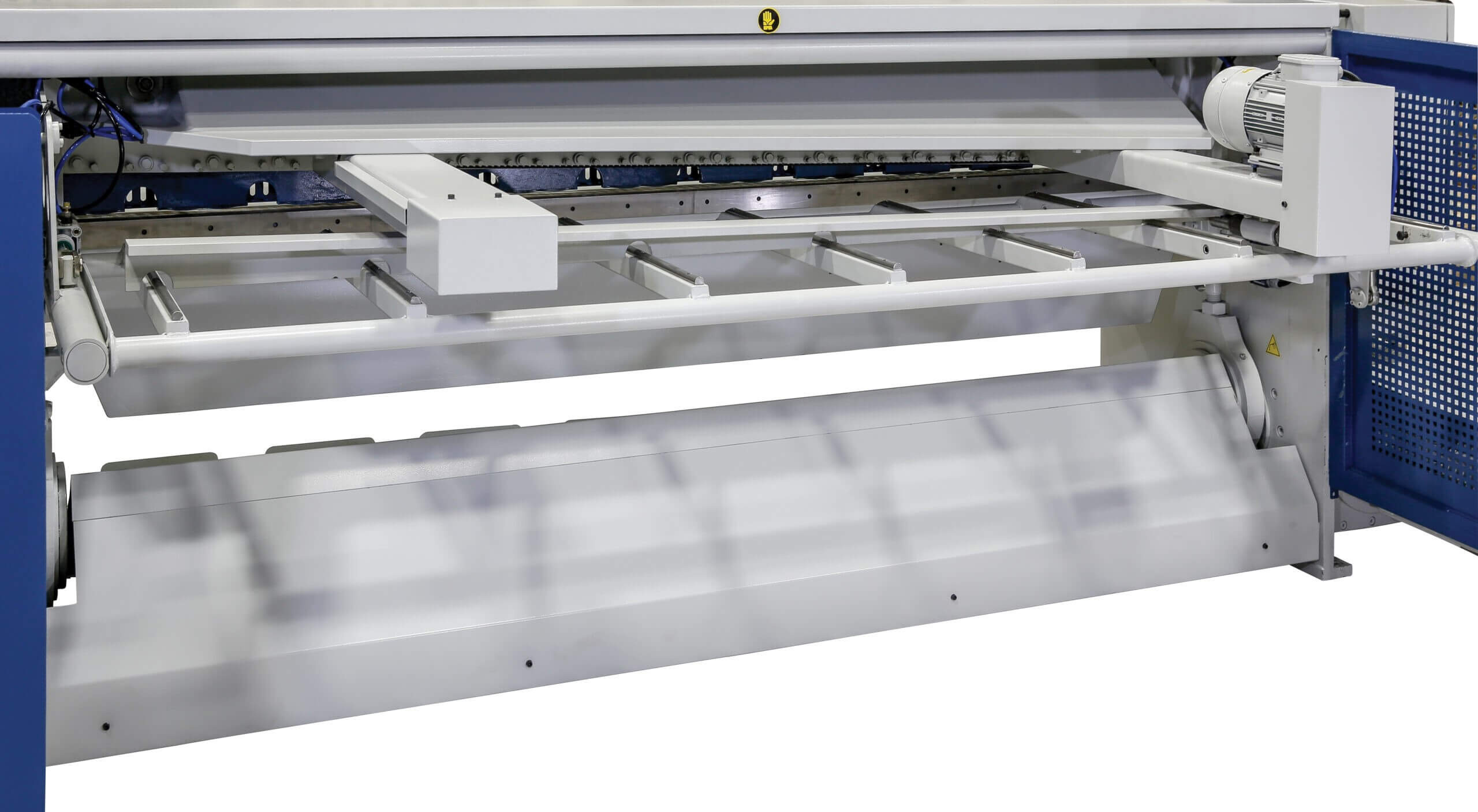

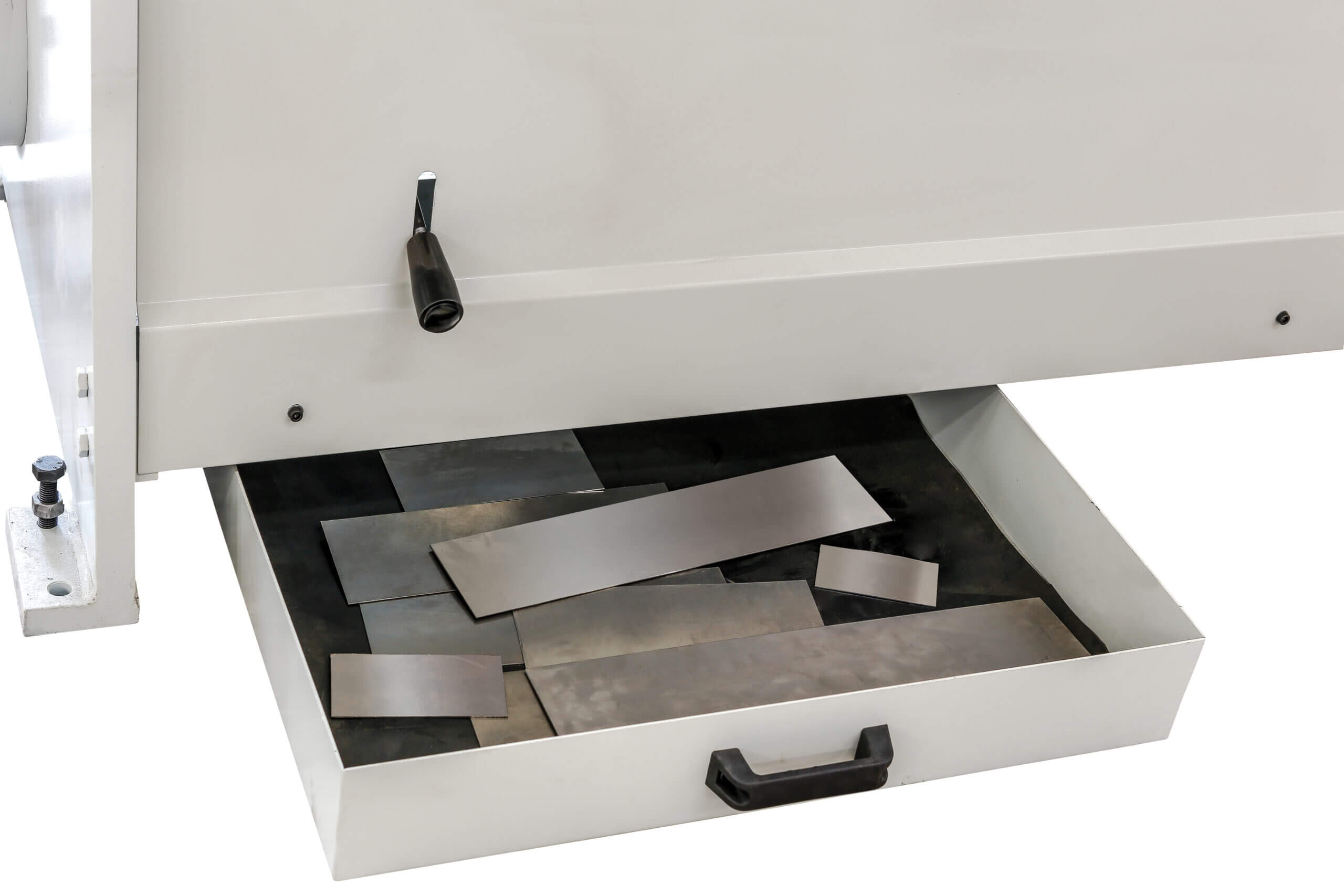

Both front & rear drop features available
STANDARD FEATURES
- All steel-plate construction

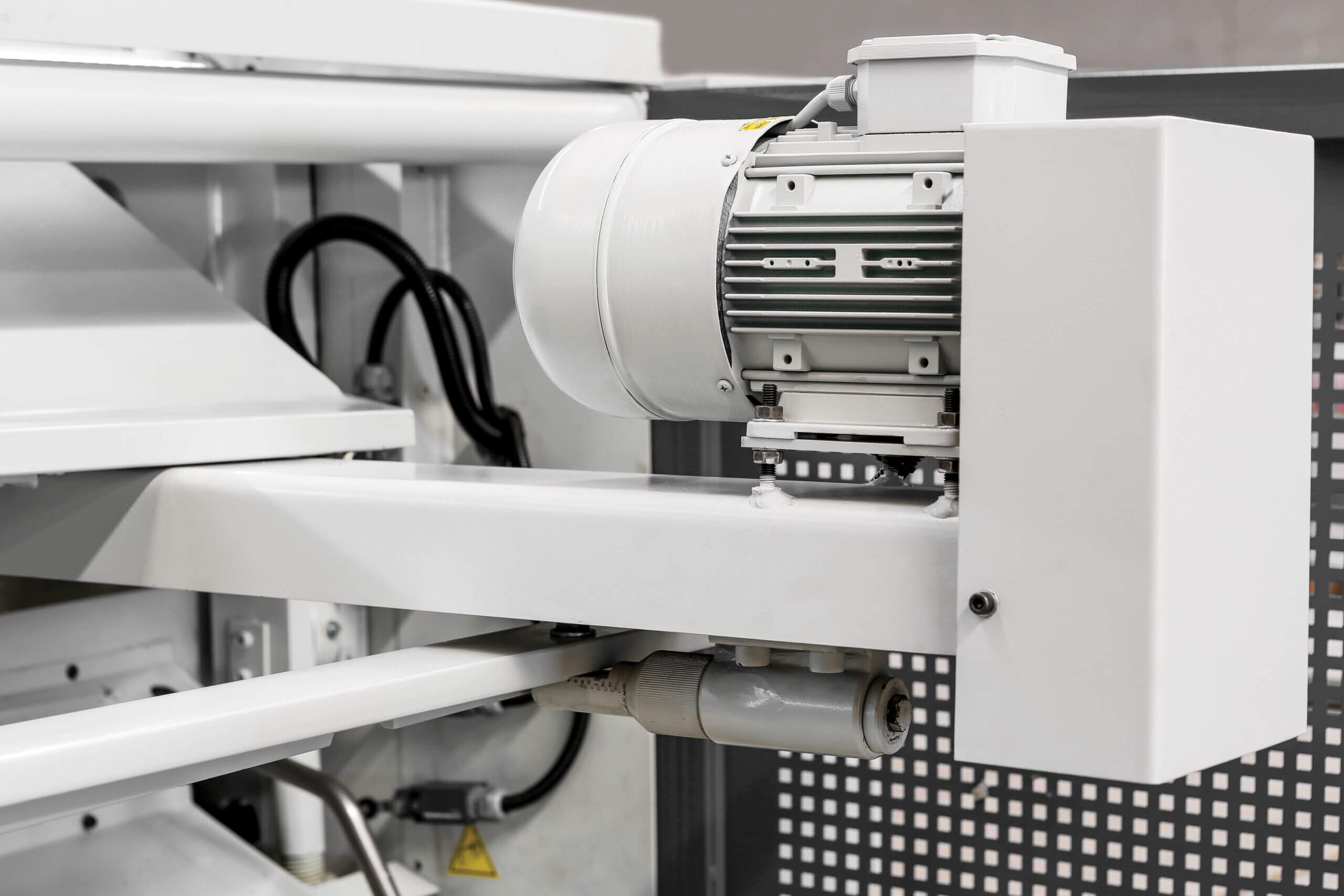

- Direct-drive operating mechanism with brake motor

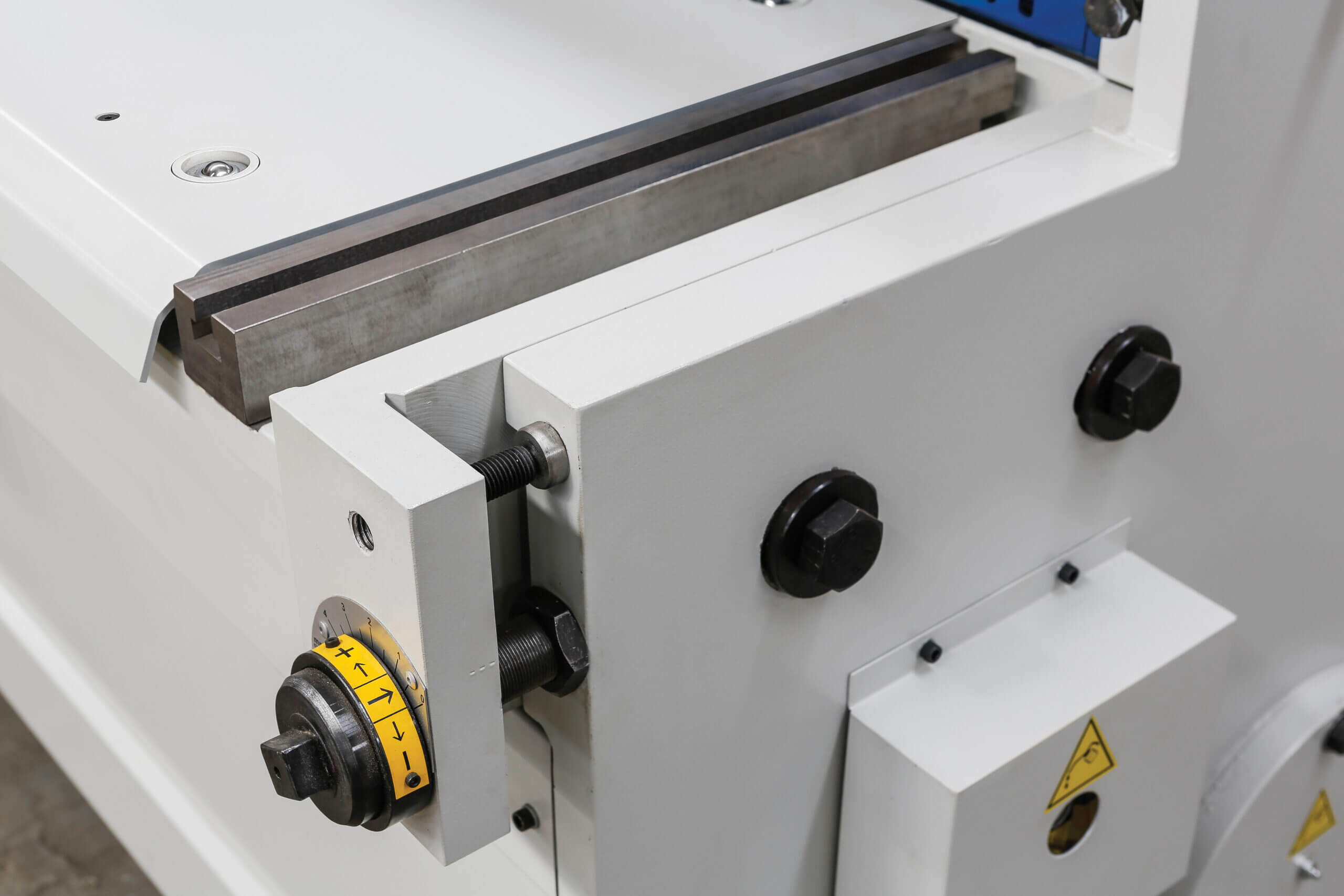

- Special alloyed cutting blades
- 550 mm motorised handwheel backgauge with ballscrew spindles
- Mechanical sheet clamping system
- Work table
- Foot pedal operation for single and repetitive cutting cycles

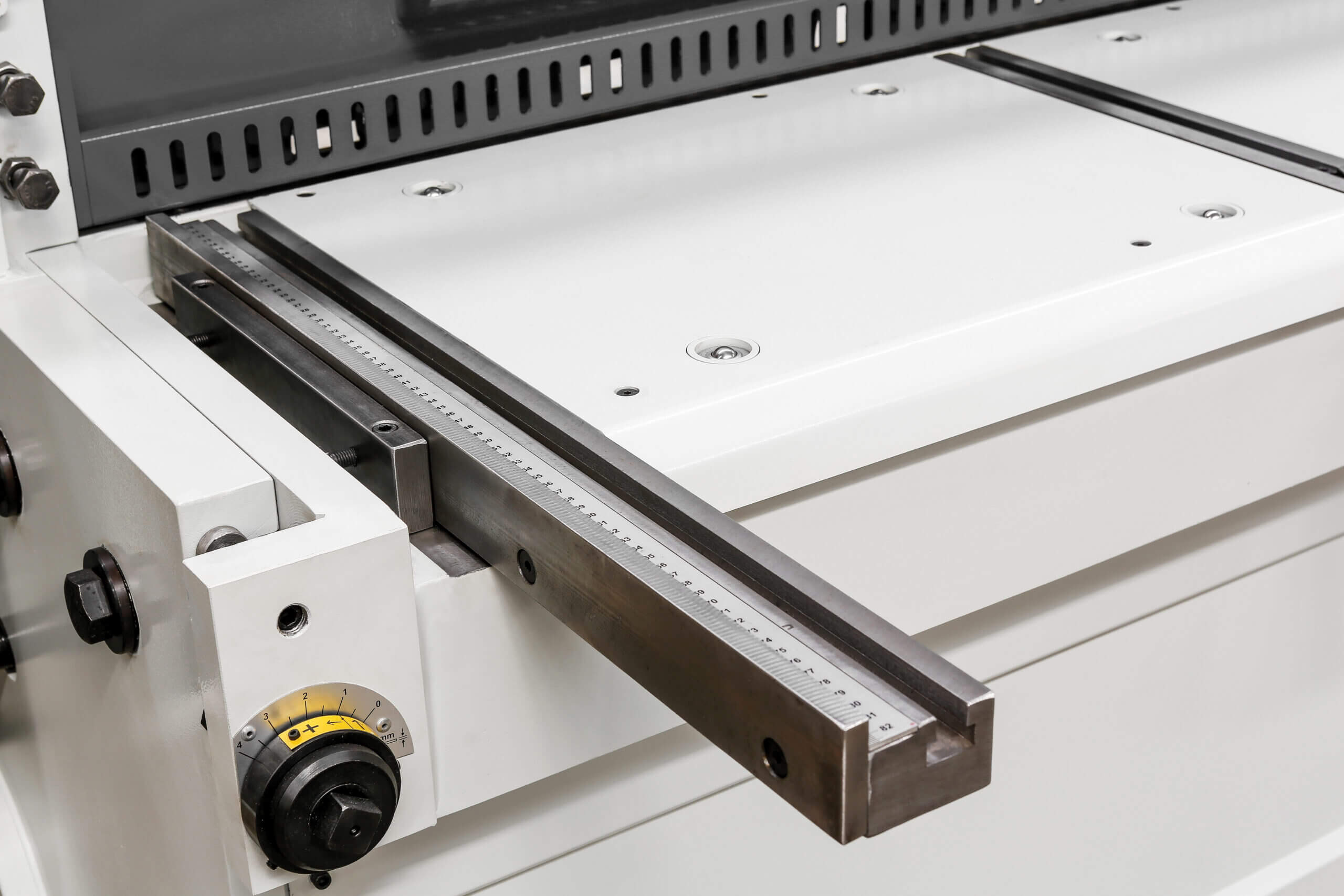

- Squaring arm with metric scale
- Extendable front support

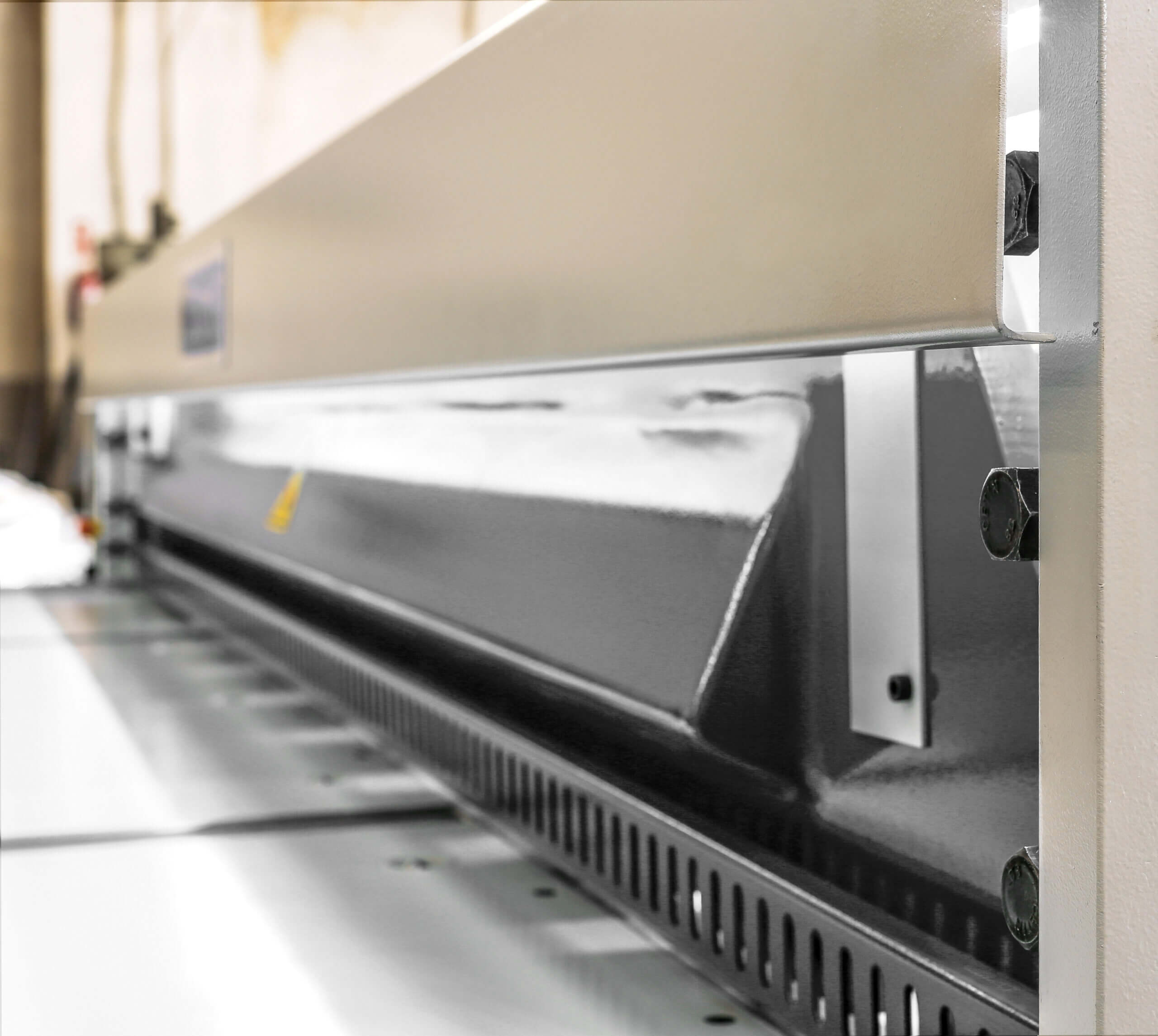

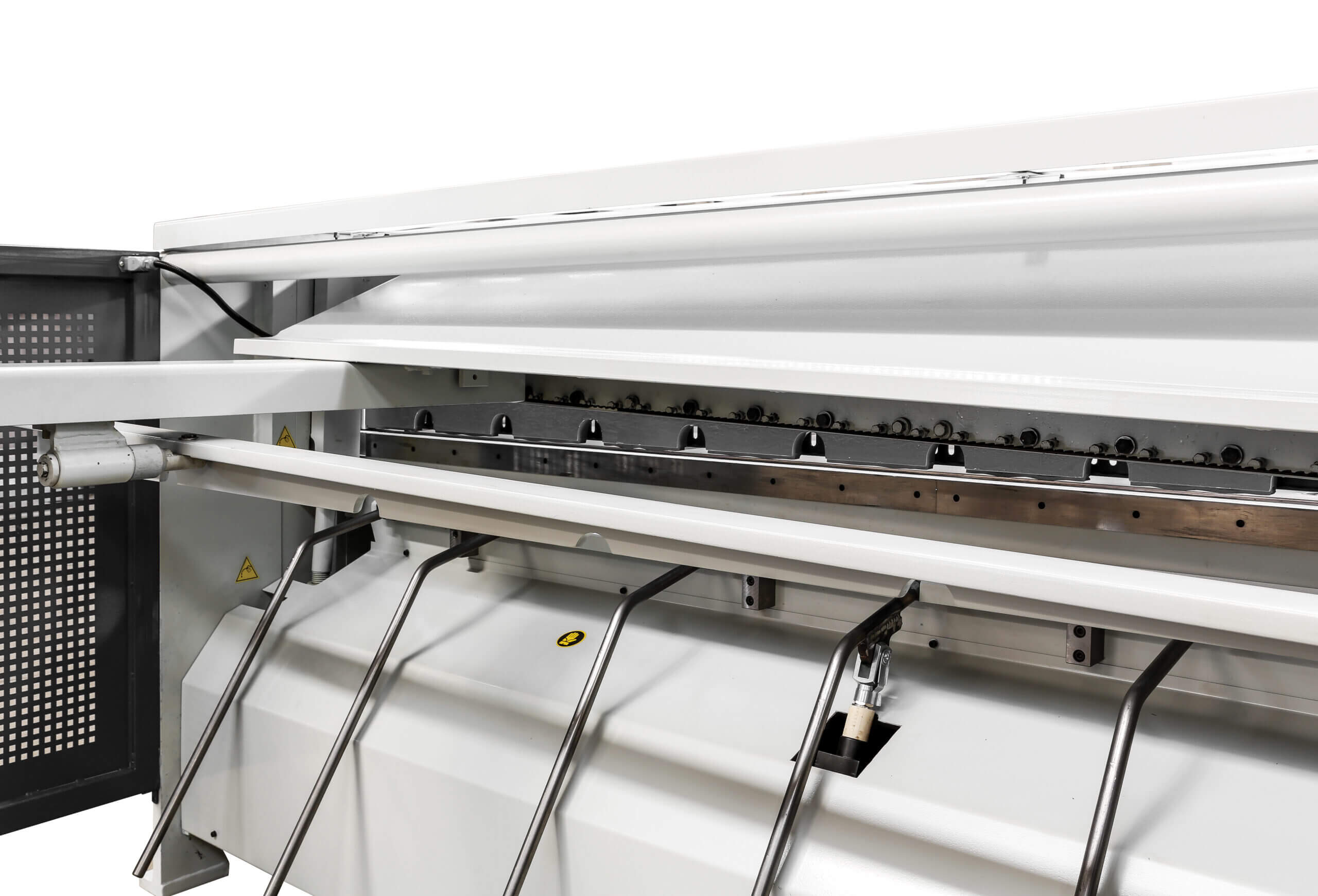

- Front finger guard – protective front and rear cover plates

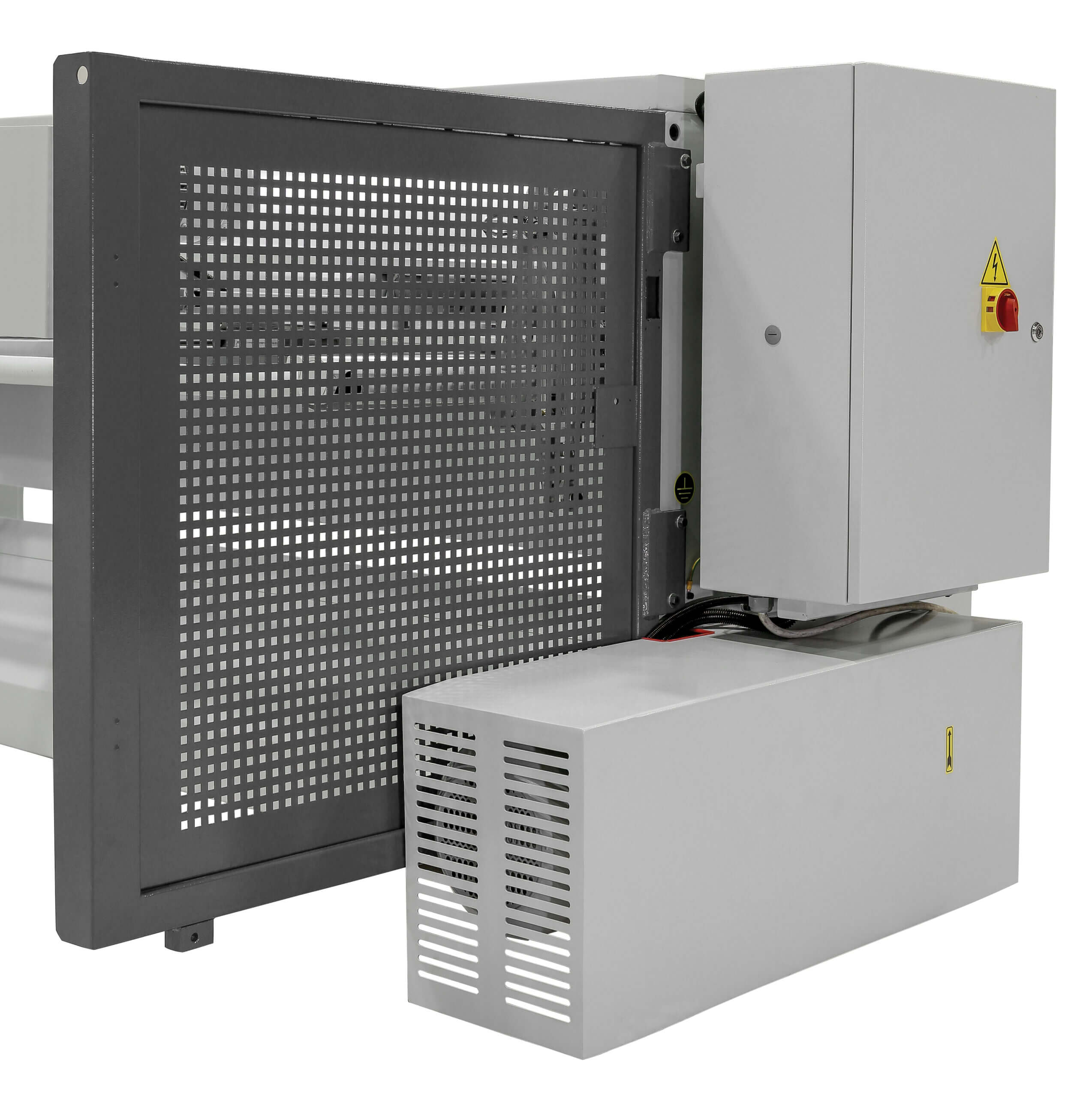

- Rear light guards and full conformity to CE
- User’s Manual in English language, complete with operating and maintenance instructions, parts list, and electrical circuit drawings
TECHNICAL DATA
| Cutting Length (mm) | 1350 | 1540 | 2100 | 2500 | 3050 | 3050 |
| Cutting Capacity (St-37) (mm) | 3 | 4 | 4 | 4 | 3 | 4 |
| Cutting Angle | 2,2° | 1.8° | 1.8° | 1.8° | 1.5° | 1.5° |
| Machine Length (mm) | 2070 | 2250 | 2750 | 3250 | 3910 | 3910 |
| Machine Width (mm) | 1940 | 2230 | 2380 | 2380 | 2380 | 2580 |
| Machine Height (mm) | 1220 | 3000 | 1360 | 1360 | 1360 | 1560 |
| Machine Weight (kg) | 1190 | 2000 | 2650 | 3050 | 3660 | 4350 |
| Stroke Number (stroke/min.) | 27 | 32 | 38 | 38 | 29 | – |
| Back gauge Length (mm) | 750 | 1000 | 750 | 1000 | 1000 | – |
| Motor 380V 50Hz 3 phase (kW) | 3 | 7.5 | 7.5 | 7.5 | 7.5 | 10 |
| Motor Brake (Nm) | – | 75 | 75 | 75 | 75 | 75 |
| Reducer-output rpm (rev/min.) | – | 85 | – | 103 | 103 | 29 |
