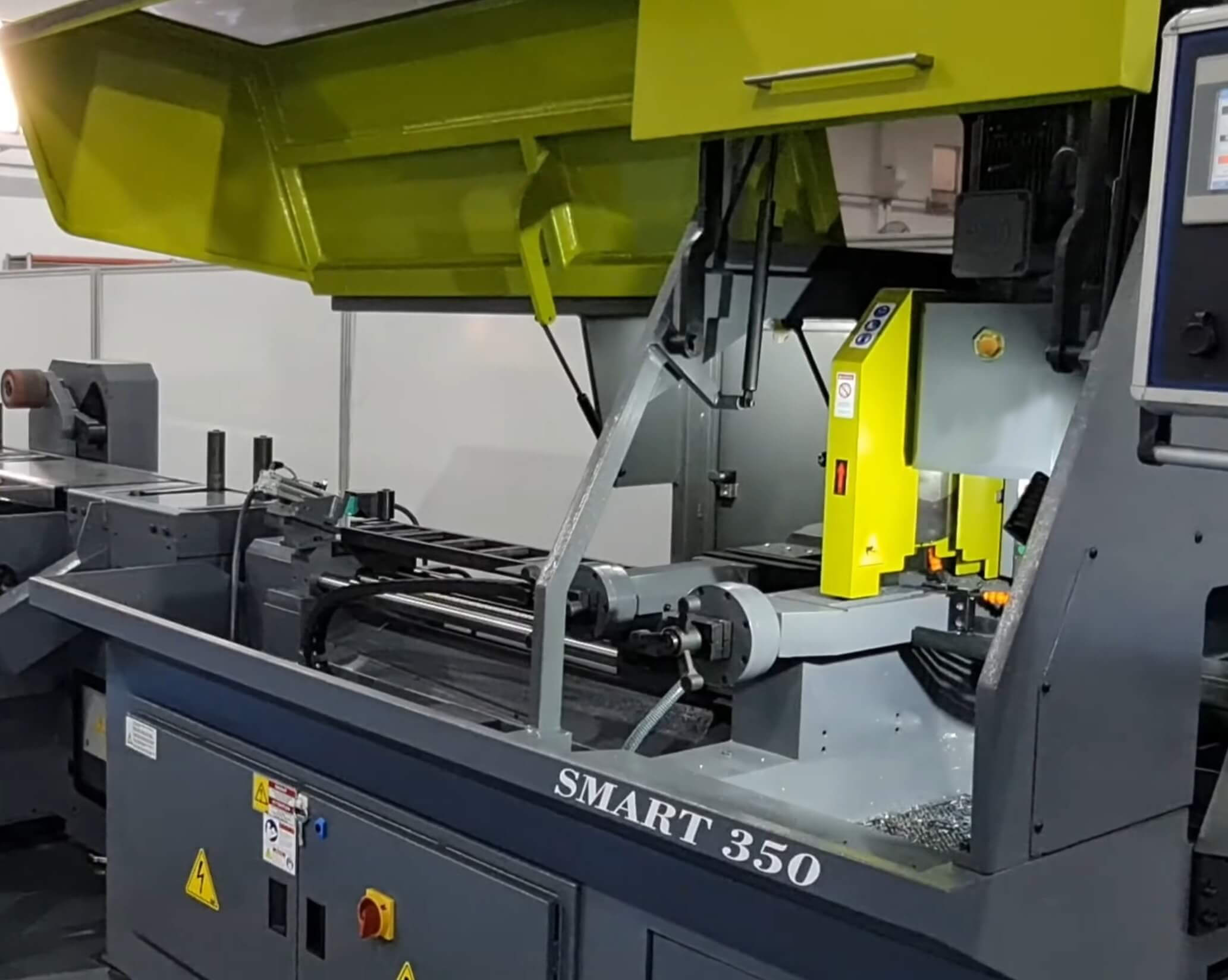

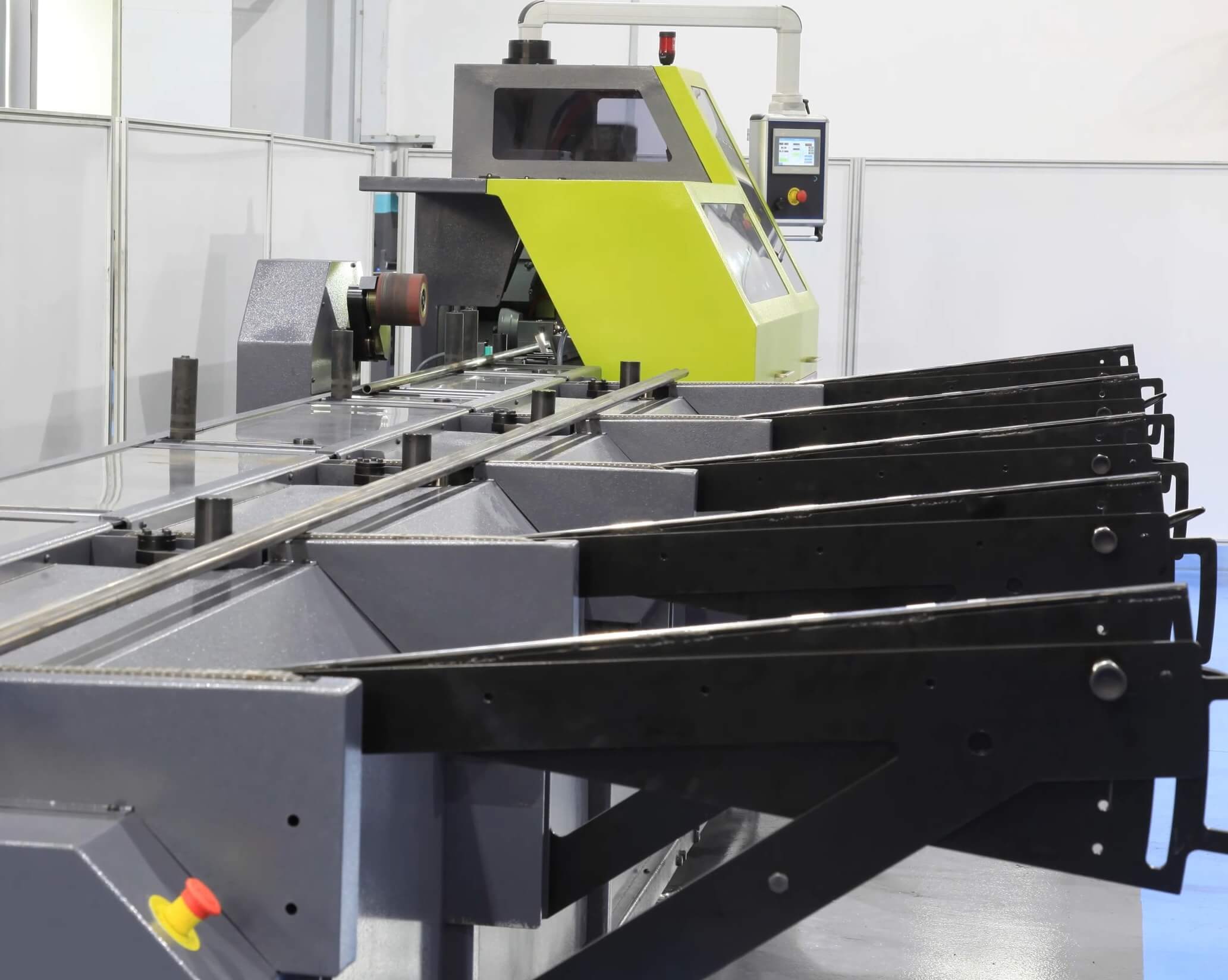

Fully Automatic Circular Saw Machine Smart 350
CHARACTERISTICS & SPECIFICATIONS
| CUTTING PARAMETER | ||
|---|---|---|
| SAW ANGLE | 90° | +/- 45° |
| MAXIMUM SAW DIAMETER | 350 mm | |
| ROUND MATERIAL DIAMETER (MAX.) | 110 mm | |
| SQUARE MATERIAL (MAX.) | 100 x 100 mm | |
| RECTANGULAR MATERIAL (MAX.) | 120 x 90 mm | |
| MIN LENGTH OF REMAINING PIECE | 120 mm | |
TECHNICAL SPECIFICATIONS
| MAIN VOLTAGE | 400 V |
| CONTROL VOLTAGE | 24 V |
| INSTALLED POWER | 5.6 kW |
| CURRENT | 17 A |
| SAW ENGINE | 4 kW |
| BORON OIL PUMP | 0.09 kW |
| AIR PRESSURE | 6 kg/cm2 (240 l/min) |
| SAW SPEED | 20 – 100 rpm (By Inverter) |
| ANGLE ROTATION | 90° |
SAW FEATURES
| SAW DIAMETER | 350 mm |
| SAW BORE DIAMETER | 32 mm |
| PIN HOLES | 2 x Ø11 mm |
| TiN COATING | Medium Hard Steel |
| TiCN COATING | High Stiffness Steel |
| TiAlN COATING | Stainless steel |
DIMENSIONS
| WIDTH (MOST) | 2,200 mm |
| LENGTH (SIZE) | 1,100 mm |
| HEIGHT | 2,000 mm |
| NET WEIGHT | 1,370 kg |
| GROSS WEIGHT | 1,390 kg |
