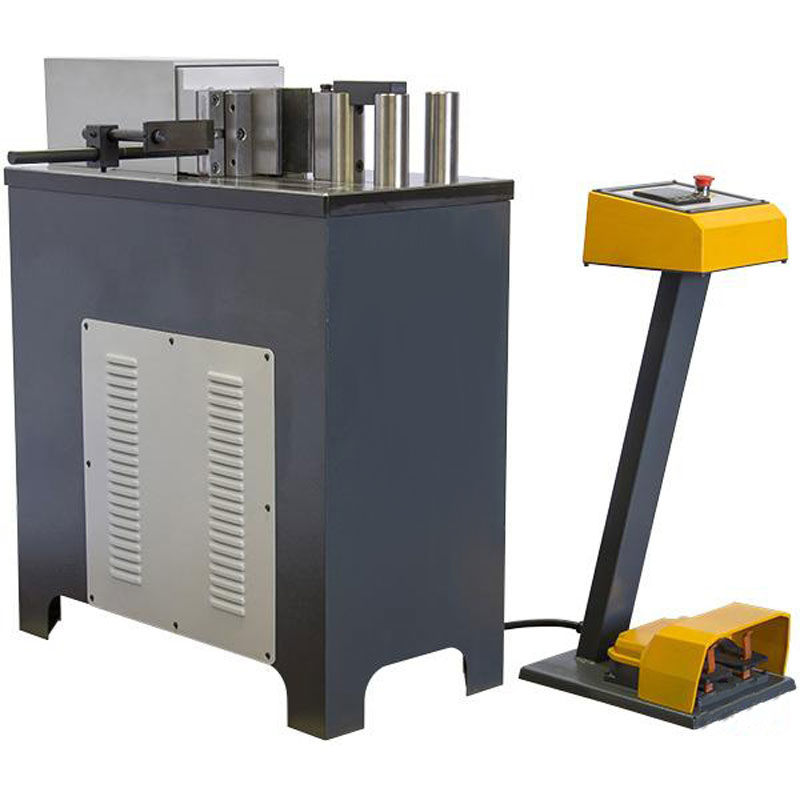

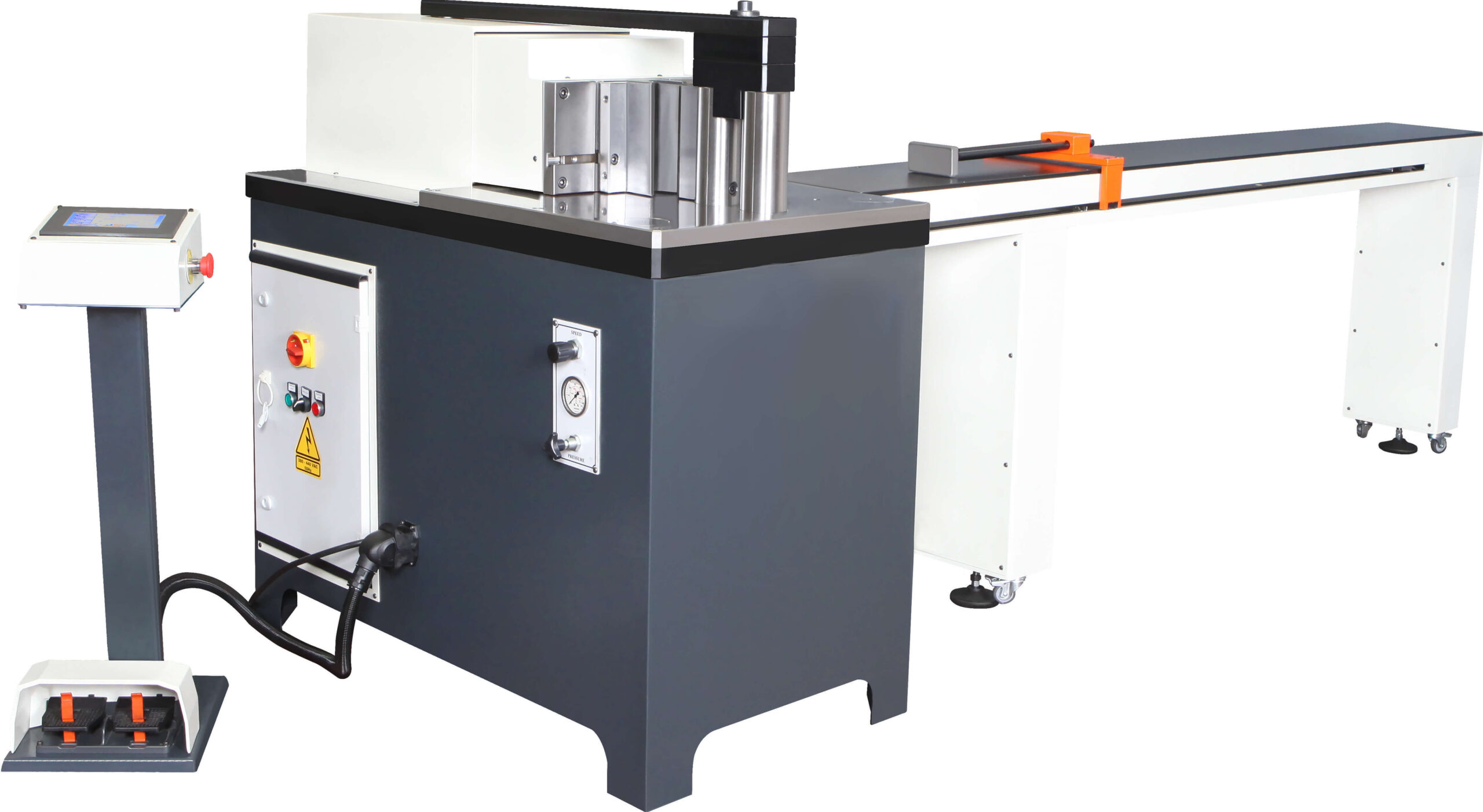

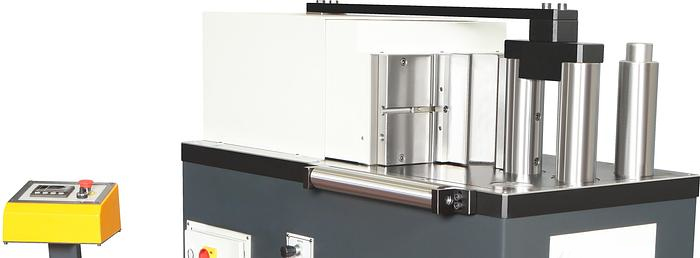

Hydraulic Horizontal Press HP 10

CHARACTERISTICS & SPECIFICATIONS

MODEL	:	HP 10
MAX PRESSURE (AT 200 BARS)	:	10 tf
OIL TANK CAPACITY	:	12 L
BENDING CAPACITY FLAT MATERIALS	:	150 x 8 mm
BENDING CAPACITY ROUND TUBES	:	42 x 3.2 mm
MAX STROKE	:	185 mm
DIAMETER OF BOLTS	:	60 mm
HEIGHT OF TOOLING	:	150 mm
WORKING SPEED	:	10 mm/s
RETURN SPEED	:	10 mm/s
MOTOR POWER	:	1.1 kW
NET WEIGHT	:	250 kg
SIZE OF THE TABLE (L x W)	:	450 x 900 mm
WORKING HEIGHT	:	915 mm
LENGTH OF THE MACHINE	:	900 mm
WIDTH OF THE MACHINE	:	450 mm
HEIGHT OF THE MACHINE	:	1,130 mm
SIZE OF PACKING (L x W x H)	:	1,000 x 500 x 1,500 mm

Solid fabricated steel machine body

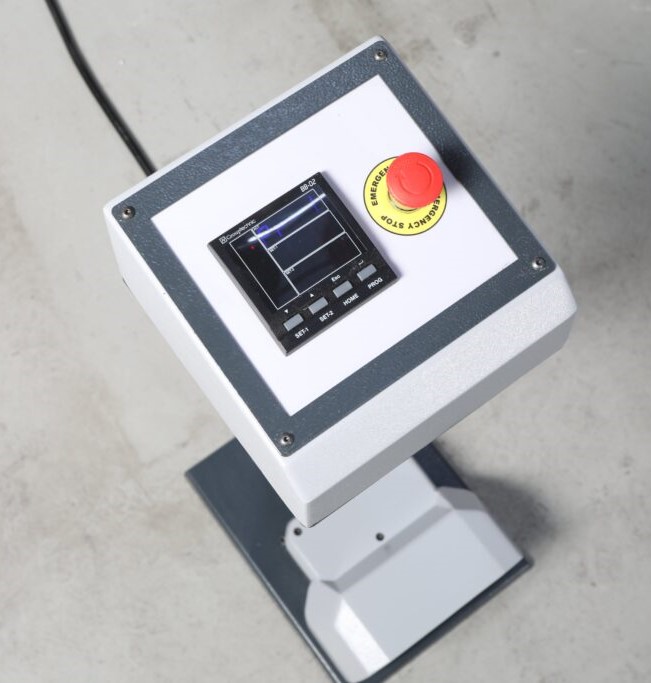

Digital setting of bending angle
Manual or automatic operation
Hardened and ground components and tooling

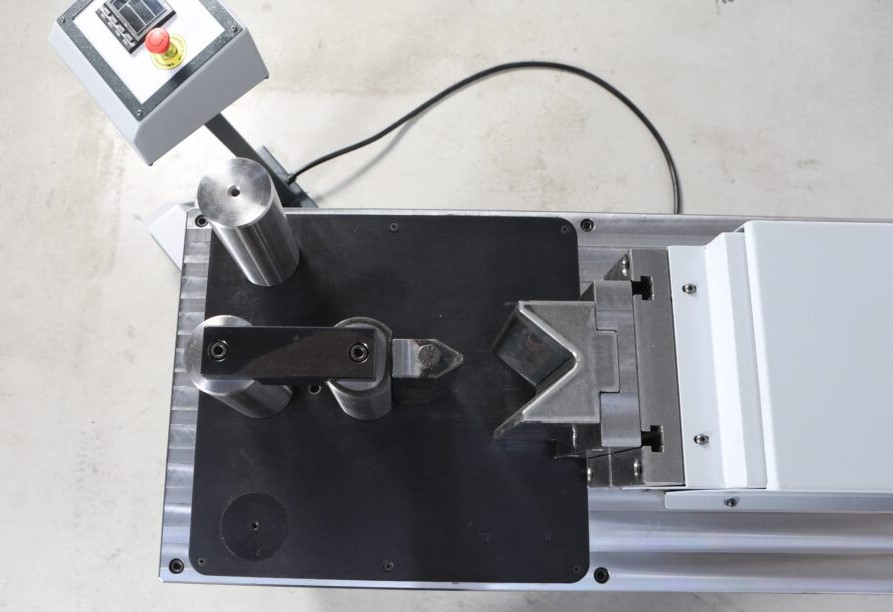

Removable foot pedal control

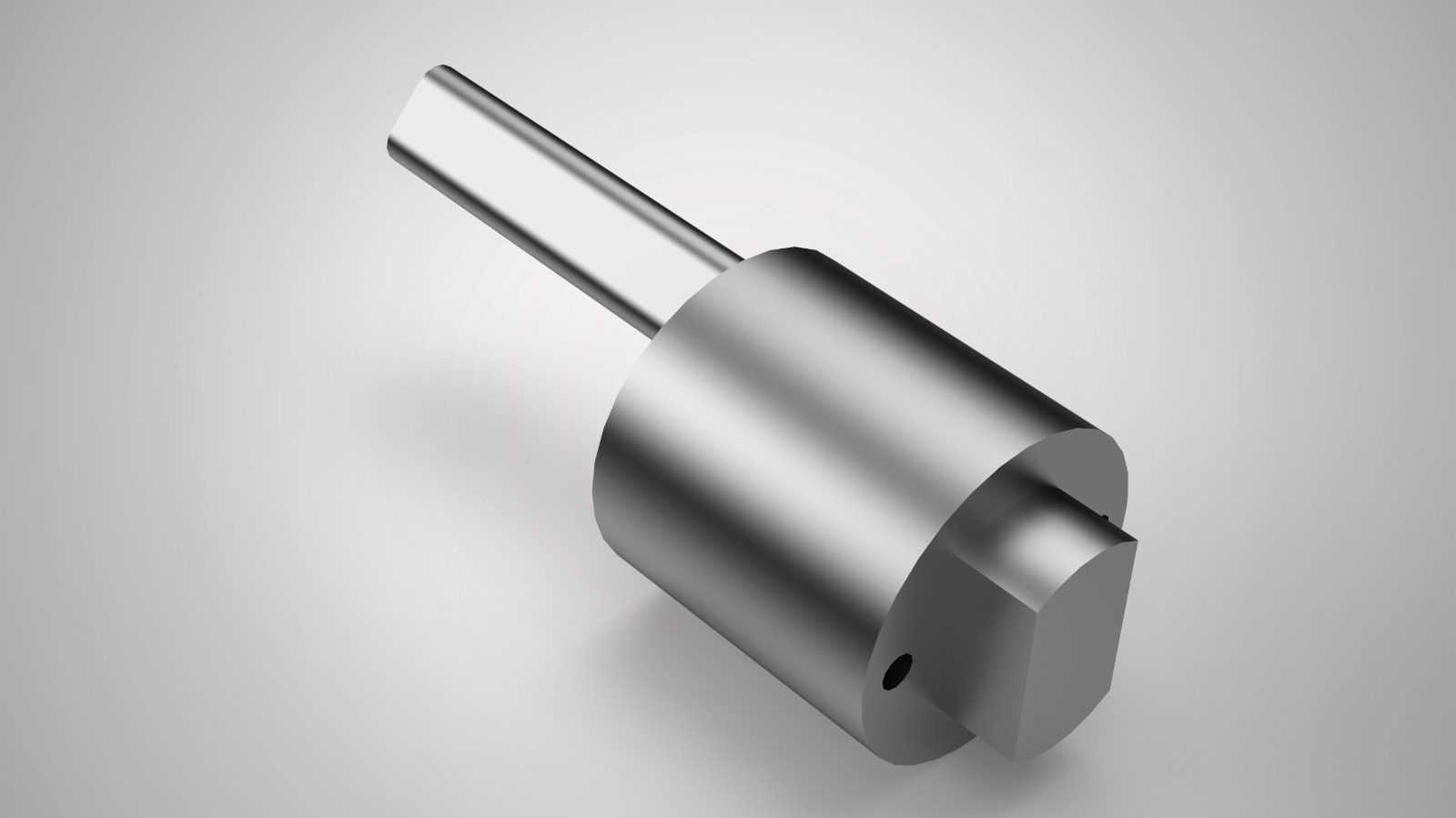

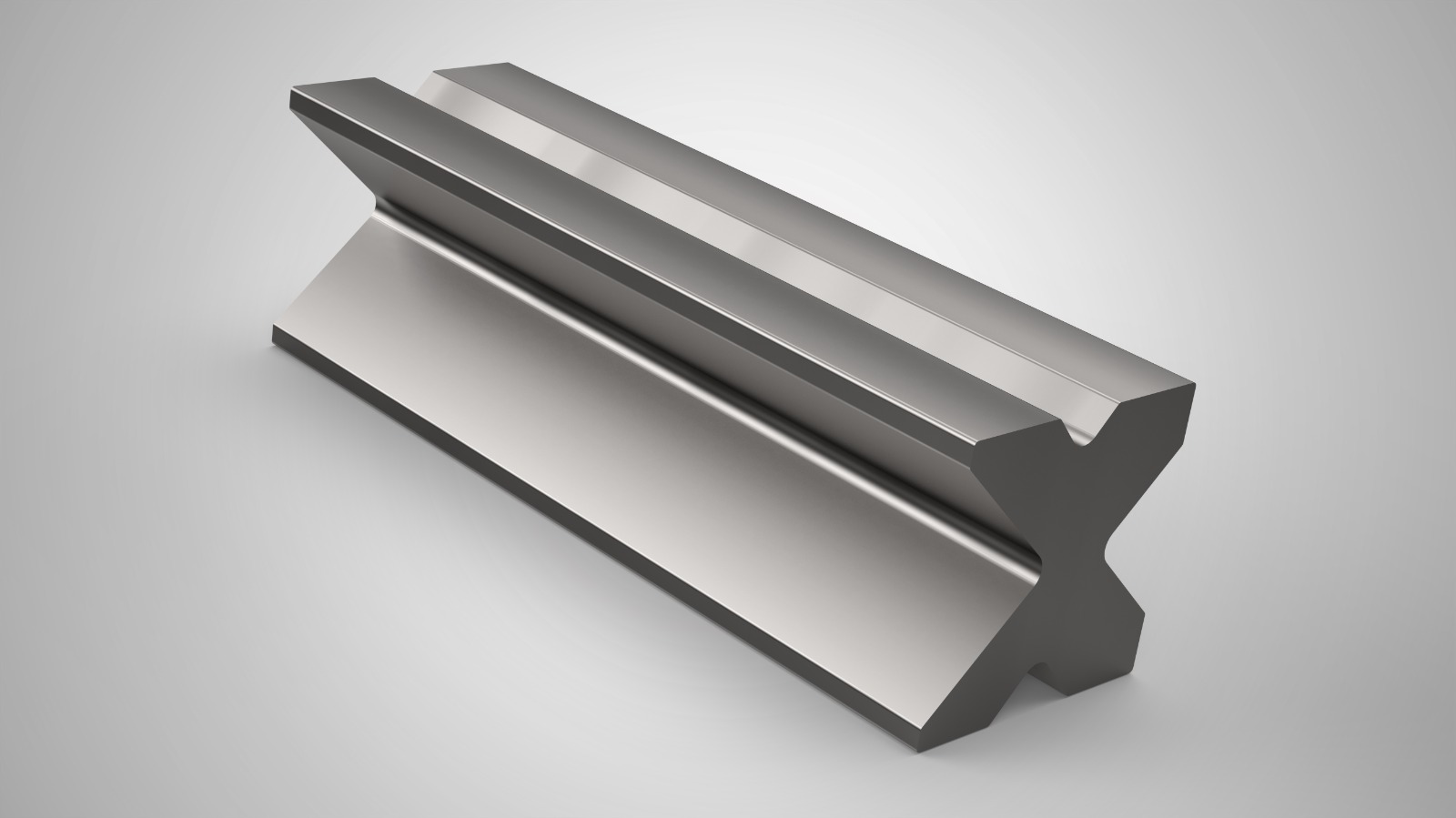

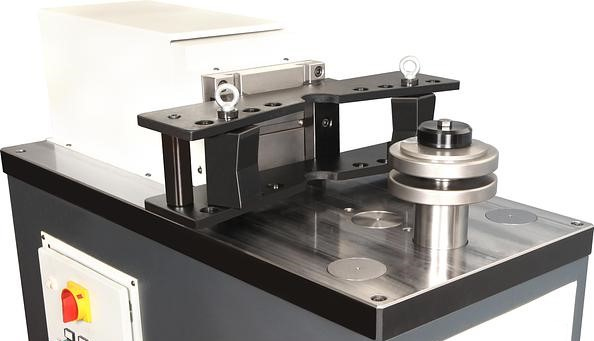

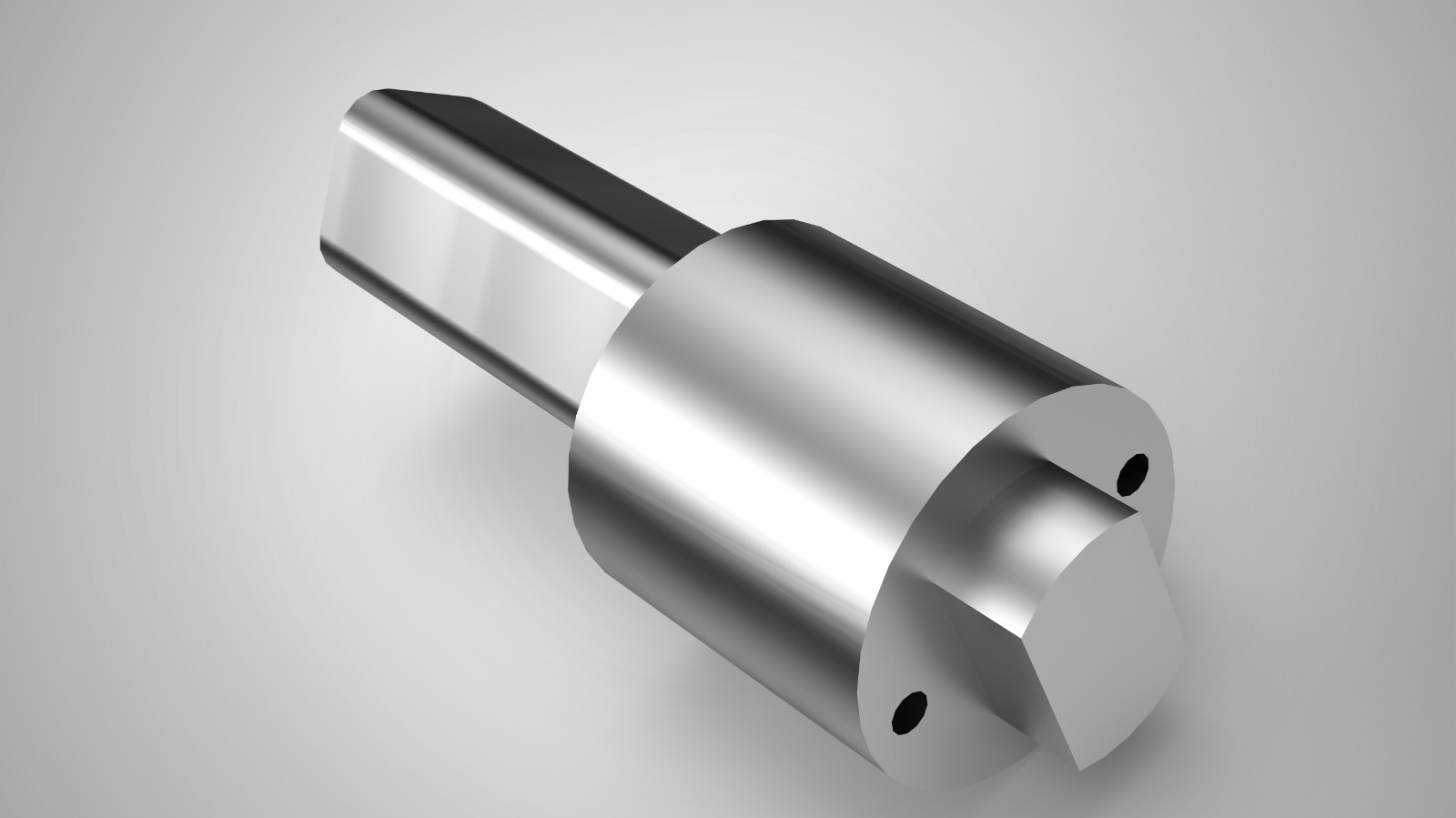

Suitable for cutting, punching, bending/straightening, pipe bending (Optional tooling required)
Complies with CE Standards

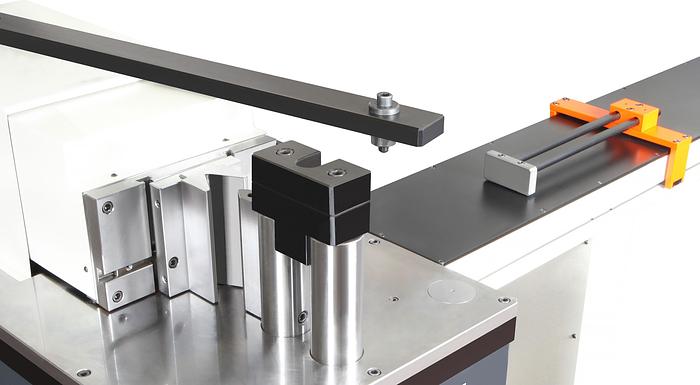

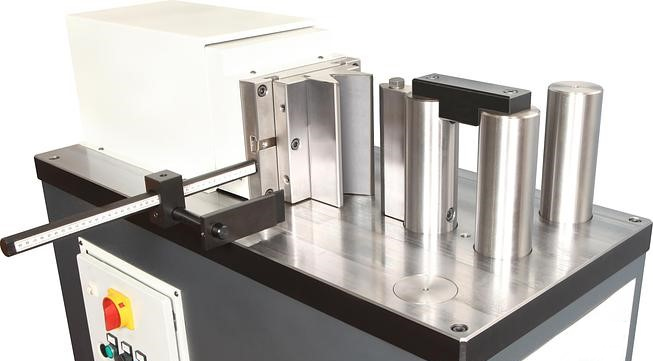

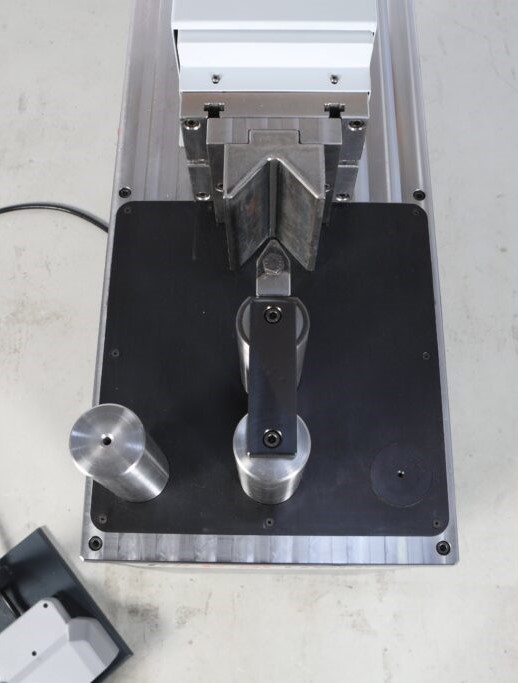

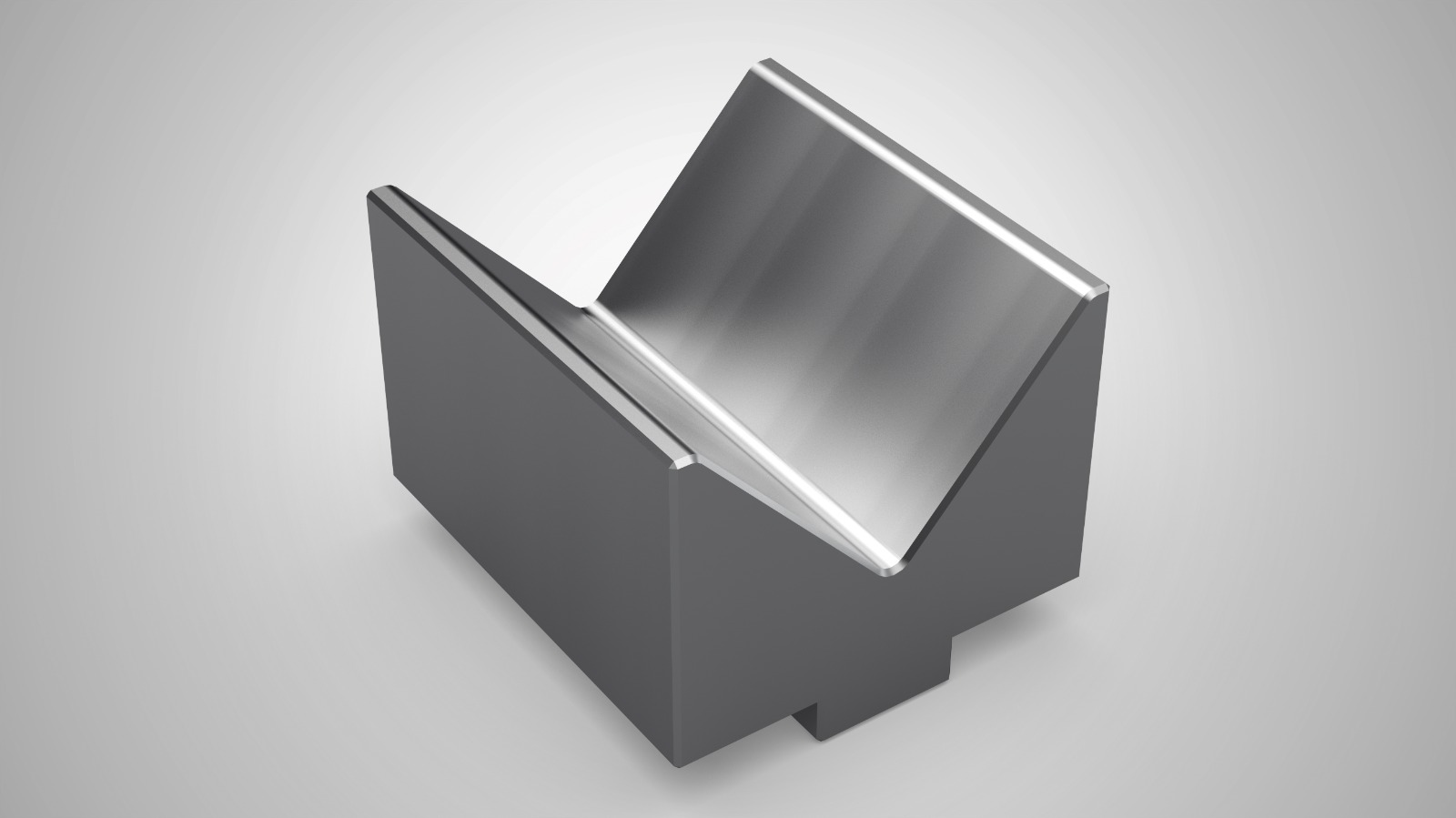

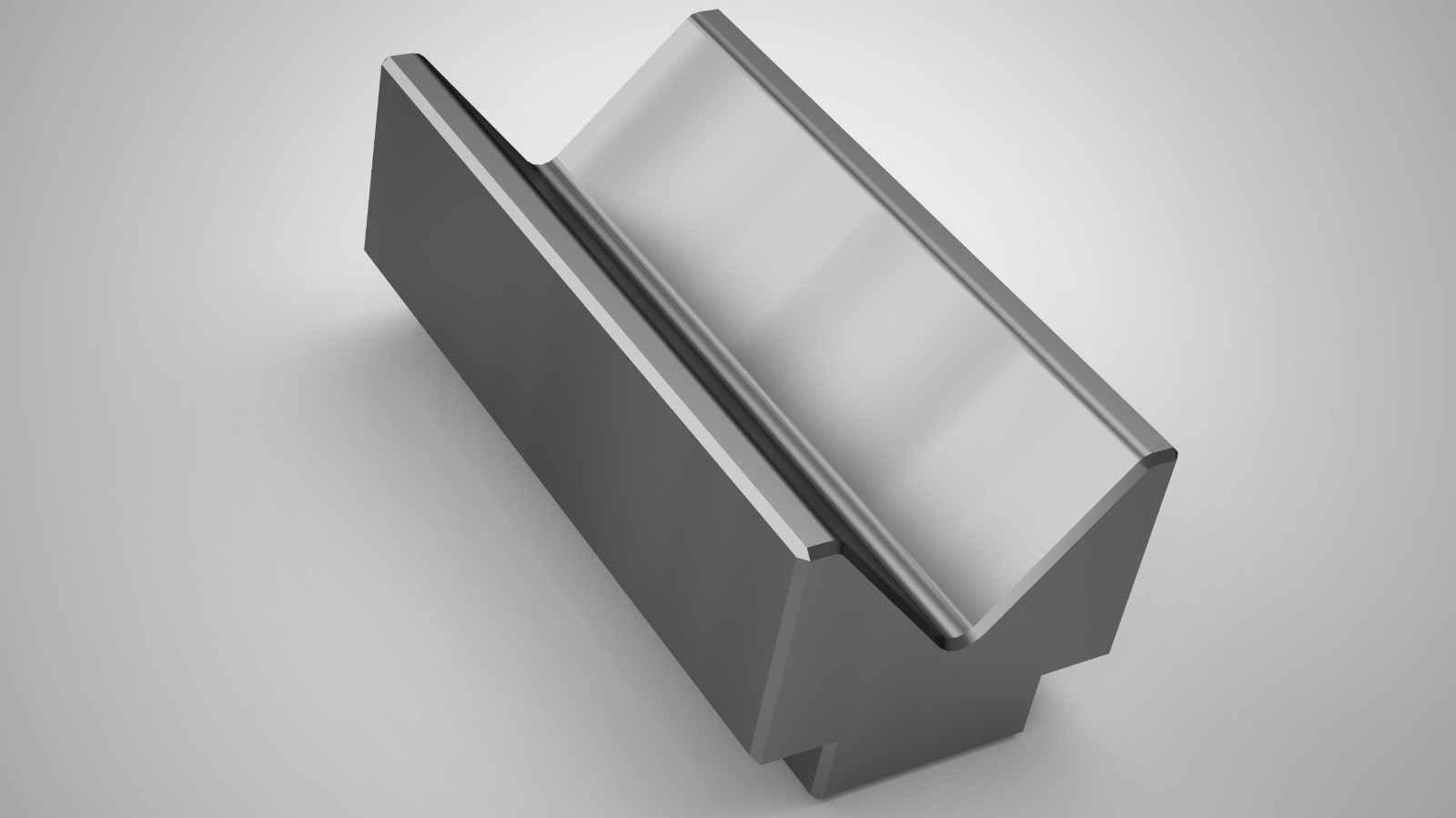

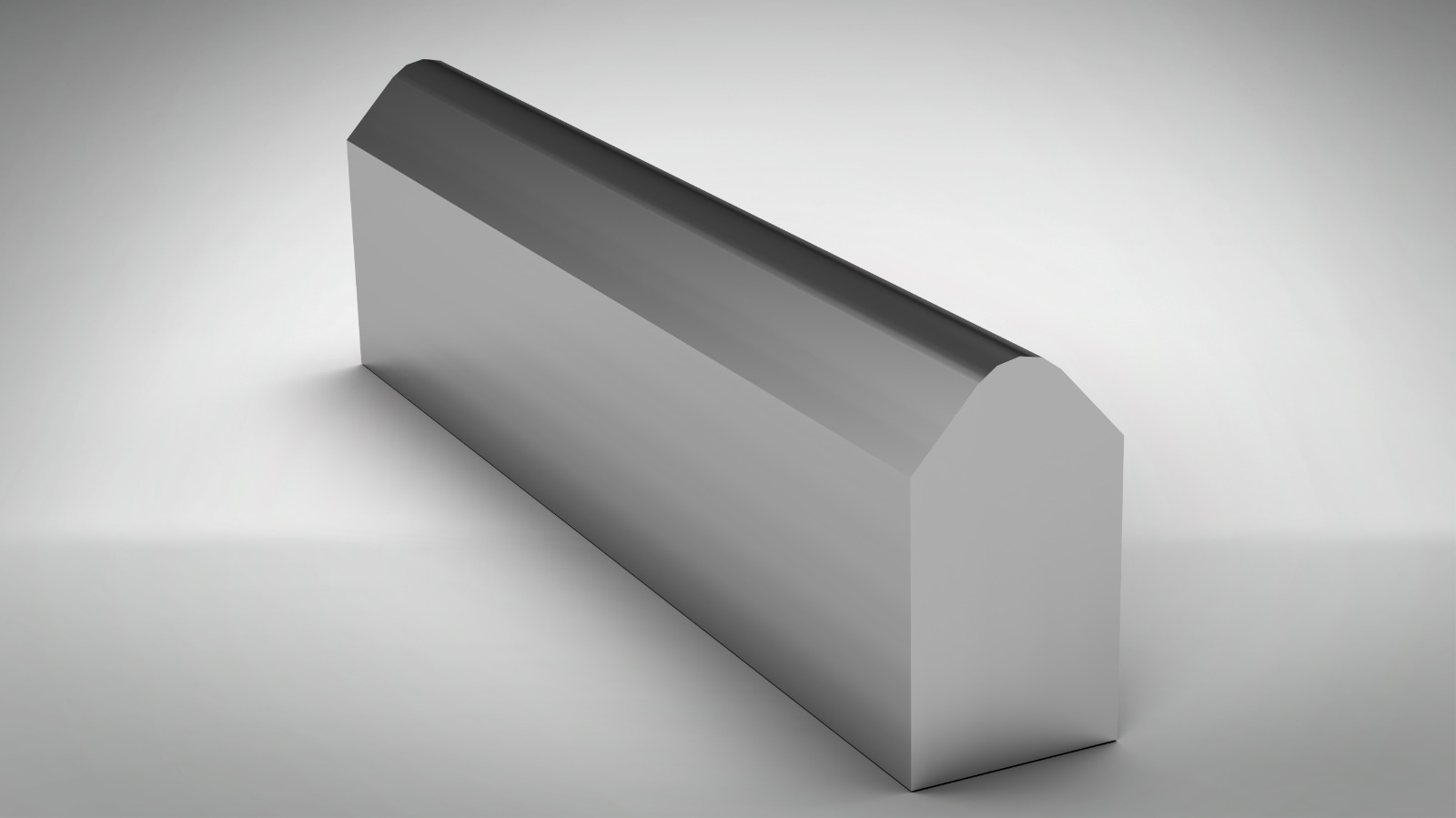

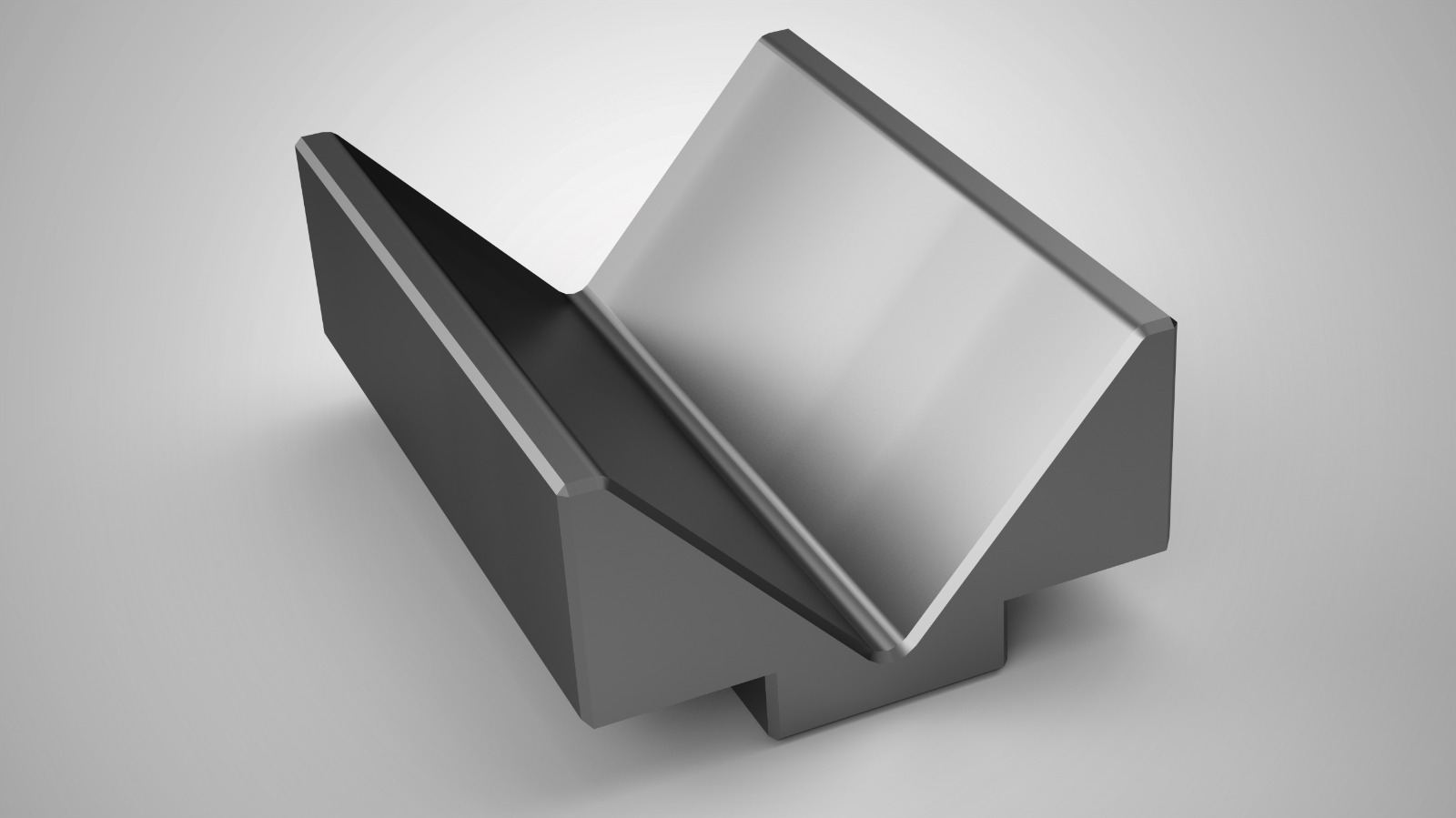

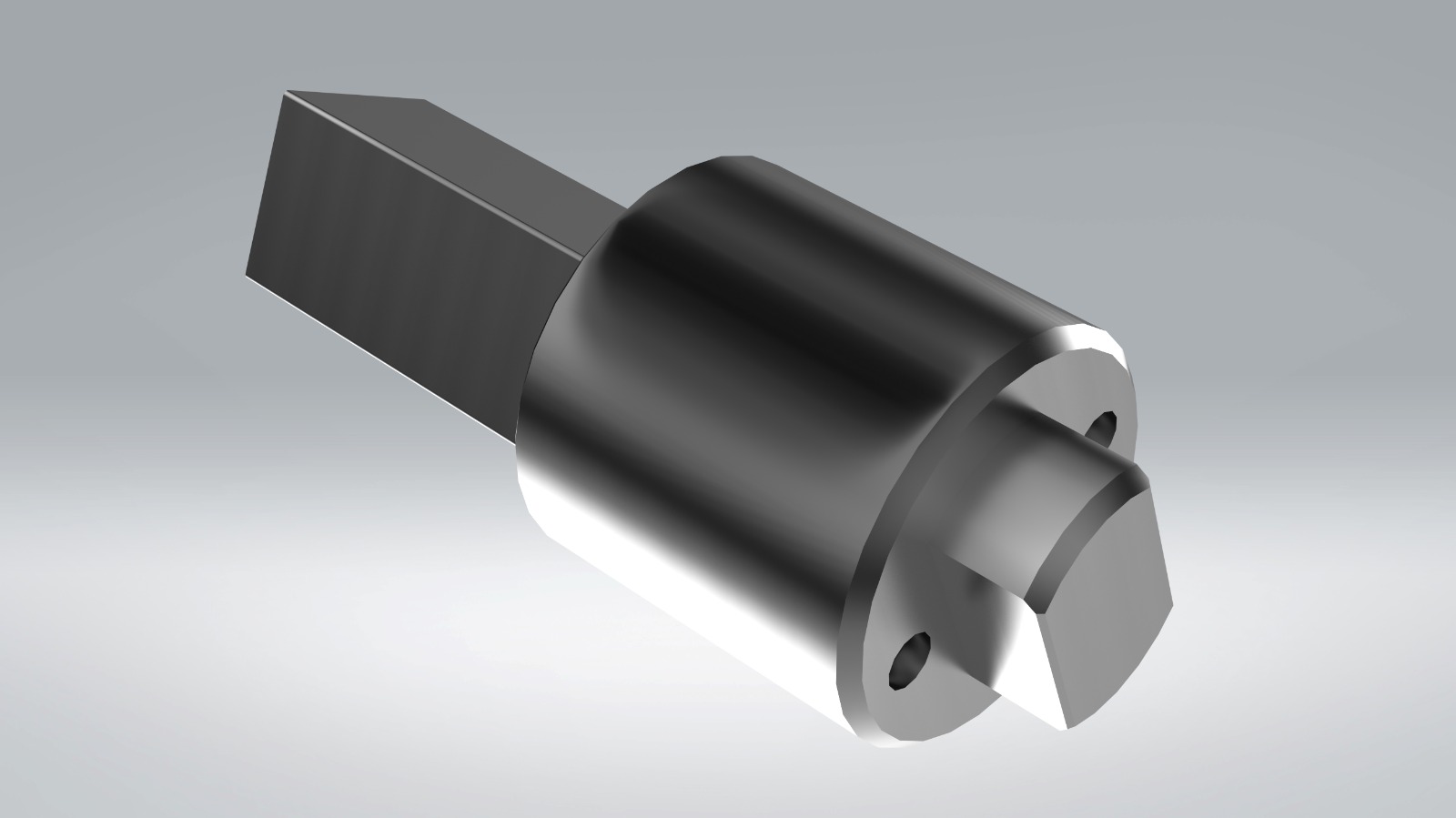

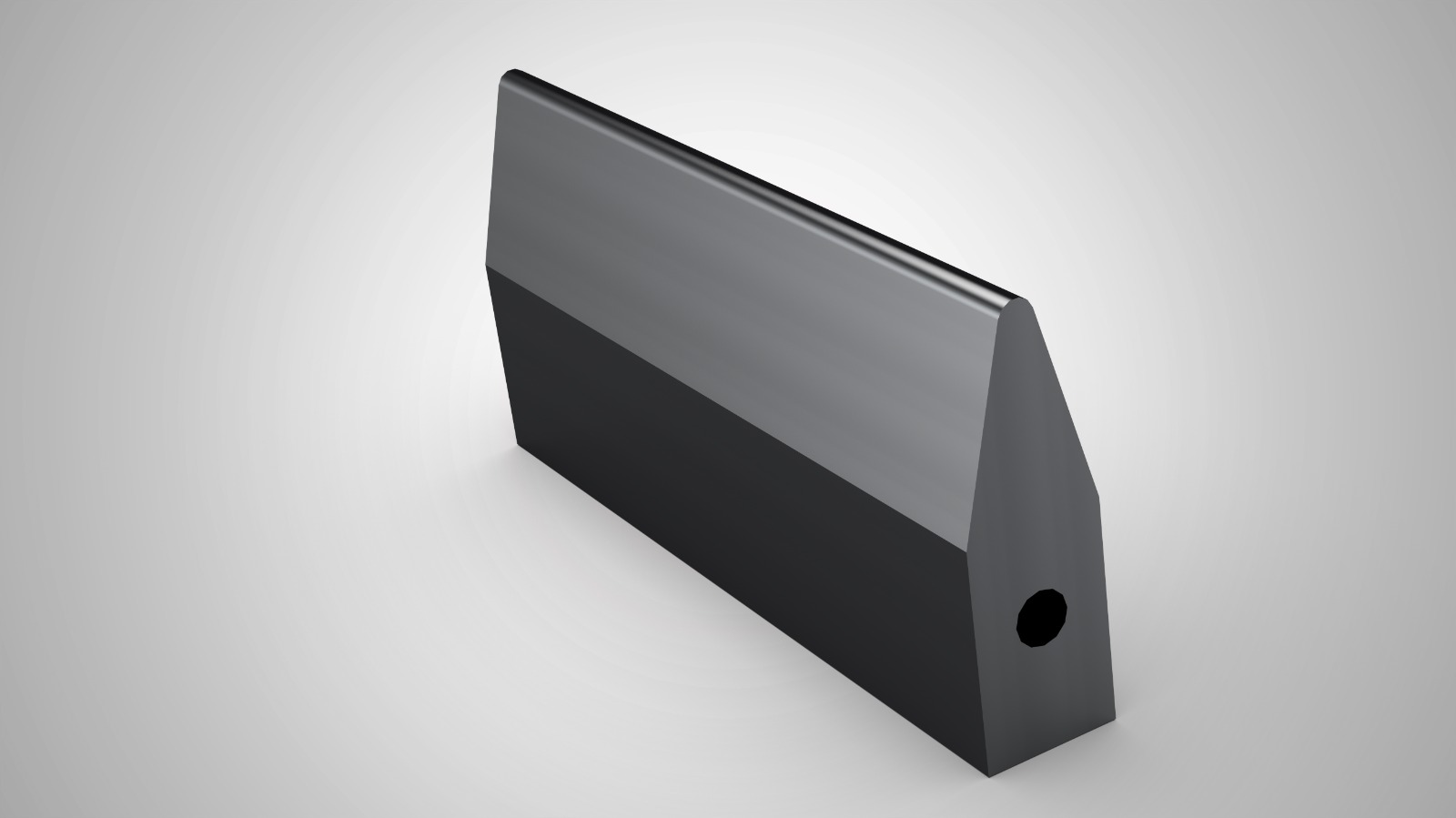

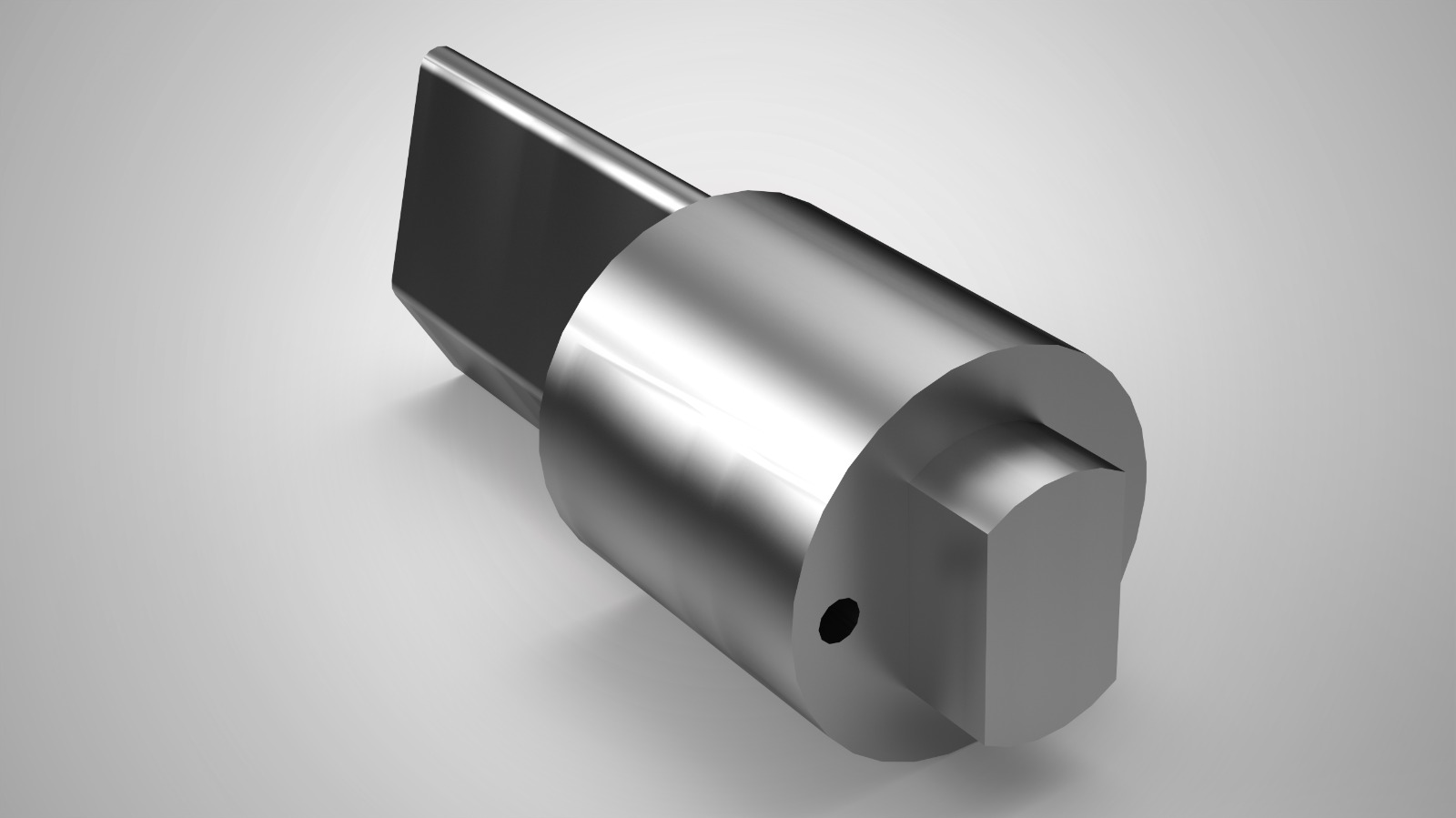

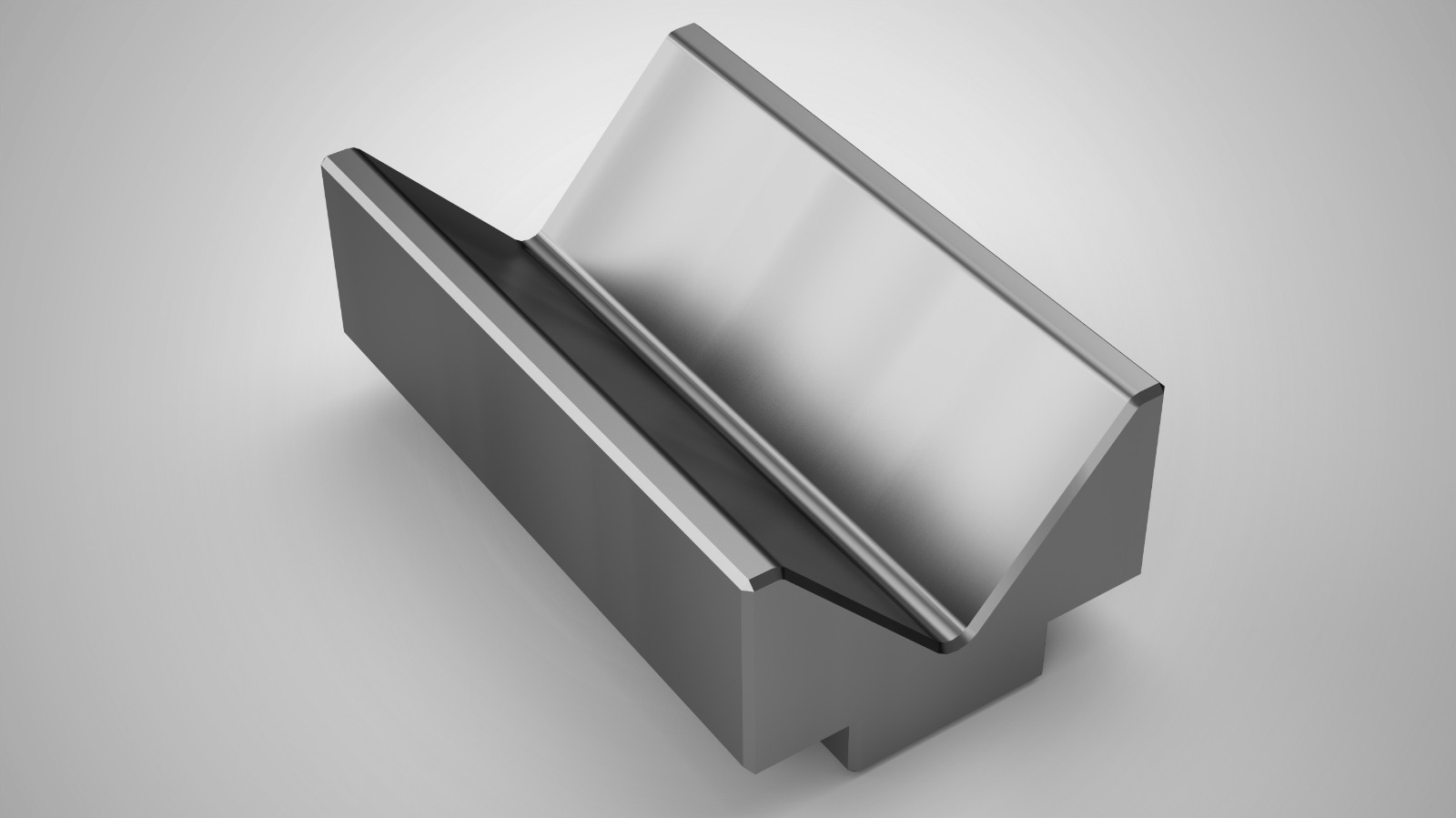

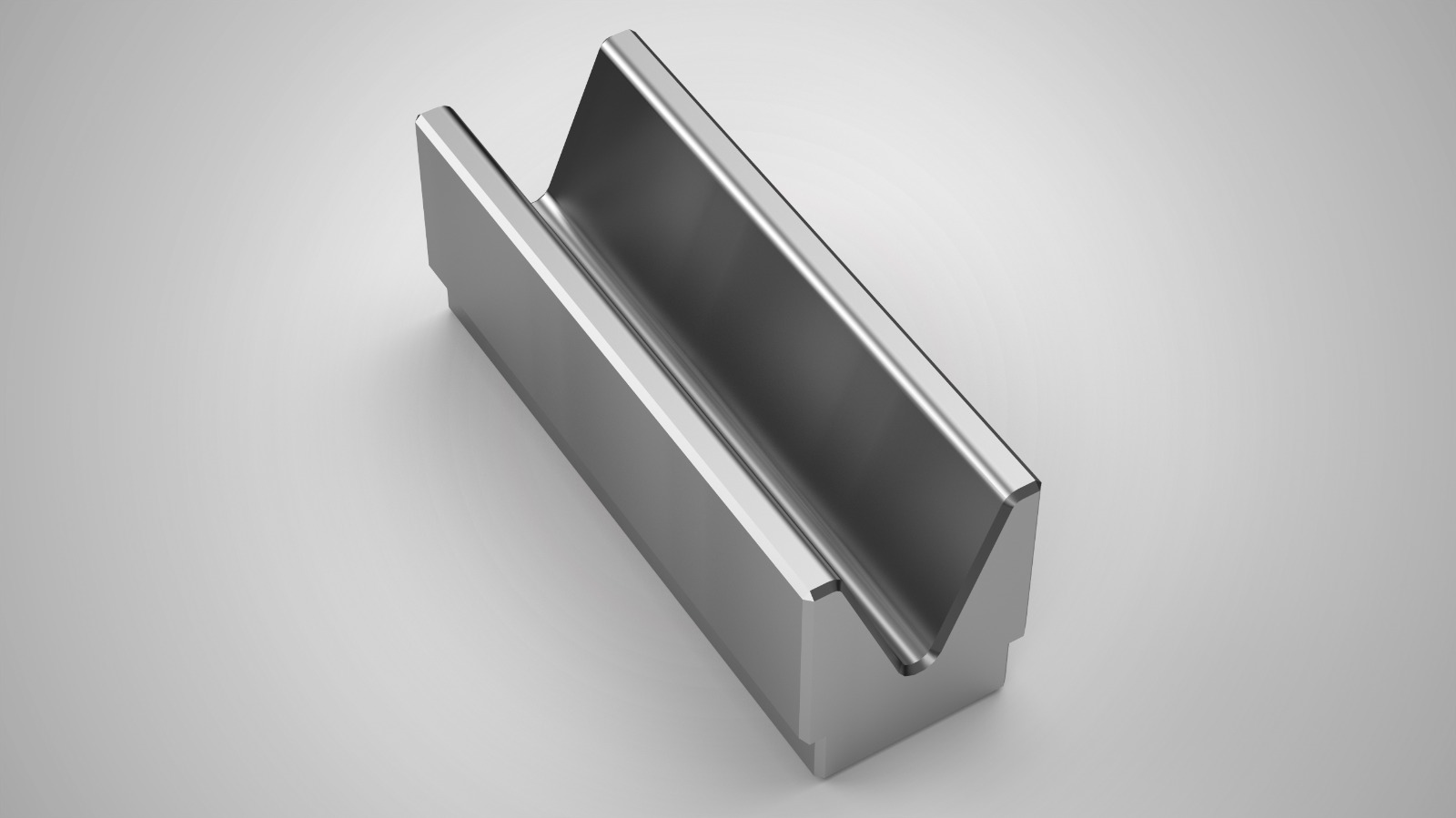

1 set of bending tooling is included
