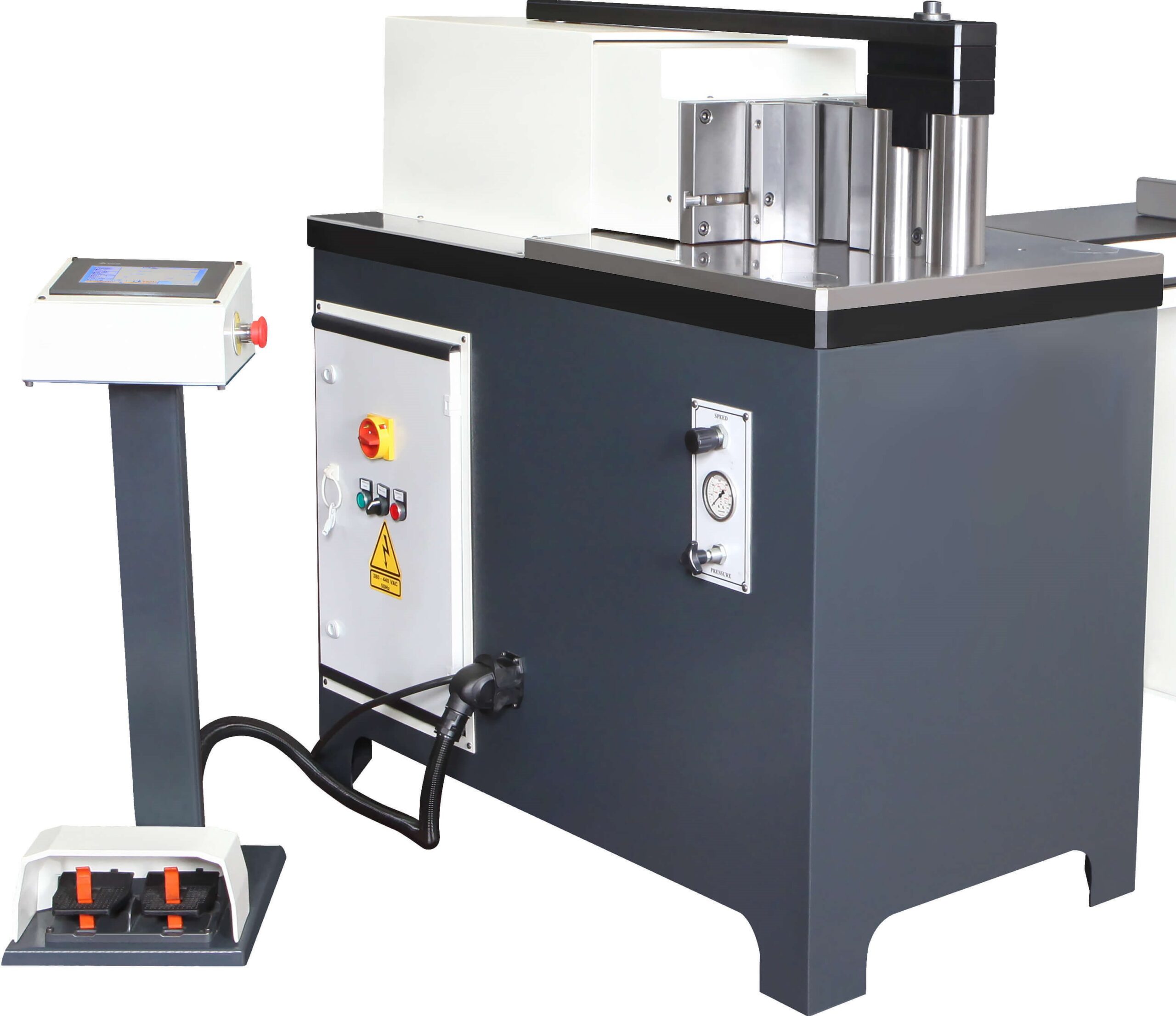

Hydraulic Horizontal Press HP 40

CHARACTERISTICS & SPECIFICATIONS

MODEL	:	HP 40
MAX PRESSURE (AT 200 BARS)	:	40 tf
OIL TANK CAPACITY	:	40 L
BENDING CAPACITY FLAT MATERIALS	:	200 x 24 mm
BENDING CAPACITY ROUND TUBES	:	60 x 5 mm
MAX STROKE	:	285 mm
DIAMETER OF BOLTS	:	80 mm
HEIGHT OF TOOLING	:	250 mm
WORKING SPEED	:	10 mm/s
RETURN SPEED	:	10 mm/s
MOTOR POWER	:	4 kW
NET WEIGHT	:	1,100 kg
SIZE OF THE TABLE (L x W)	:	660 x 1,250 mm
WORKING HEIGHT	:	930 mm
LENGTH OF THE MACHINE	:	1,250 mm
WIDTH OF THE MACHINE	:	650 mm
HEIGHT OF THE MACHINE	:	1,250 mm
SIZE OF PACKING (L x W x H)	:	700 x 1,280 x 1,750 mm

Solid fabricated steel machine body
Digital setting of bending angle
Manual or automatic operation
Hardened and ground components and tooling
Removable foot pedal control
Suitable for cutting, punching, bending/straightening, pipe bending (Optional tooling required)
Complies with CE Standards
1 set of bending tooling is included
