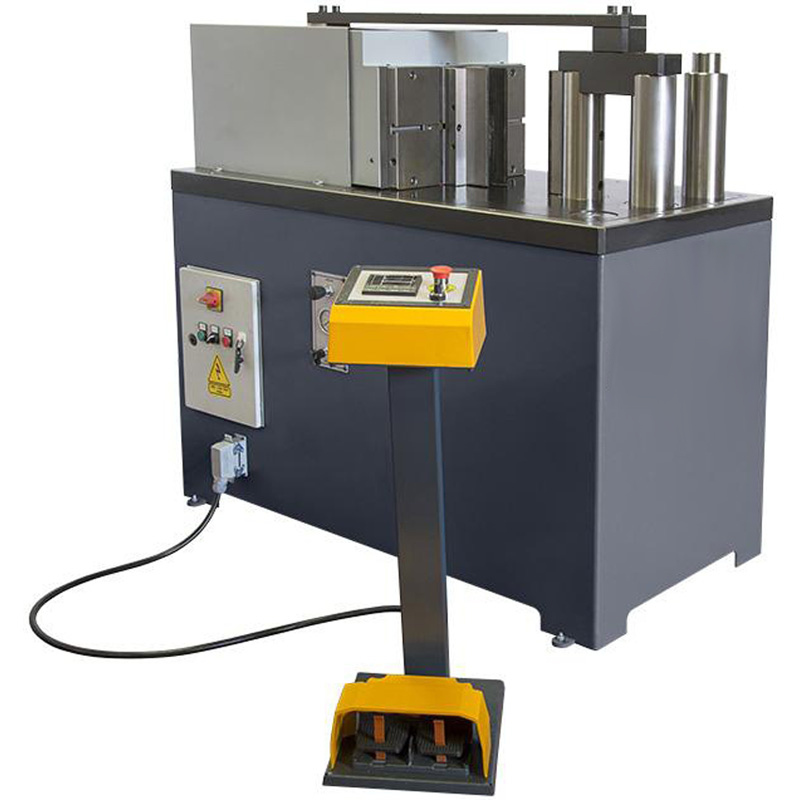

Hydraulic Horizontal Press HP 80

CHARACTERISTICS & SPECIFICATIONS

MODEL	:	HP 80
MAX PRESSURE (AT 200 BARS)	:	80 tf
OIL TANK CAPACITY	:	120 L
BENDING CAPACITY FLAT MATERIALS	:	300 x 25 mm
BENDING CAPACITY ROUND TUBES	:	90 x 9 mm
MAX STROKE	:	285 mm
DIAMETER OF BOLTS	:	105 mm
HEIGHT OF TOOLING	:	300 mm
WORKING SPEED	:	10 mm/s
RETURN SPEED	:	10 mm/s
MOTOR POWER	:	10 kW
NET WEIGHT	:	1,700 kg
SIZE OF THE TABLE (L x W)	:	750 x 1,425 mm
WORKING HEIGHT	:	930 mm
LENGTH OF THE MACHINE	:	1,430 mm
WIDTH OF THE MACHINE	:	750 mm
HEIGHT OF THE MACHINE	:	1,450 mm
SIZE OF PACKING (L x W x H)	:	1,500 x 750 x 1,800 mm

Solid fabricated steel machine body
Digital setting of bending angle
Manual or automatic operation
Hardened and ground components and tooling
Removable foot pedal control
Suitable for cutting, punching, bending/straightening, pipe bending (Optional tooling required)
Complies with CE Standards
1 set of bending tooling is included
