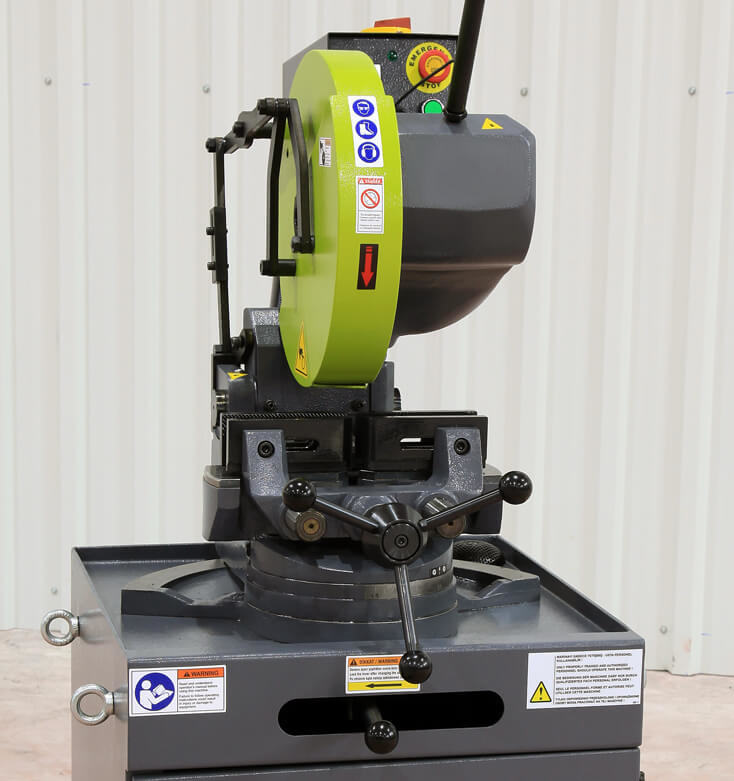

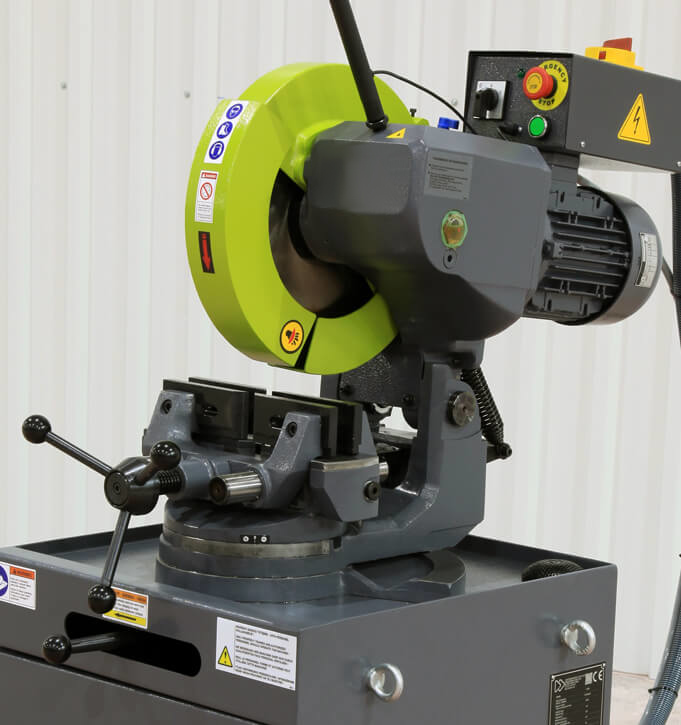

Manual Circular Saw Machine V 350
CHARACTERISTICS & SPECIFICATIONS
| CUTTING PARAMETER | ||
|---|---|---|
| MAXIMUM SAW DIAMETER | 350 mm | |
| SAW ANGLE | 90° | +/- 45° |
| ROUND MATERIAL DIAMETER (MAX.) | 115 mm | 110 mm |
| SQUARE MATERIAL (MAX.) | 100 x 100 mm | 90 x 90 mm |
| RECTANGULAR MATERIAL (MAX.) | 120 x 80 mm | 90 x 90 mm |
TECHNICAL SPECIFICATIONS
| MAIN VOLTAGE | 400 V |
| CONTROL VOLTAGE | 24 V |
| INSTALLED POWER | 4.7 kW |
| CURRENT | 1.85 A |
| SAW ENGINE | 1.3 – 1.8 kW |
| BORON OIL PUMP | 0.06 kW |
| AIR PRESSURE | 45 / 80 bar |
| SAW SPEED | 90° / +/- 45° |
SAW FEATURES
| SAW DIAMETER | 350 mm |
| SAW BORE DIAMETER | 32 mm |
| PIN HOLES | 2 x Ø11 mm |
| TiN COATING | Medium Hardness Steel |
| TiCN COATING | High Hardness Steel |
| TiAlN COATING | Stainless Steel |
DIMENSIONS
| WIDTH (MOST) | 600 mm |
| LENGTH (SIZE) | 1,000 mm |
| HEIGHT | 1,400 mm |
| NET WEIGHT | 210 kg |
| GROSS WEIGHT | 230 kg |
