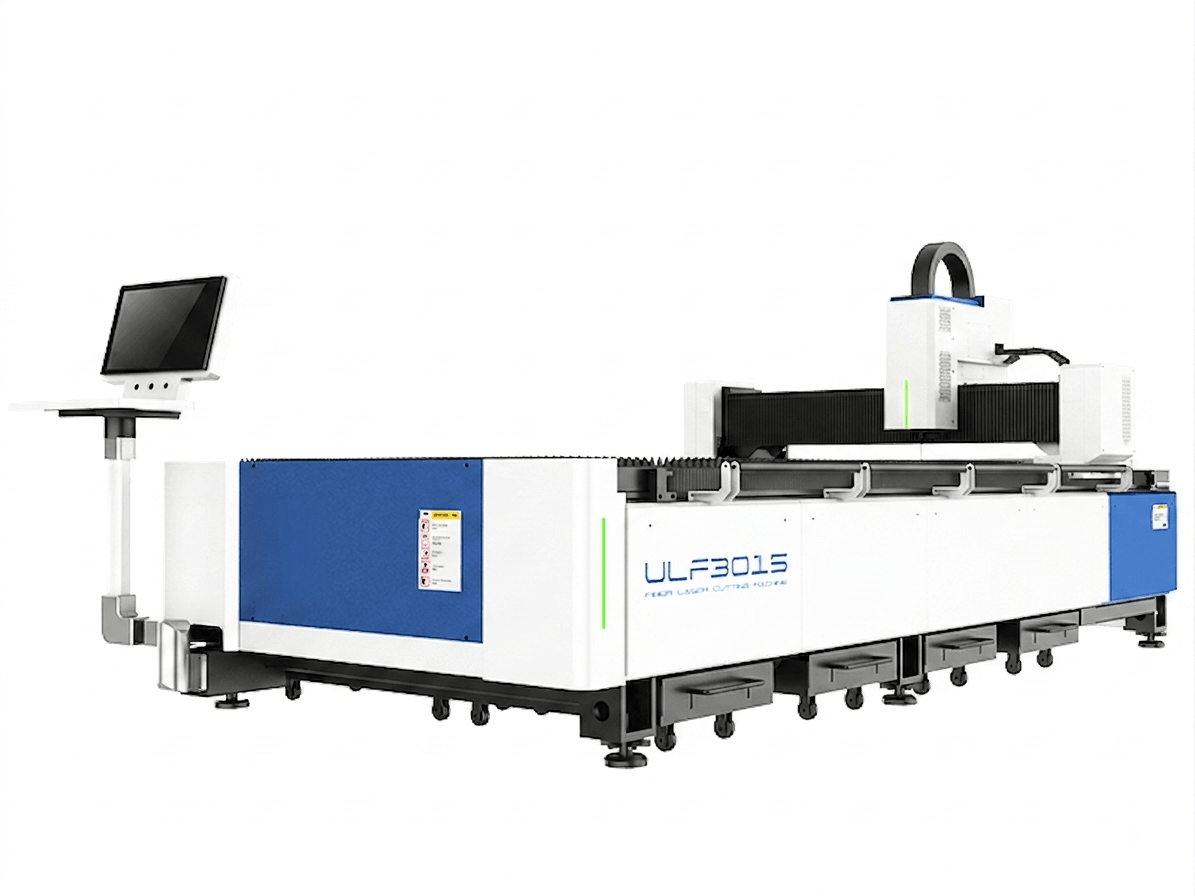

Single Table Fiber Laser Cutting Machine
| MODEL | : | ULF |
| LASER POWER | : | 1kW – 60kW |
| PROSSESING AREA | : | 3000x1500mm ~ 24000 x 3200mm |

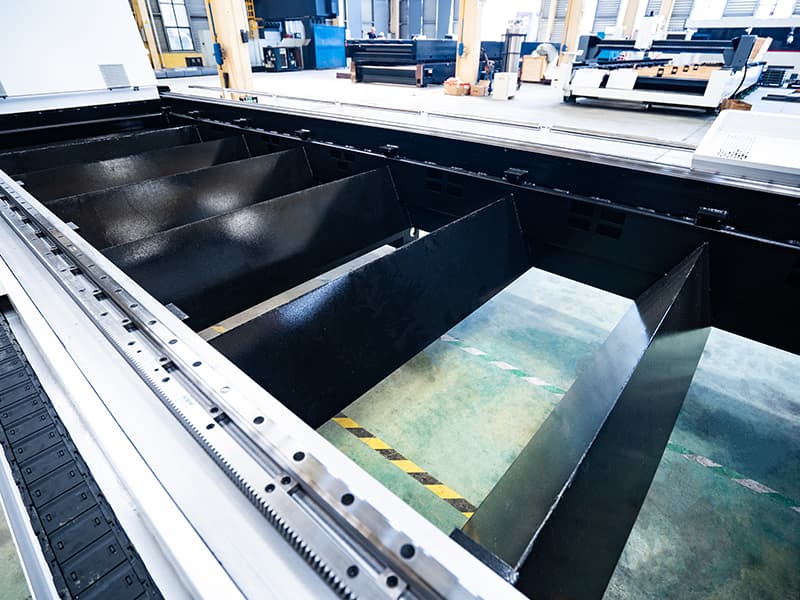

Mechanical Bed
- The internal structure utilizes a combination of hollow and fish-scale anti-burn design, providing comprehensive protection for the overall structure.
- The bed is welded using multiple rectangular pipes, with stiffeners placed inside the pipes to enhance its strength and tensile properties.
- The entire frame undergoes high-temperature annealing and is shot blasted at high speed. Additionally, stress relief technology is applied to effectively prevent bed deformation and ensure no deformation occurs even after 20 years of use.

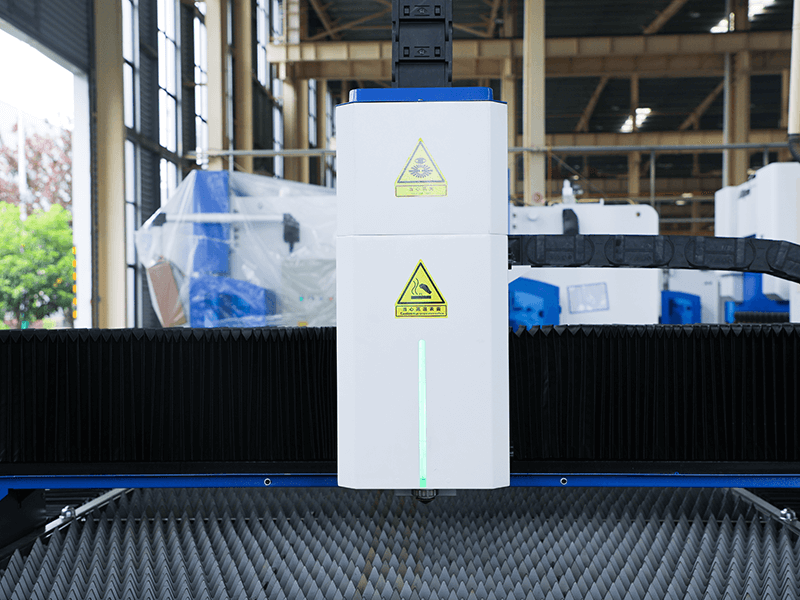

Beam
- Through finite element analysis, our design achieves both high rigidity and a lightweight construction, optimizing the performance of the product.
- This product boasts high speed, excellent dynamic characteristics, and rapid acceleration.

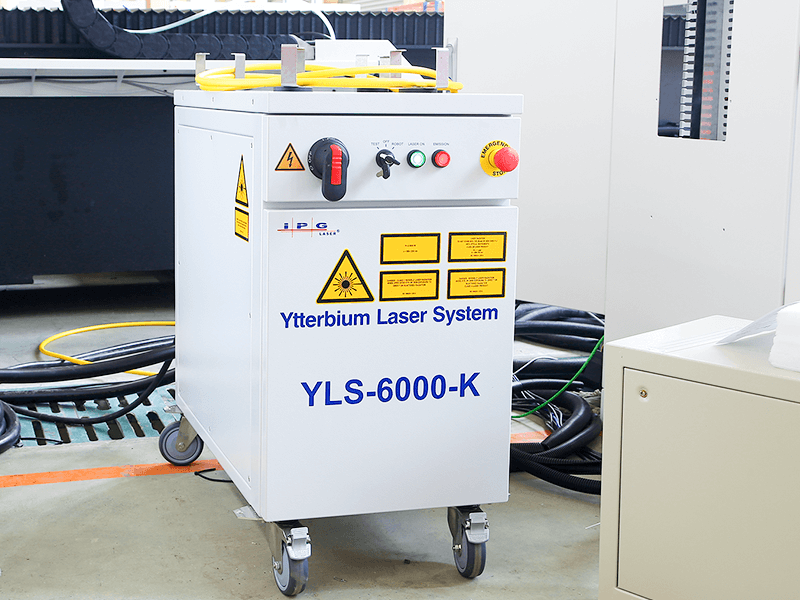

Laser Source
- Our fiber laser source lineup comprises renowned brands such as Raycus (China), n-Light (USA), and IPG (Germany), with power capacities ranging from 1000W to 20,000W.
- We offer a fiber laser source with a constant beam parameter product (BPP) across its full power range, ensuring good beam quality with a small spot size. Additionally, this source boasts an electro-optic conversion efficiency of over 30%.
- Our laser source boasts a modular “plug and play” design, with a compact and robust structure that enables effortless installation.

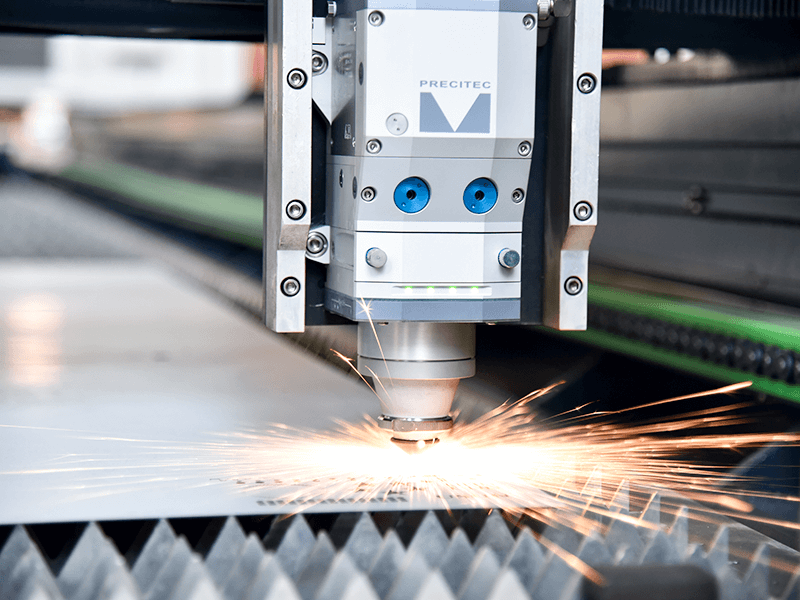

Cutting Head
- The auto-focusing laser cutting head has the ability to adjust its focus based on the thickness of the material being processed.
- This feature makes it suitable for processing sections with varying thicknesses, resulting in reduced cutting time and improved cutting quality.
- The cutting head’s patented anti-collision protection structure, along with its waste cutting micro-connection, prevents plate warping and enables high-speed and stable cutting operations.

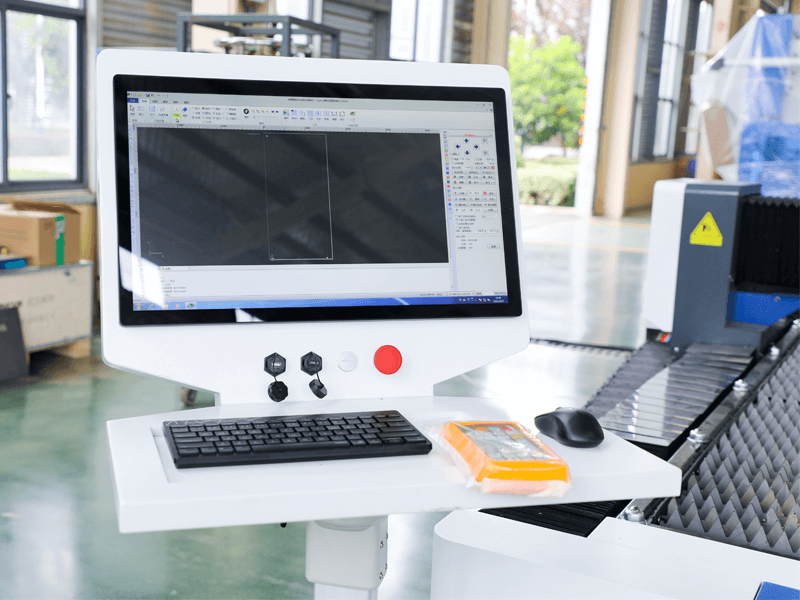

Control System
- Cypcut cutting software is designed to optimize the performance of fiber laser cutting machines.
- Cypcut cutting software boasts easy installation and straightforward debugging, coupled with outstanding performance. It also supports power-based speed adjustment, providing additional flexibility to its users.
- Additionally, the software allows for separate import linear speed settings and boasts a robust cutting process database.

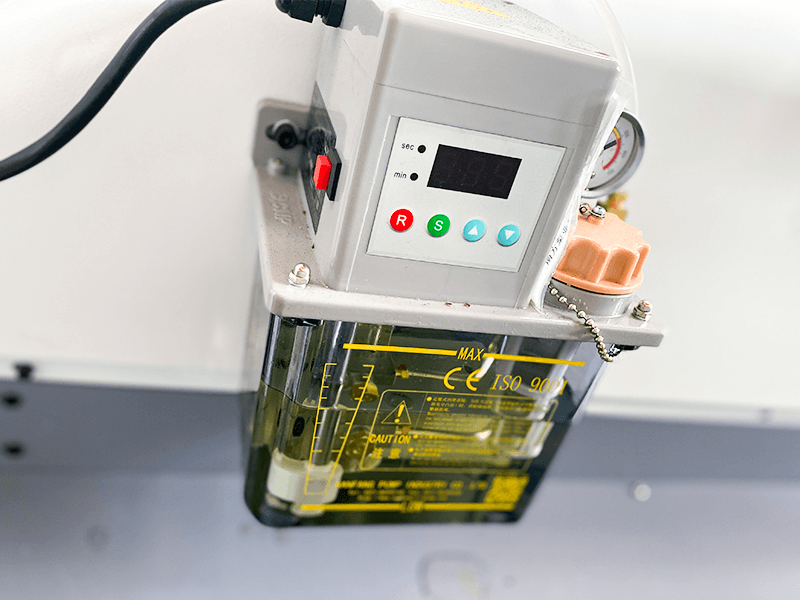

Automatic Lubrication
- The timed automatic lubrication system initiates and dispenses lubricating oil based on the machine’s operational schedule, making the process both expedient and convenient.

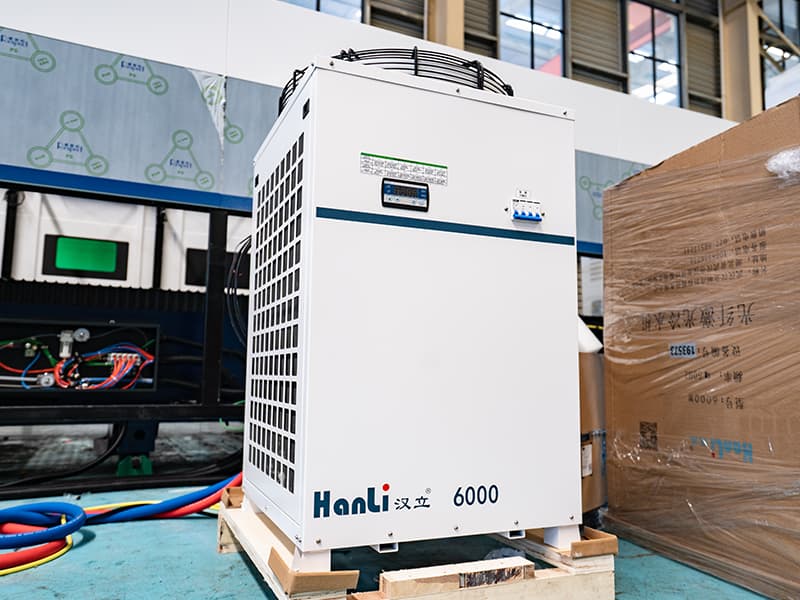

Water Chiller
- With features such as over-temperature alarm, flow protection, water level protection, and other safety alarm notifications.

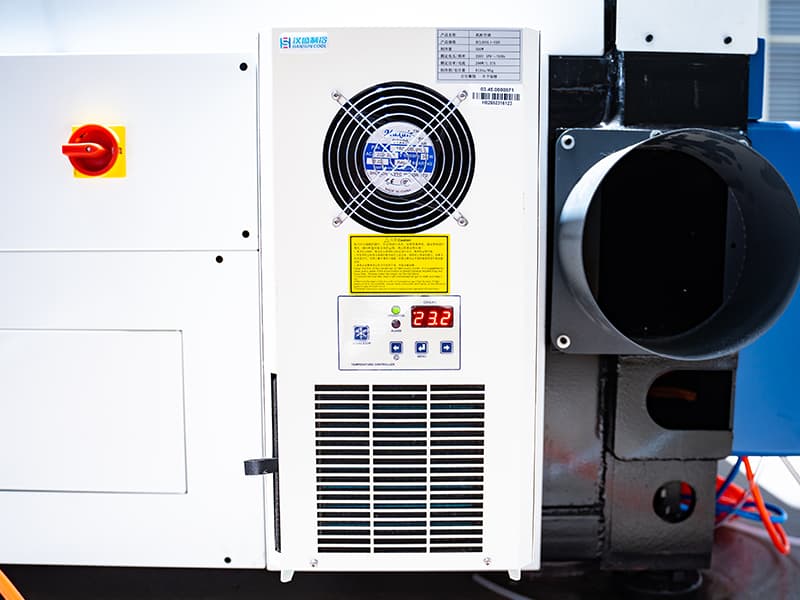

Air Cooler
- The purpose of this is to lower the overall temperature within the electrical enclosure and ensure its smooth and stable operation. This is achieved by facilitating the dissipation of heat generated by the electrical components.
