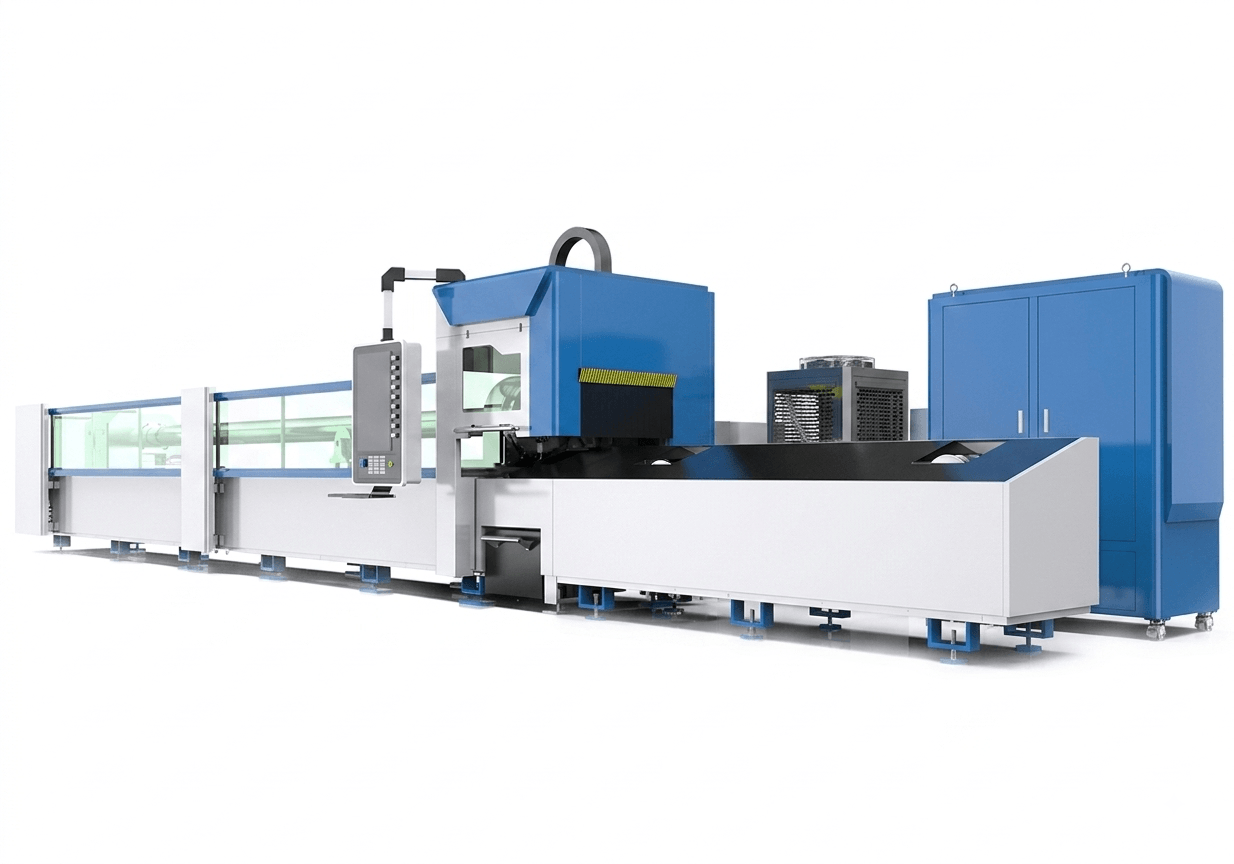

FPC Tube Laser Cutting Machine
| MODEL | : | FPC |
| LASER POWER | : | 1kW – 12kW |
| TUBE DIAMETER | : | 240mm – 550mm |
| TUBE CATEGORY | : | Round, Square, Oval, Rectangular, Triangle etc. |

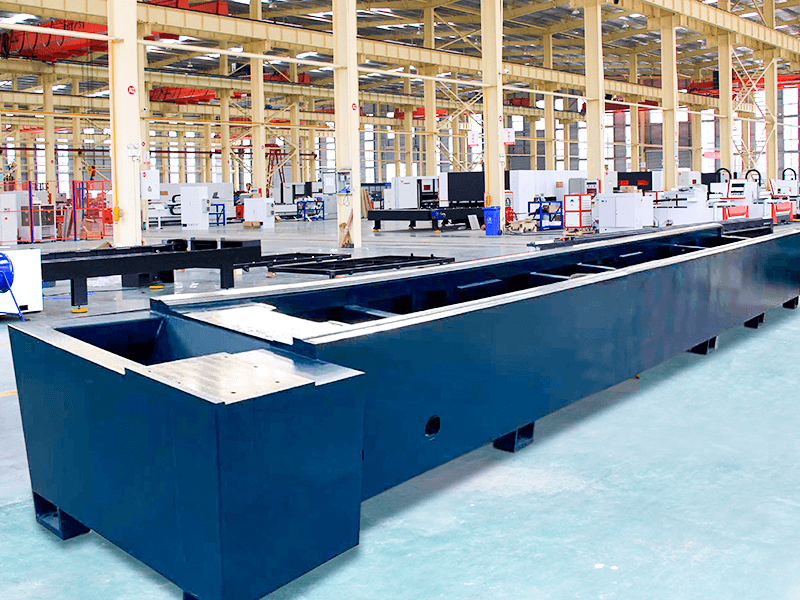

Mechanical Bed
- The bed has been fabricated using welded steel that is more than 8mm in thickness.
- The entire frame undergoes high-temperature annealing, followed by high-speed shot blasting and stress-relief techniques to effectively prevent bed deformation and ensure that the bed remains deformation-free even after 20 years of use.

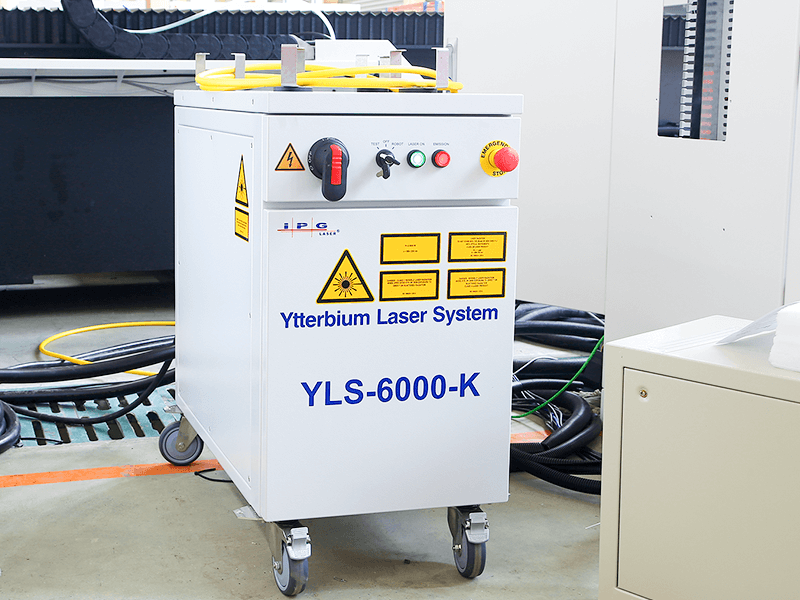

Laser Source
- Source are from renowned brands such as Raycus (China), nLight (USA), and IPG (Germany), with power ranging from 500W to 20,000W.
- Source offer constant BPP throughout the full power range, ensuring good beam quality with a small spot size. Additionally, our lasers have an electro-optic conversion efficiency of more than 30%.
- Sources feature a modular “plug-and-play” design that offers a compact and sturdy structure, making installation convenient and hassle-free.

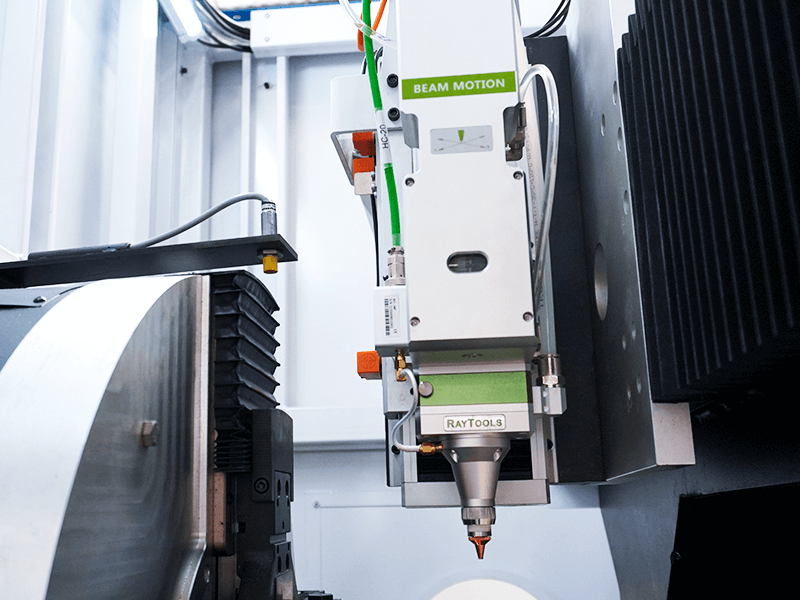

Cutting Head
- Auto-focusing laser cutting head is capable of adjusting the focus according to the material thickness, ensuring precise and efficient cutting.
- It is suitable for multi-focus sections, which significantly reduces cutting time and improves overall cutting quality.
- Features a patented anti-collision protection structure, and waste cutting micro-connections that prevent plate warping, allowing for high-speed and stable operation during cutting.

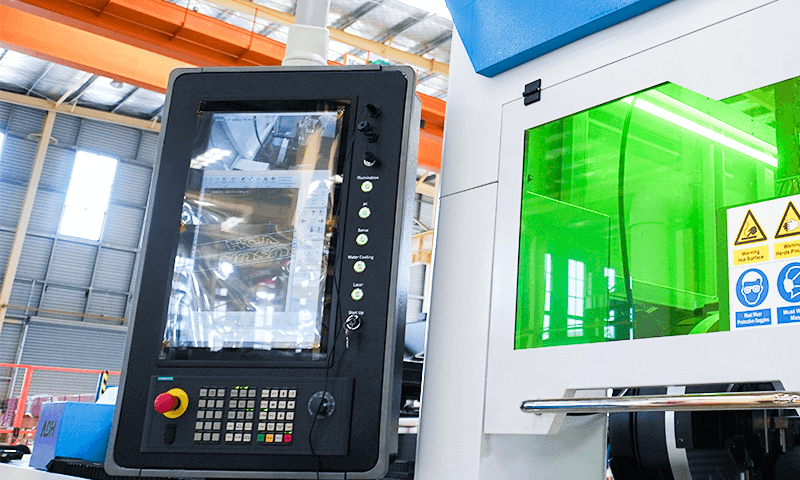

Control System
- Cypcut cutting software offers convenient installation, simple debugging, and excellent performance. It also supports speed adjustment with power, providing added flexibility and control during the cutting process.
- The software allows for separate import linear speed settings and features a powerful cutting process database, providing greater customization and precision in the cutting process.

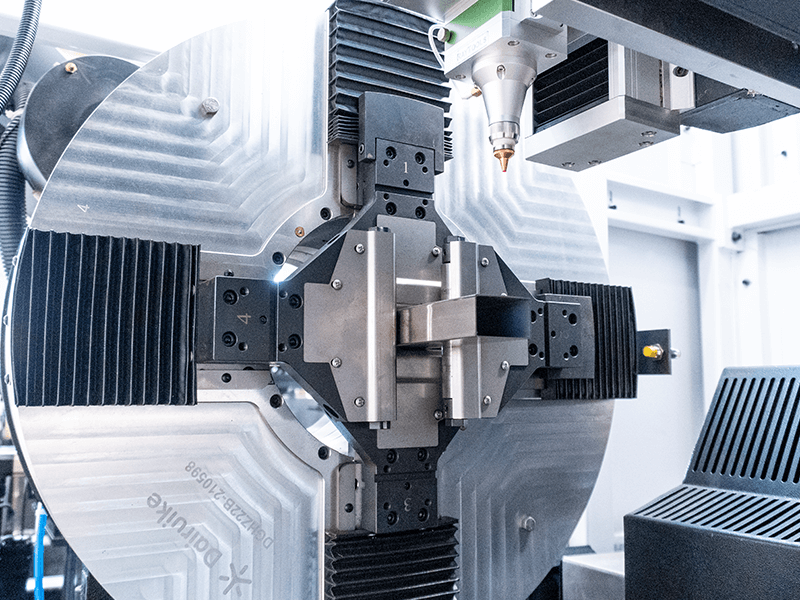

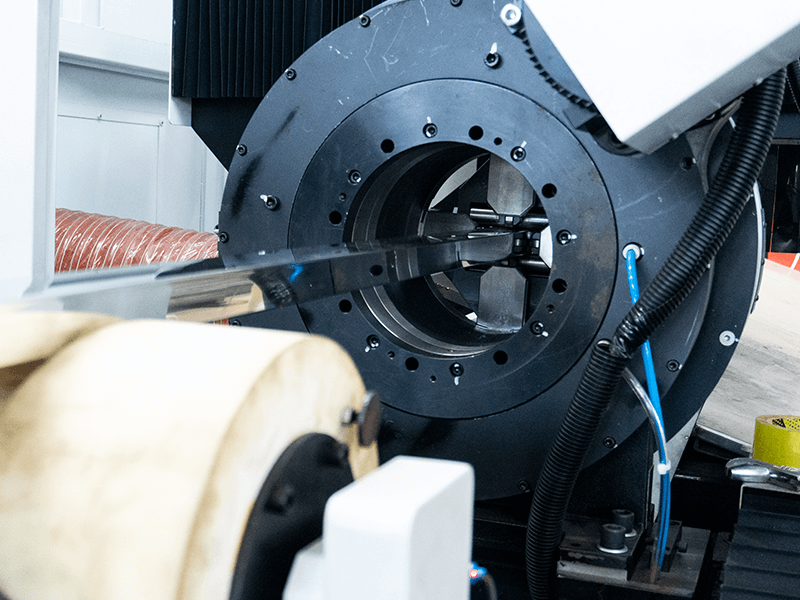

Pneumatic Chuck
- The visual chuck features a fully automatic double pneumatic chuck capable of full-stroke clamping within 15-220mm, eliminating the need for claw replacements.
- The single claw design features high thrust and strong bearing capacity, while also maintaining a high rigidity to prevent material from falling off the L-shaped claw.
- The single claw design features high thrust and strong bearing capacity, while also maintaining a high rigidity to prevent material from falling off the L-shaped claw.
- We offer the option to customize a 360mm diameter chuck to suit your specific needs.
Oversized Front Chuck
- The chuck is specially designed to support large-diameter pipes and tubes, providing added versatility and efficiency in the cutting process.

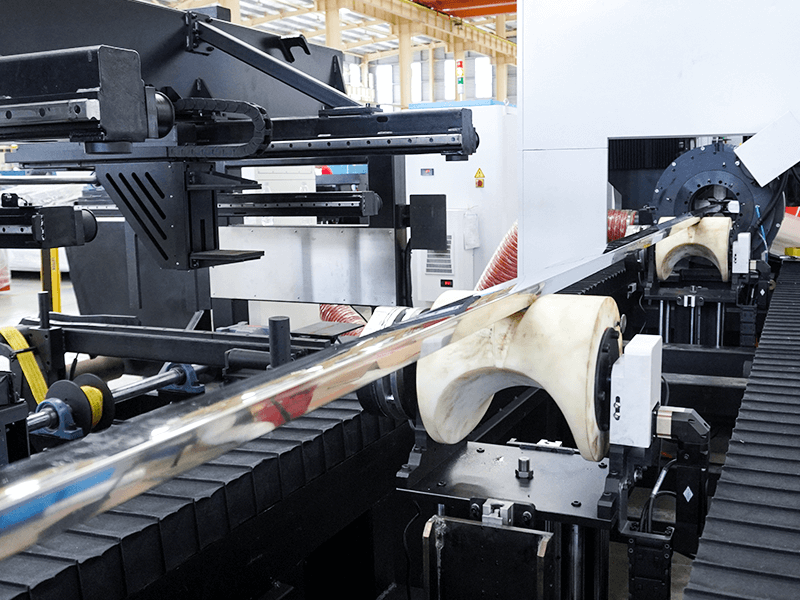

Front & Rear Auxiliary Support
- Allow to support long pipes and tubes during the cutting process.

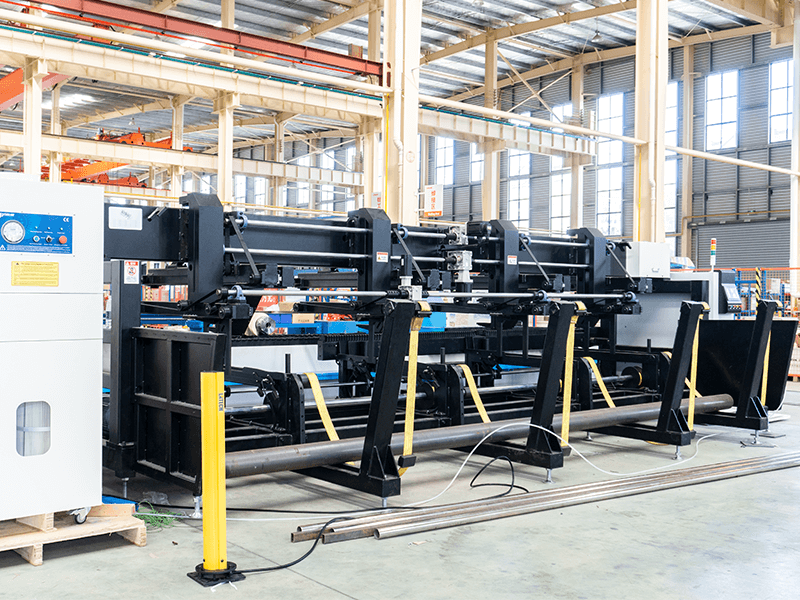

Automatic Loading Device
- Automatic Loading Device
