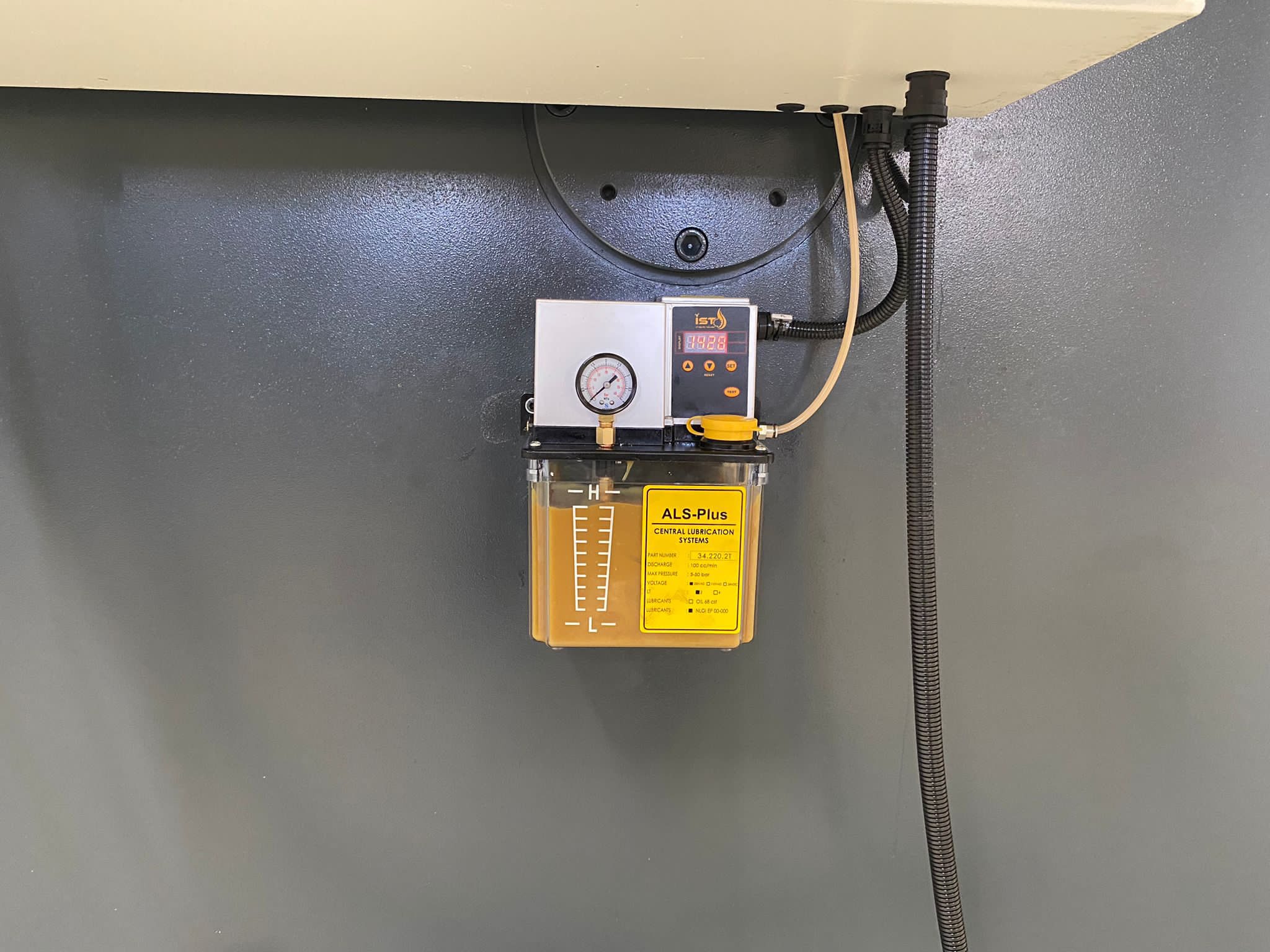

Angle Rake Hydraulic Shears

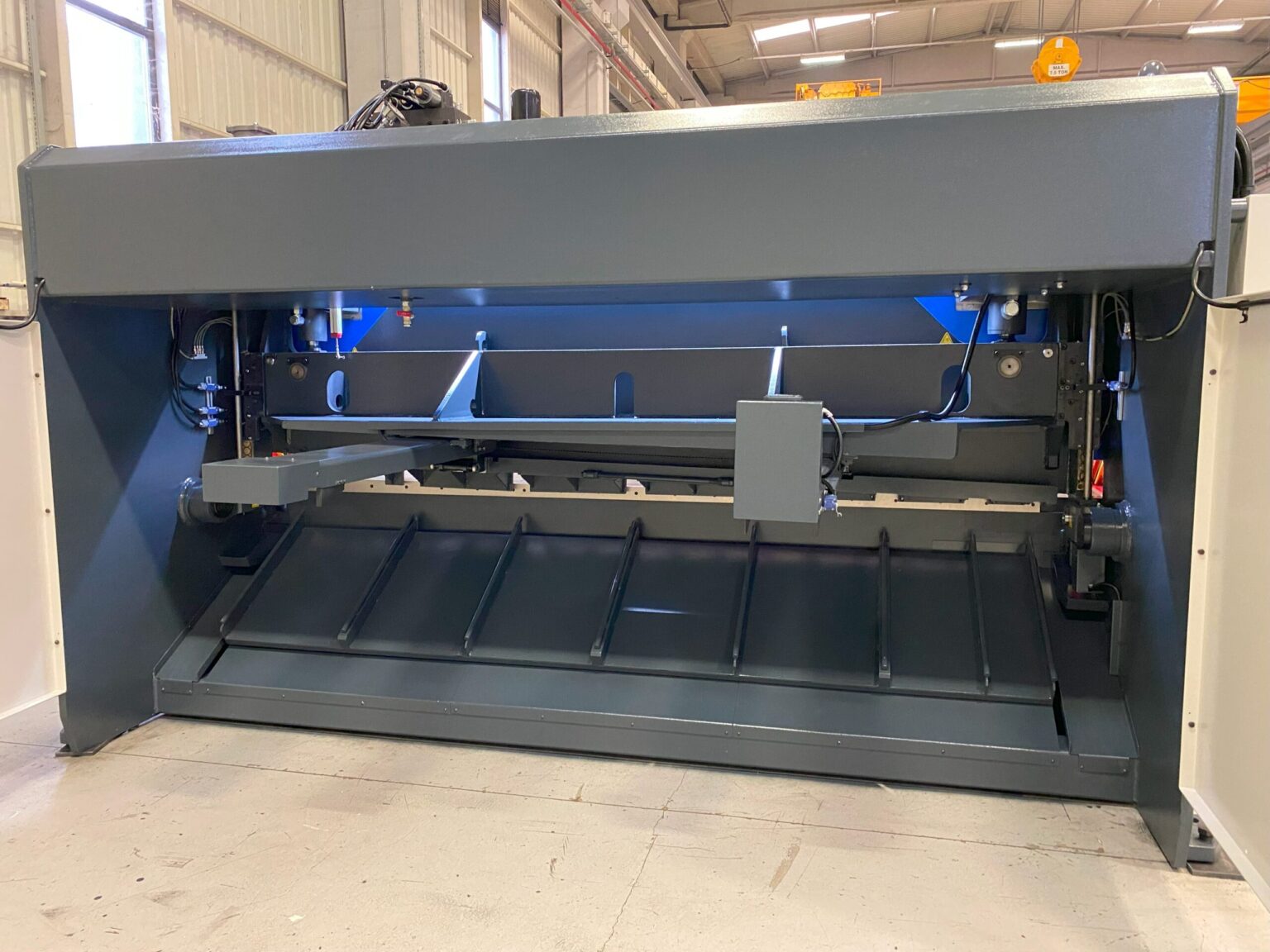

Pneumatic sheet support with 1 or 2 step selections with extended arms reaching to the blades

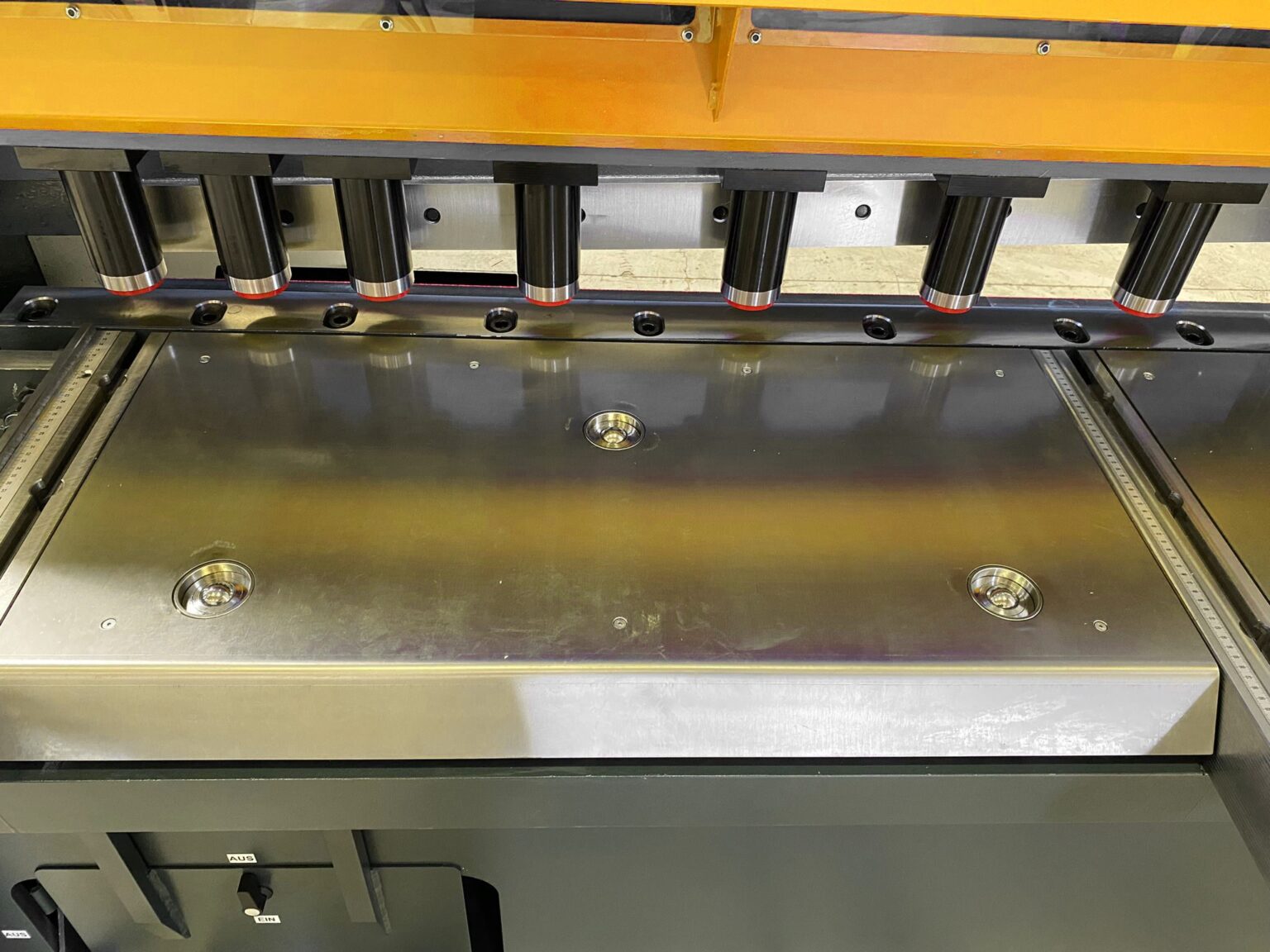

Hydraulic fingers hold down feature as standard.

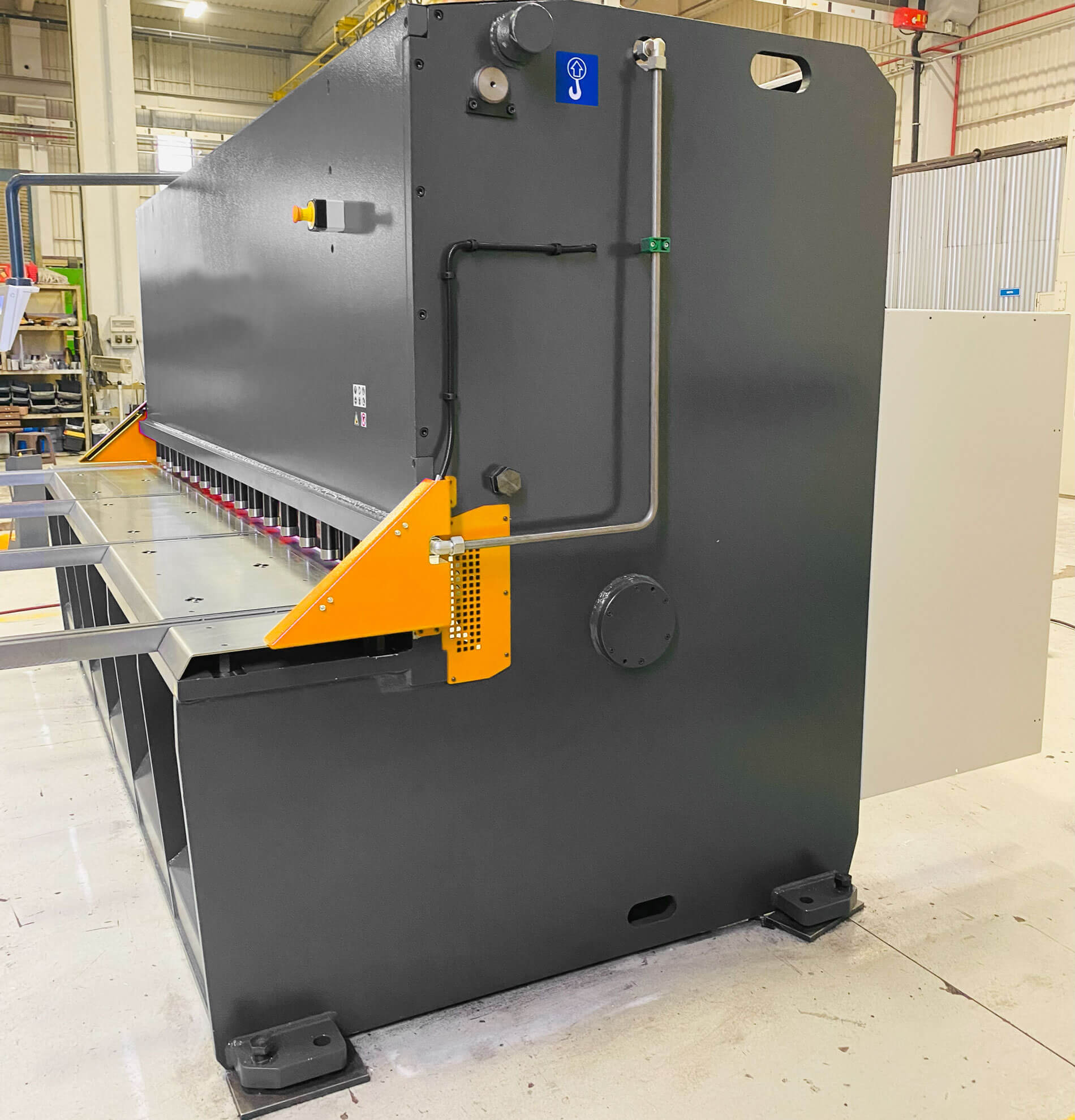

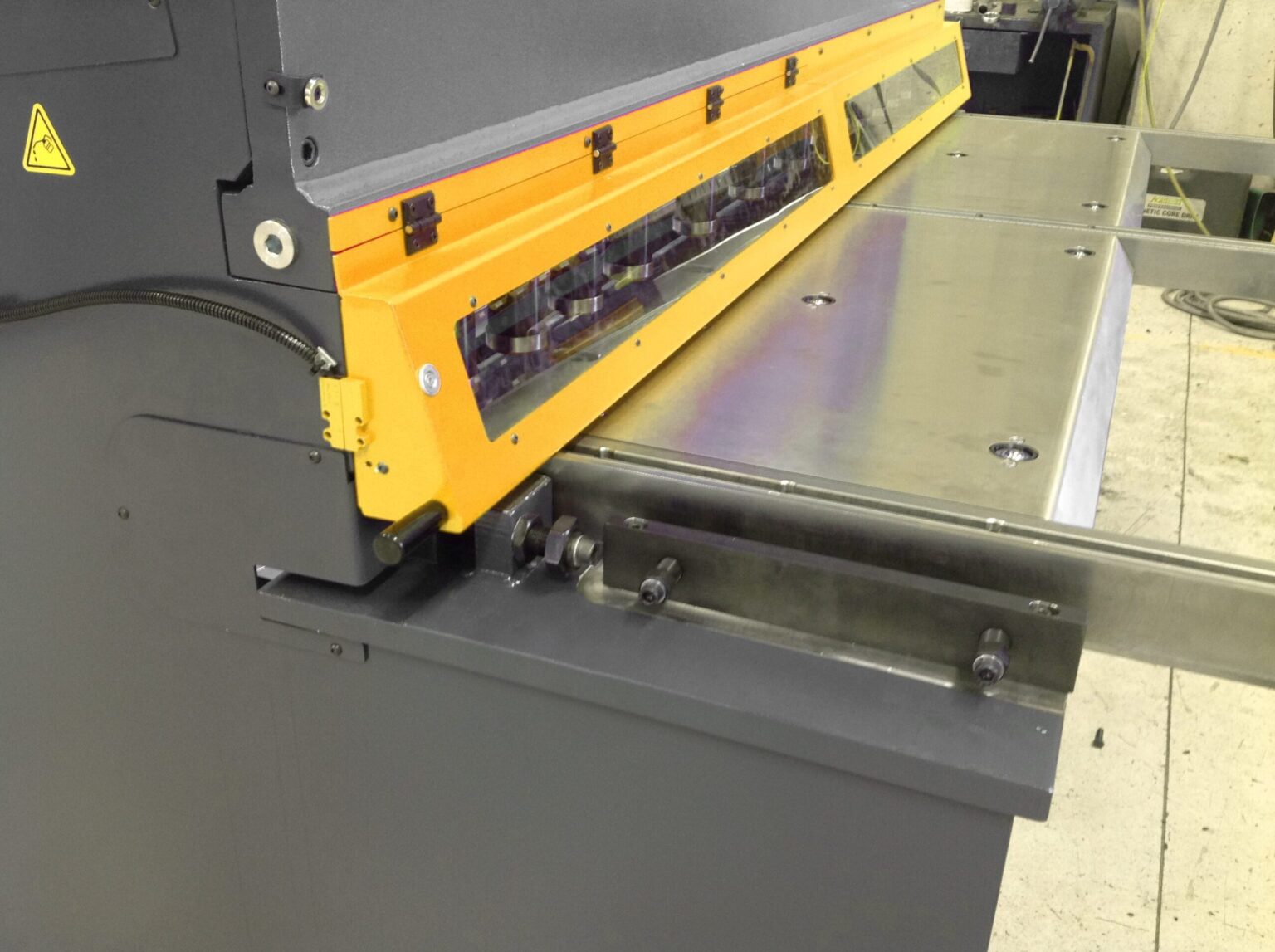

Liftable protection frame

ELECTRONIC PROGRAMMER

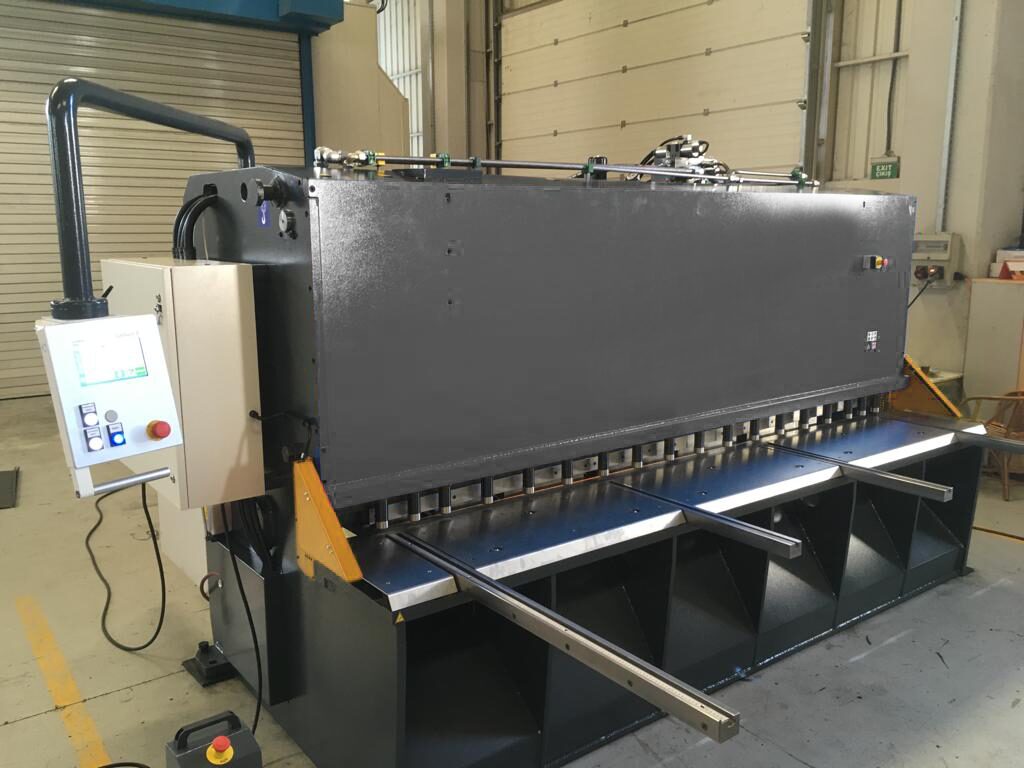

Touchscreen Cybelec Cybtouch 8G for automatic control of:

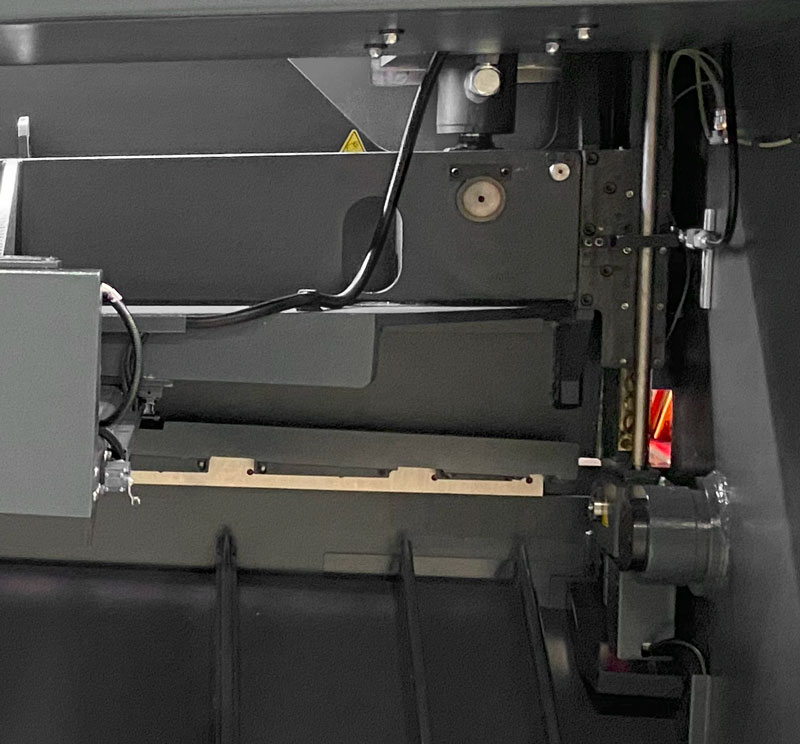

Motor-driven back gauge with two speeds A.C. motor and recirculation ball screws and linear rod guides
Motorised blade distance adjustment with dimensional mechanical control
Spherical balls in table for easy sheet movement (Transfer balls)
Stainless steel table tops

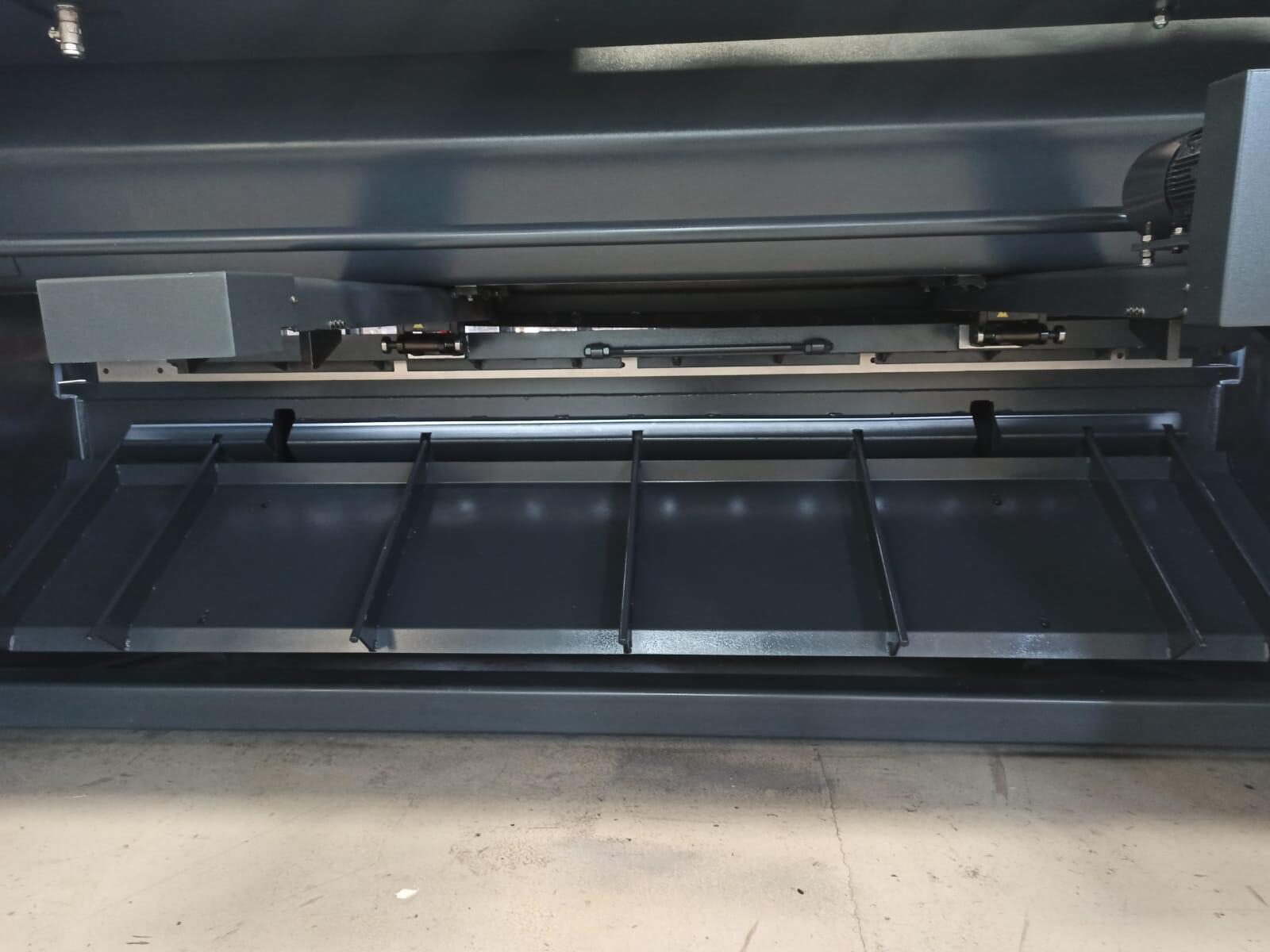

Sheet slider at rear
Side squaring arm 1500mm
Standard extension arms 1000mm
Cutting light & wire
Induction hardened and ground Blades for mixed cutting
Control foot pedal
Instruction and maintenance manual
Machine according to standard 2006/42/CE and CE certificate

Angle Rake Models	RAKEX 3006	RAKEX 3010	RAKEX 3013	RAKEX 3016	RAKEX 3020
Capacity (length x cutting capacity)	3060×6	3060×10	3060×13	3060×16	3060×20
Cutting performance for material tensile strength 400 N/mm²	6	10	13	16	20
Cutting performance for material tensile strength 600 N/mm²	4	8	10	13	16
Rear stop speed	150	150	150	150	150
Cutting angle (min/max)	0,5°- 2°	1°- 2,5°	1°- 2,5°	1°- 2,5°	1°- 2,5°
Max. strokes for full cutting length (min/max)	20-25	15-24	14-20	13-24	10-22
Number of hold-down units	18	13	13	12	12
Oil tank capacity	310	280	280	580	650
Table length	3580	3600	3640	3680	3700
Table depth	540	670	700	720	700
Table height	860	900	900	900	950
Machine body depth	1710	2200	2300	2850	2600
Length approx.	3900	4200	4200	4180	3800
Width/depth approx. (with Back Fence and Front arms)	3900	4150	4250	4800	4550
Height approx.	2100	2300	2350	2800	2800
Weight approx. (kg)	10000	13550	16200	19550	27050
Drive motor output	11	22	30	37	45
Backgauge Stroke	1000	1000	1000	1000	1000
