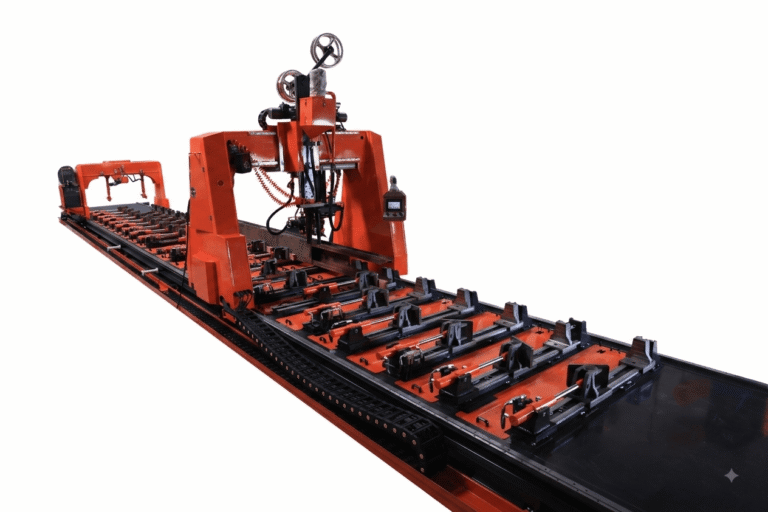

Chassis Welding Systems
Versatile Chassis Processing: Designed to assemble and weld various sizes and types of trailer chassis and beams.
Integrated Clamping & Alignment: Features heavy-duty mounting plates and pressure apparatus to ensure precise structural alignment.
Dual-Torch Mechanical Tracking: Allows a single operator to perform simultaneous two-way precision welding with mechanical seam tracking.
Flexible Welding Tech: Adaptable to either MIG/MAG or Submerged Arc Welding (SAW) systems based on project requirements.
Consistent Weld Quality: Delivers high-strength, uniform weld seams designed to withstand heavy transportation loads.

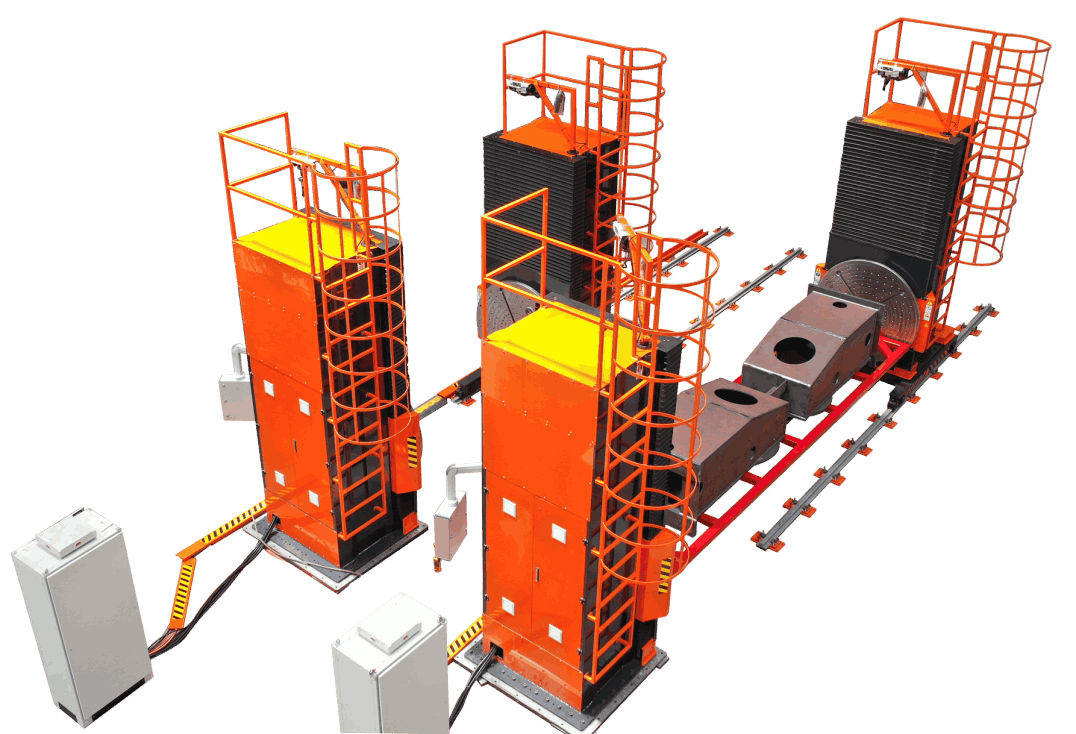

Single Axis Positioners
Optimized Positioning: Rotates and tilts workpieces to ideal angles, significantly shortening operational time and improving ergonomics.
Customizable Capacity: Tailored solutions available to accommodate various workpiece sizes, weights, and specialized operational functions.
Multi-Industry Application: Versatile system suitable for welding, industrial painting, sandblasting, and coating preparation.
Improved Processing Quality: Ensures consistent, high-precision processing by providing optimal access to complex component joints.
Robust Heavy-Duty Build: Engineered for continuous stability and smooth rotation under high workload conditions.

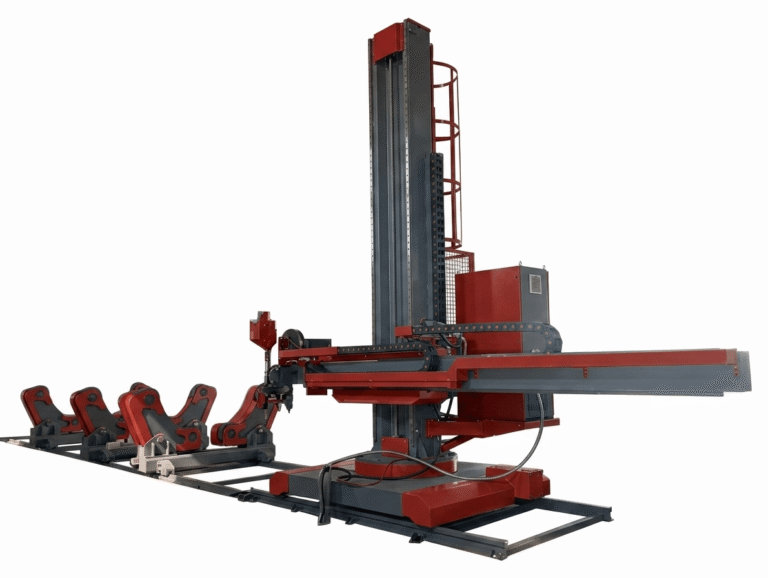

Column & Boom Type Welding Systems
Large-Scale Fabrication: Designed for high-precision longitudinal and circular welding of giant tanks, tankers, crane booms, and box beams.
Dual Welding Modes: Executes longitudinal welds via column/boom travel, and circular welds by integrating with motorized rotators.
Heavy-Duty Stability: Rigid structural design ensures vibration-free torch tracking over extended height and reach spans.
Versatile Automation: Easily compatible with Submerged Arc (SAW), MIG/MAG, or TIG welding systems for seamless production.
Boosted Efficiency: Minimizes manual intervention and setup times, significantly accelerating heavy industry welding workflows.

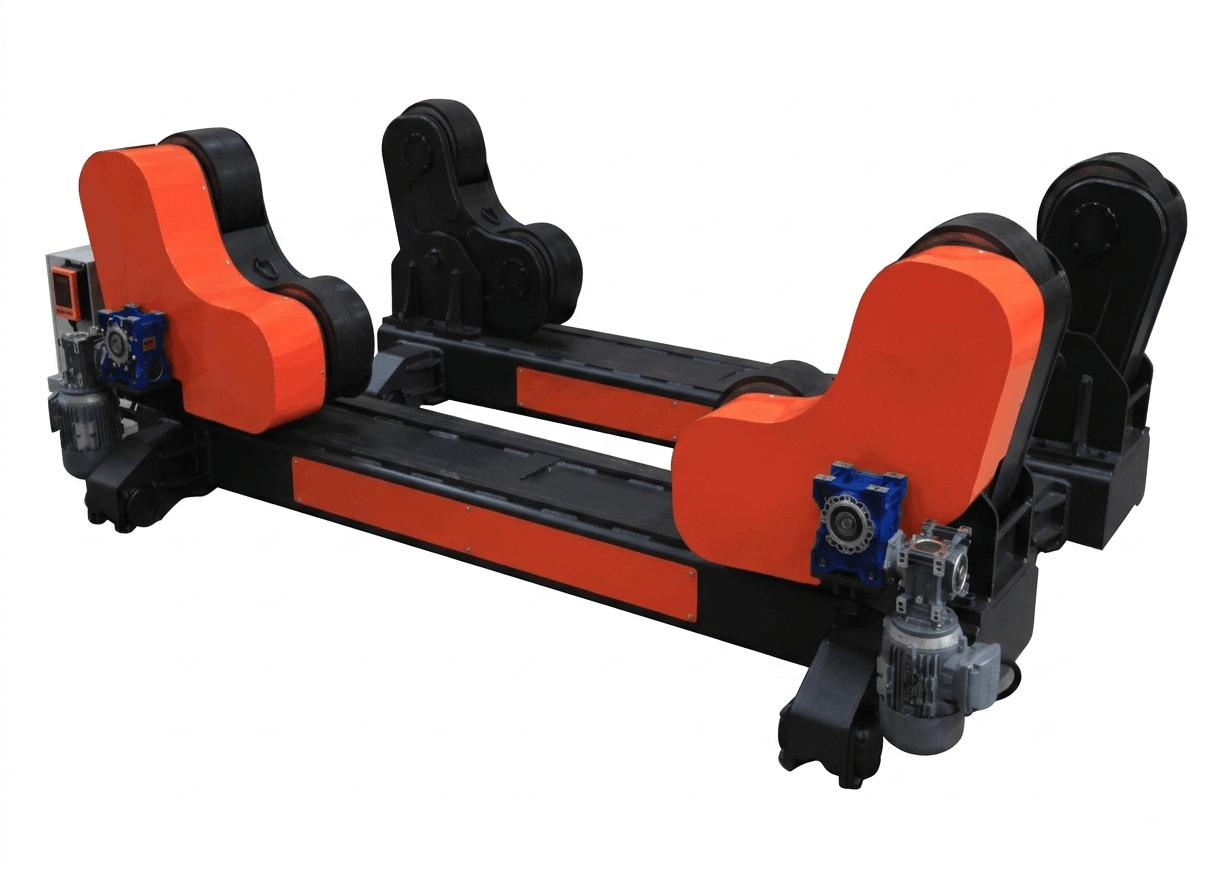

Rotators
Heavy-Duty Load Capacity: Designed to support and rotate large-scale cylindrical workpieces like tanks, pressure vessels, and heavy tubes.
Precision Speed Control: Rotates heavy components at exact required welding speeds to ensure smooth, continuous weld seams.
Motorized & Idler Units: Features one powered drive unit and independent idler units to easily accommodate varying workpiece lengths and weights.
Anti-Slip Coated Wheels: Specially designed wheels coated with high-friction, non-glide materials to prevent slippage and protect workpiece surfaces.
Flexible Configurations: Wheel spacing and unit alignment can be quickly adjusted based on specific tank diameters and dimensions.
Horizontal Beam Welding Equipment
Versatile Beam Automation: Designed to weld truck chassis carrier beams, overhead crane beams, and built-up steel structural sections.
Precision Hydraulic Pressing: Holds and secures workpieces under continuous pressure to achieve exact alignment and correct angular welding surfaces.
Flexible Capacity: Easily adjusts to various workpiece sizes for welding crane booms, chassis parts, and heavy structural I/H beams.
High-Quality Weld Seams: Automated torch guidance delivers uniform, high-strength welds built to withstand heavy structural loads.
Optimized Work Efficiency: Significantly reduces manual setup time and labor costs in heavy steel structure fabrication.

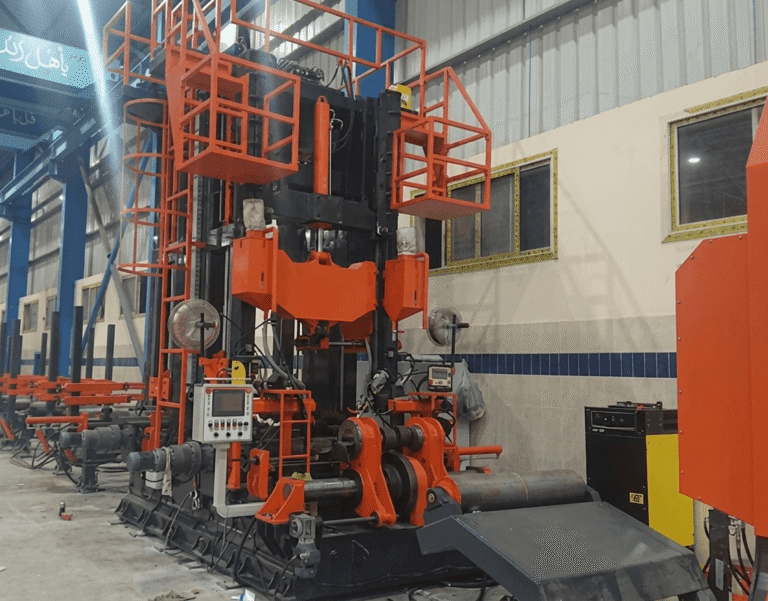

H Beam Welding Equipment
Dual-Surface Simultaneous Welding: Automatically welds both sides of H, I, and T-beams simultaneously for maximum efficiency.
In-Line Flange Straightening: Integrated heavy-duty pressure tools continuously straighten the beam, preventing warping and thermal bending.
Continuous Pressure Guidance: Holds and guides the workpiece under continuous top and side pressure during the entire welding cycle.
High Structural Quality: Delivers uniform, high-strength welds ideal for heavy steel construction and structural frameworks.
Customizable Configurations: Adaptable to various beam sizes and dimensions to meet specific project requirements.

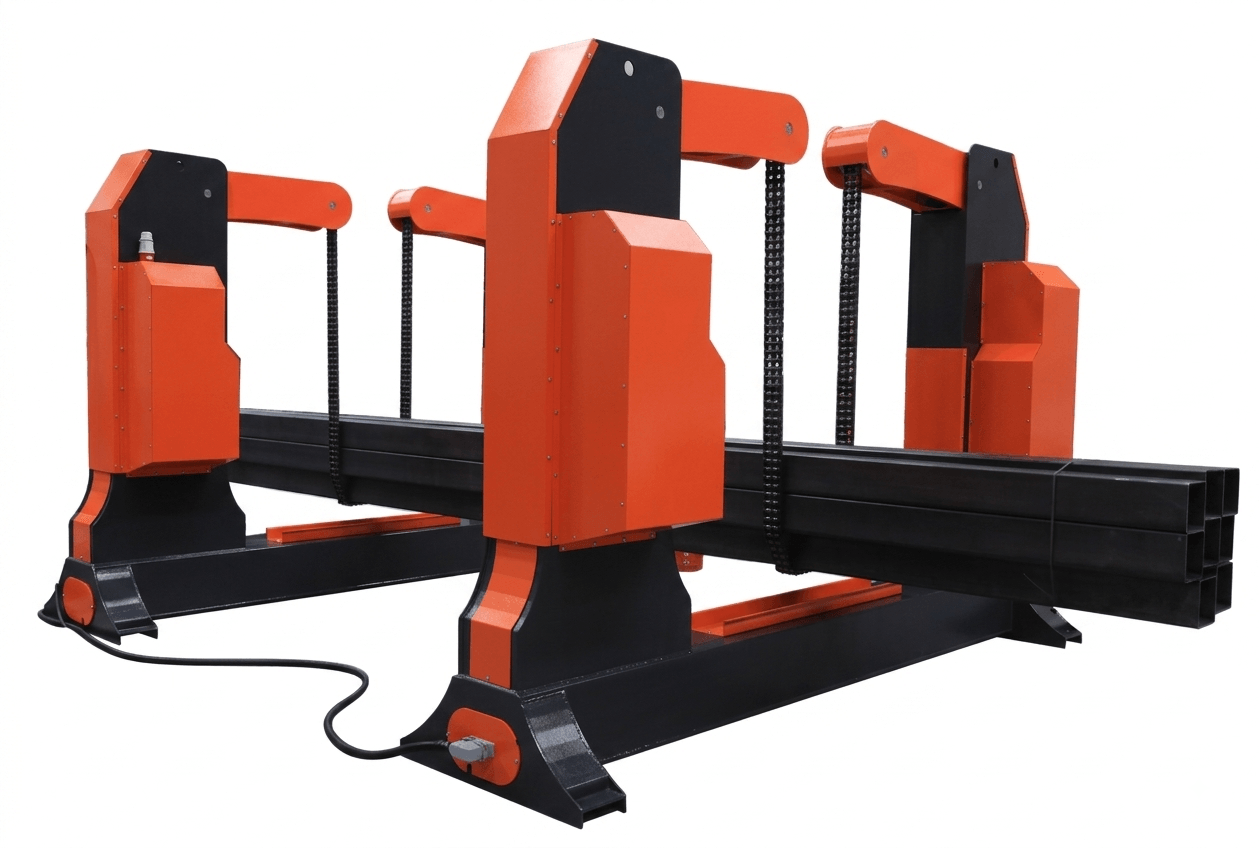

Chain Rotators
Compact & Durable Design: Built with robust converter bodies and walking rails engineered specifically for heavy structural beams.
Versatile Workpiece Handling: Accommodates various shapes and sizes of chassis, box beams, structural steel profiles, and built-up beams.
Effortless Positioning: Enables smooth 360-degree rotation and precise angle control for optimal down-hand welding access.
Controlled Up/Down Movement: Simple operator control allows easy height adjustment and secure stopping at any desired angle.
Time & Quality Optimization: Significantly reduces material handling time while ensuring consistent, high-precision weld quality.

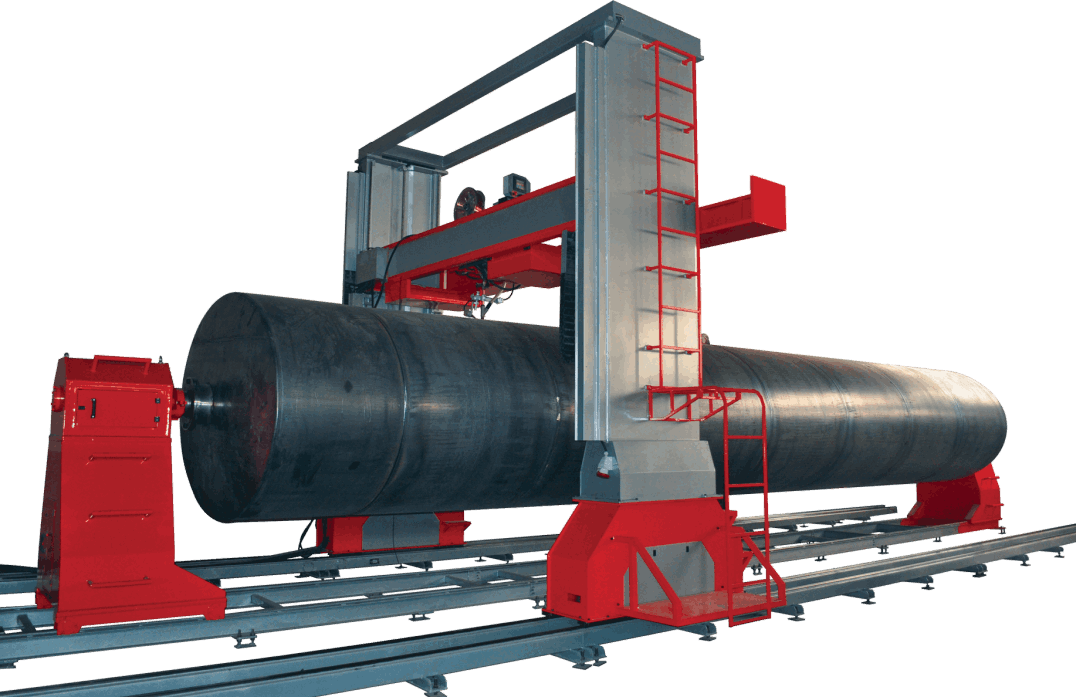

Eliptical Bridge System Welding Machine
Multi-Shape Tank Welding: Designed for precise circular and perimeter welding on elliptical, square, classic, double-D, and trapezoidal silos, tanks, and transmixers.
Geometrically Independent Precision: Advanced bridge tracking achieves uniform, X-ray quality welds regardless of the tank’s complex geometric shape, thickness, or height.
Versatile Diameter Capacity: Easily adapts to a wide range of vessel sizes and diameters for diverse industrial storage applications.
High-Quality Weld Seams: Delivers flawless, high-strength structural joints compliant with strict pressure vessel standards.
Automated Torch Guidance: Features intelligent tracking to maintain consistent arc distance and speed around non-circular profiles

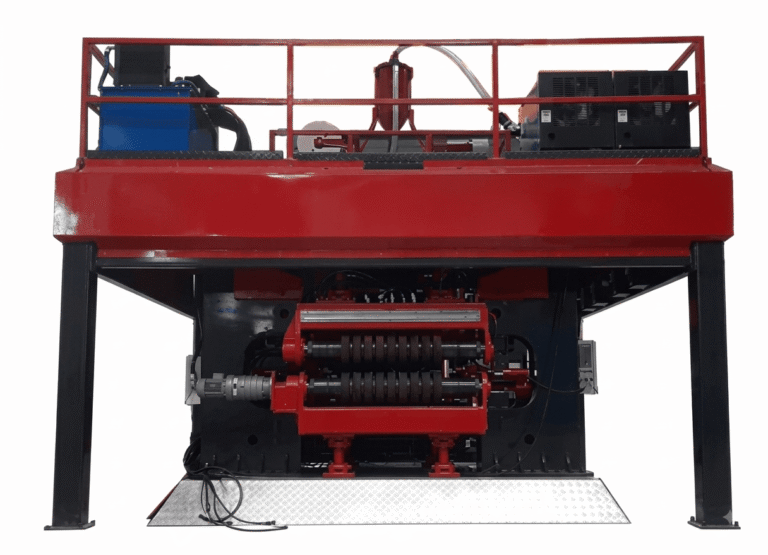

Membrane Welding Line
Specialized Blade & Pipe Welding: Engineered specifically for joining flat blades and pipes of various diameters in membrane wall manufacturing.
Fixed Head & Moving Workpiece System: Features stationary high-precision welding heads while the structural panel feeds smoothly through the line.
Automated Dimension Positioning: Automatically adjusts torch positions based on pipe and bar dimensions entered into the operator interface.
Consistent Weld Alignment: Ensures exact spacing and high-strength weld seams across long, continuous membrane panel runs.
High-Efficiency Production: Streamlines complex boiler and heat exchanger panel fabrication with minimal manual setup.

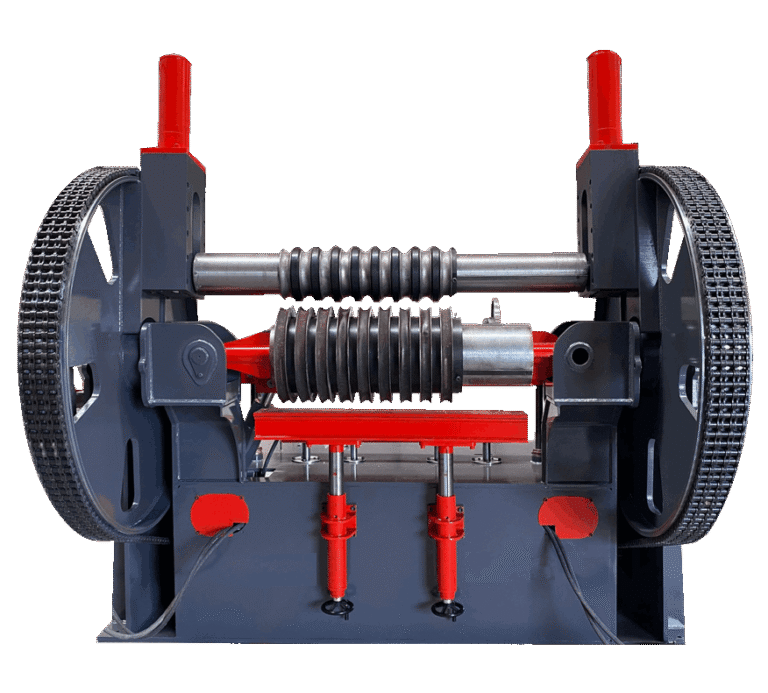

Membrane Panel Bending Machine
Precision Angle Bending: Specially engineered to bend fully welded membrane pipe panels to exact target angles without structural deformation.
Heavy-Duty Hydraulic Power: Delivers uniform bending force along the entire panel width for smooth, consistent radius curves.
Boiler & Tank Fabrication: Ideal for custom boiler wall, heat exchanger, and industrial vessel panel manufacturing.
High Structural Integrity: Protects pre-welded joints and pipe profiles from cracking or stress failure during the bending process.
User-Friendly Control: Allows operators to easily program and adjust precise bending angles and operational parameters.

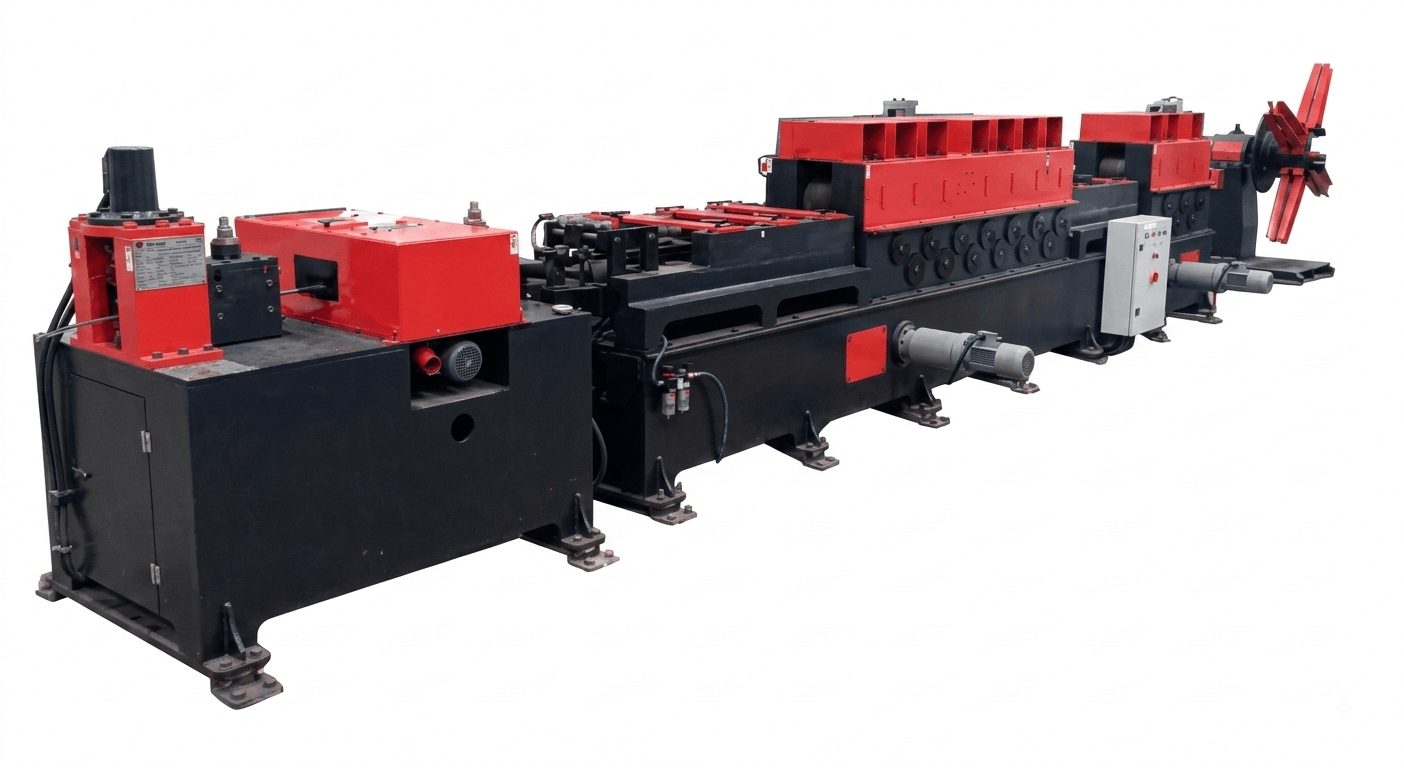

Plate Calibration Machine
Coil Straightening & Uncoiling: Efficiently uncoils and flattens continuous metal strip/plate (lama) materials into precise linear forms.
High Precision Calibration: Calibrates flat bars and panel blades down to fine $\pm 0.1\text{ mm}$ tolerances.
Automated Cut-to-Length: Precisely cuts calibrated plates and blades to custom target lengths for seamless downstream panel assembly.
Boiler Panel Preparation: Specifically optimized for preparing perfectly dimensioned blades required in membrane wall manufacturing.
Consistent Operational Speed: Ensures continuous material feeding with uniform sizing accuracy to boost overall shop output.
Storage Tank Welding System
Automated Horizontal Girth Welding: Specially designed for high-efficiency Submerged Arc Welding (SAW) on horizontal circular tank seams.
Single & Double-Sided Options: Available in single-side or dual-side configurations to meet specific site and speed requirements.
Versatile Frame Types: Offers narrow, standard, and lightweight models to suit diverse shell heights and workspace limitations.
Custom Site Adaptability: Can be tailored and custom-engineered to match specific field installation environments and job site conditions.
X-Ray Quality Weld Seams: Delivers uniform, high-penetration structural welds essential for large-scale storage tanks and pressure vessels.
Mini Storage Tank Welding System
Horizontal Circumferential Welding: Engineered for high-efficiency Submerged Arc Welding (SAW) on the horizontal seams of storage tanks.
Jacking System Integration: Operates seamlessly with hydraulic cylinders to weld lower shell courses as the tank structure is lifted.
Thin Plate Capability: Specialized designs capable of precise, high-quality welding on plates as thin as 6 mm.
Custom Site Adaptability: Fully customizable layout to fit specific field installation environments and job site constraints.
Compact & Reliable Design: Delivers X-ray quality circumferential weld seams with a smaller, more versatile equipment footprint.
Circular Welding Machine
Versatile Circular Welding: Designed for precise circular, circumferential, and boxing welding of round components.
Wide Diameter Range: Accommodates a broad range of cylindrical workpieces from a minimum of 10 mm up to 750 mm in diameter.
High Efficiency & Productivity: Optimizes torch positioning and motion to deliver near 100% welding efficiency across all systems.
Single-Operator Control: User-friendly design allows a single operator to manage operations effortlessly, reducing labor costs.
Time-Saving Automation: Ensures consistent, high-quality weld seams while significantly shortening overall production cycles.
Longitudinal and Cup Welding System
Versatile Longitudinal Welding: Designed for precise linear seams on cylindrical, conical, and rectangular bent workpieces, as well as flat sheet metals.
Automated Cap & Sleeve Welding: Automatically executes high-precision welds for sleeves and caps onto dished ends, vessels, and main bodies.
Ideal for Pressure Vessels: Purpose-built for manufacturers of hydraulic cylinders, boilers, water heaters, and heavy pressure tanks.
High-Quality Weld Seams: Ensures continuous, leak-proof structural joints across diverse geometries and material thicknesses.
Optimized Fabrication Speed: Reduces manual setup times and labor costs while delivering consistent, repeatable welding quality.

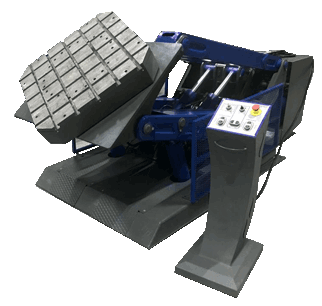

Welding Positioner
360° Rotation & Angular Tilt: Flexible table design allows smooth rotation and precise angular positioning for optimal down-hand welding.
Hydraulic Height Adjustment: Enables smooth vertical elevation adjustments, allowing operators to maintain ideal, ergonomic working heights.
Versatile Workpiece Support: Easily handles structural components, pipes, and custom fabrications of various shapes and dimensions.
Enhanced Safety & Crane Independence: Reduces the need for overhead cranes or forklift turns during fit-up and welding.
Increased Productivity: Accelerates both automatic and manual welding workflows while ensuring high, repeatable seam quality.
Why Our Products
We deliver high-precision, heavy-duty industrial machinery engineered for maximum efficiency, durability, and craftsmanship. Backed by 25 years of industry experience and trusted by clients worldwide, our products ensure seamless operation, reduced downtime, and exceptional metalworking performance for your facility.
